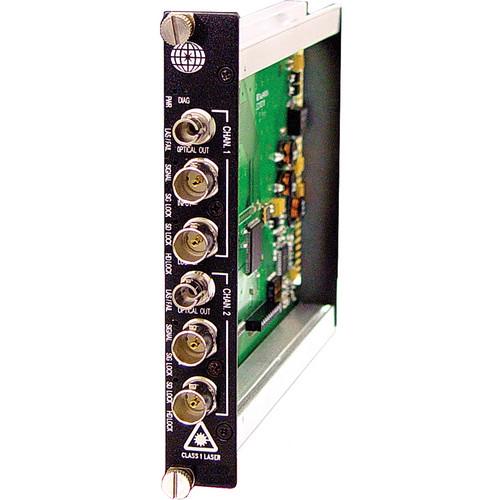

User Manual for Meridian Technologies SX-1HG-3ST 1-Channel Bi-Directional Video Transmitter Click to enlarge the picture
Contents of the user manual for the Meridian Technologies SX-1HG-3ST 1-Channel Bi-Directional Video
- Product category: Video Extenders & Repeaters Meridian Technologies
- Brand: Meridian Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Meridian Technologies Video Extenders & Repeaters
|
User manual for the Meridian Technologies SX-1HG-3ST 1-Channel Bi-Directional Video contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Meridian Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Meridian Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Meridian Technologies product will considerably shorten its lifespan!
|
Product description The SX-1HG-3ST 1-Channel Bi-Directional Video Transmitter from Meridian Technologies features a built-in re-clocker and transmits multi-rate 3G-SDI videos. This serial digital video transceiver provides broadcast-quality transmission of the industry standard range of digital video data rates. It supports one, bi-directional channel of 3G-SDI video over one fiber in each direction. This rack-mountable card transmits and receives real-time video. The built-in re-clocker supports 3R (Retiming, Reshaping, Regenerate) functions and dual buffered outputs. One buffered output can be set as a time base (clock).
This transmitter supports buffered loop-through, which ensures maximum performance over long distances. No video compression is utilized. It supports SMPTE bidirectional 292M, 310M, 259M and 344M compliant digital video data rates over one multimode or single mode fiber for each channel. No user adjustments are needed, thus ensuring fast deployment and setup with broadcast quality results. it can transmit and receive on both multi-mode & single-mode fibers. This enables you to convert the type of fiber in mid span. - Bi-directional transmission of multi-rate SDI / HD-SDI / 3G-SDI (19 Mbps to 2.97Gbps (3G)) over two fibers
- Built in re-clocker on TX/RX
- Real-time, uncompressed video transmission
- Supports both singlemode and multimode fibers
- Supports 19.4 Mbps (SMPTE 310M), 143 To 540 Mbps SMPTE 259M/344M, 1.485 Gbps SMPTE 292M HDTV, DVB-ASI at 270 Mbps, 2.97Gbps (3G) SMPTE 424M, and SMPTE 305M SDTI rates
- Error-free pathological pattern performance
- Supports embedded audio and metadata
- Supports distances in excess of 25 km
- LED indicators for power, receiver optical power, transmitter video signal present, and laser over current
- Wide Dynamic Range eliminates need for optical attenuators
- Requires no user adjustments
In the Box Meridian Technologies SX-1HG-3ST 1-Channel Bi-Directional Video Transmitter Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Meridian Technologies SX-1HG-3ST 1-Channel Bi-Directional Video Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMeridian Technologies SX-1HG-3ST Specs | | | Formats | 19.4 Mbps (SMPTE 310M)
143 To 540 Mbps SMPTE 259M/344M
1.485 Gbps SMPTE 292M HDTV
DVB-ASI at 270 Mbps
2.97 Gbps (3G) SMPTE 424M
SMPTE 305M SDTI rates
0.8 Vpp, 1.0 Vpp maximum | | Nominal Level | 19 Mbps to 1.5 Gbps | | Data Rate | 75 Ω | | Impedance | Unity | | Gain | AC | | Coupling | Input: > 15 dB | | Return Loss | < 0.2 UI | | Jitter | Automatic 0 to 70 m @ 1.5 Gbps (Pattological Data Pattern) | | Cable Equalization | 10 | | Bit Error Rate | 0 to -20 dBm | | | | Video | 75 Ω BNC (Gold center pin) | | | | Fiber type | Singlemode (FP Laser) 9 / 125 um | | Optical Output | -3 dBm | | Receiver Sensitivity | -19 dBm | | Optical Budget | 16 dBm | | Wavelength | 1310 nm | | Connector | ST (Multimode connector) | | Range | Optical Dynamic: 20 dB | | | | LEDs | 1 Green power on ( TX & RX )
1 Red laser over current ( TX )
4 Green Signal power level ( RX )
1 Green signal present ( TX )
1 Green signal lock (TX)
1 Green SDI present (TX)
1 Green HD-SDI present (TX) | | | | Operating Temperature | -13 to 140°F (-25 to 60°C) | | Storage Temperature | -67 to 185°F (-55 to 85°C) | | Relative Humidity | 0 to 95% non-condensing | | | | Quality | MTBF: > 200,000 hours @ Ground Fix on single channel 35°C per MIL217F | | Number of Slots | 1 | | Dimensions (L x W x D) | 6.30 x 5.00 x 0.80" (160.02 x 127.00 x 20.32 mm) (card only) | | Weight | 16.00 oz (453.59 g) | | | | Package Weight | 1.5 lb | | Box Dimensions (LxWxH) | 10.0 x 7.0 x 3.0" |
