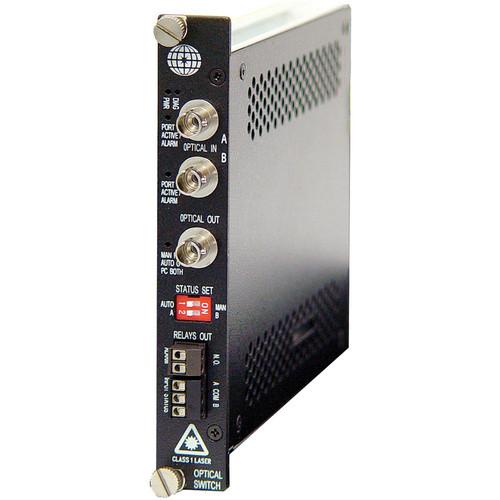

User Manual for Meridian Technologies SX-2FX-SMST 2-Channel Fiber Protection Switch Click to enlarge the picture
Contents of the user manual for the Meridian Technologies SX-2FX-SMST 2-Channel Fiber Protection
- Product category: Video Extenders & Repeaters Meridian Technologies
- Brand: Meridian Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Meridian Technologies Video Extenders & Repeaters
|
User manual for the Meridian Technologies SX-2FX-SMST 2-Channel Fiber Protection contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Meridian Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Meridian Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Meridian Technologies product will considerably shorten its lifespan!
|
Product description The Meridian Technologies SX-2FX-SMST 2-Channel Fiber Protection Switch (SM/ST Connector) is an A/B protection switch card that provides automatic or manual switching between 2 active fibers for improved fiber network security. The switch is usable with bi-directional communication systems such as camera PTZ control and videoconferencing system.
Typically used at the receiving or head-end side, the SX-2FX-SMST device automatically switches the transmission path to the redundant fiber in the event of a main fiber break in less than 10 micro seconds. Automatic switching ensures uninterrupted data transmission even in case of a loss of optical signal in 1 channel. The switch can be manually overridden from its front panel to select one of the fiber paths for maximizing the optical power budget available in the network.
Equipped with indicators on the front panel, the switch indicates the status of each of the input fibers as well as the switch position. This latching switch can retain its state during power failures and an internal microcontroller ensures that the device does not switch to the opposite state when the power returns.
The PC-based SpectraSmart network management and remote diagnostic software system helps monitor the operating parameters of the protection switch card. Using the software, you can remotely select the optical transmission path as well as interchange the switching threshold among other performance monitors. - Used for 2-way optical communication such as camera PTZ control and videoconferencing system
- A/B protection switch card provides automatic or manual switching between 2 active fibers for improved fiber network security
- Ensures uninterrupted data transmission even in case of a loss of optical signal in 1 channel
- Automatically switches the transmission path to the redundant fiber in the event of a main fiber break in less than 10 micro seconds
- Switch can be manually overridden from its front panel to select one of the fiber paths for maximizing the optical power budget available in the network
- Indicators on the front panel indicate the status of each of the input fibers as well as the switch position
- Latching switch retains its state during power failures and an internal microcontroller ensures that the device does not switch to the opposite state when the power returns
- PC-based SpectraSmart network management and remote diagnostic software system helps monitor the operating parameters of the protection switch card
- Software allows you to remotely select the optical transmission path as well as interchange the switching threshold among other performance monitors
In the Box Meridian Technologies SX-2FX-SMST 2-Channel Fiber Protection Switch (SM/ST Connector) 10-year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Meridian Technologies SX-2FX-SMST 2-Channel Fiber Protection Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMeridian Technologies SX-2FX-SM-ST Specs | | | Wavelength | 1260-1610 nm | | Insertion Loss | 1.5 dB (typical), 2.5 dB (max) | | Return Loss | 50 dB | | Channel Isolation | 55dB | | Repeatability | +/- 0.02dB (typical) | | Switching Speed | 5 msec (typical), 10msec (max) | | Optical Input | -35 to +5dBm | | | | Alarm | Screw Terminal | | Optical | FC or ST (three connectors) | | Operating Temperature | -29.2 to 165.2º F (-34º to +74º C) | | Storage Temperature | -67 to 185º C (-55º to +85º C) | | Relative Humidity | 0 to 95% Non-condensing | | Dimensions (LxWxH) | 6.3 x 5 x 0.8" (160 x 127 x 20 mm) | | Weight | 1 lb (450 g) | | | | Package Weight | 1.5 lb | | Box Dimensions (LxWxH) | 10.0 x 7.0 x 3.0" |
