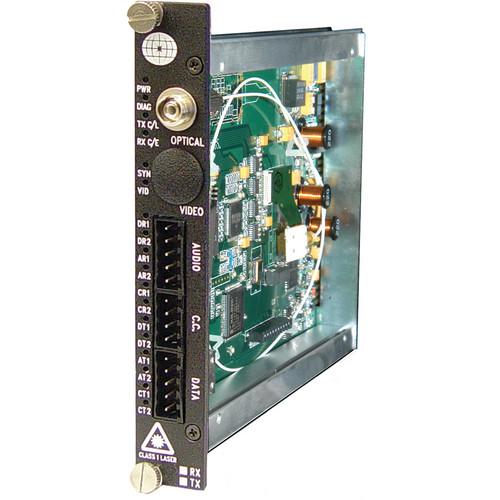

Product description The SXB-2A-5 Fiber Transmission System (Transceiver B) from Meridian Technologies incorporates an all-digital encoding technology that supports two bidirectional audio channels over one optical fiber. This model uses singlemode fiber. It is well suited for use in intelligent transportation systems, security & surveillance work, access control, among many other applications and settings.Local indicators provide a visual indication of the status of each audio channel. 3-pin terminal blocks are used for connection of the audio channel interfaces. This series is also compatible with Meridian's SpectraSmart Network management and diagnostic PC-based system. The DigiSlim product family is available as rack mount cards and modules that can be installed in any of Meridian's desk chassis or in 19" racking frames. This system can be configured in either star (module to rack) or trunking (rack to rack) configurations. These systems can be transformed in to a standalone module by using SR-500/S (standard configuration) or SR-1000/S frames. - The unit supports bidirectional audio transmission
- This model is a laser-based system that uses singlemode fiber
- This model uses ST or FC fiber connectors
- It features 24-bit native digital encoding
- It uses Surface Mount Technology (SMT) for high reliability and repeatability
- This solution is designed to be reliable and repeatable
- Local LED indicators provide visual cues for system status
- System diagnostics are available for performance parameters
- The card is hot-swappable
- The laser features biased photo-detector circuitry for stable optical output over the full temperature range
- It meets NEMA TS1/TS2 and CALTRANS specifications
- It uses internal switching power supplies
- Automatically resettable solid-state current limiters are included on all power lines to provide equipment protection
- A wide optical dynamic range means optical attenuators are never needed
- Screw terminals are available for audio
In the Box Meridian Technologies SXB-2A-5 Fiber Transmission System (Transceiver B) Ten-Year Warranty against Defects in Material & Workmanship (from Original Date of Shipment) Table of Contents
|
Upload User Manual
Have you got an user manual for the Meridian Technologies SXB-2A-5 Fiber Transmission System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMeridian Technologies SXB-2A-5FC Specs | Audio | I/O Impedance: 600 Ohm (Balanced), 47 kOhm (Unbalanced)
Frequency Response: 10Hz to 20KHz
SNR: >90dB (Weighted) @ 1KHz
In/Out Level: -8 to +8dBm (4Vp-p max.)
Total Harmonic Distortion: <0.01% @ 1KHz
Resolution: 24 Bi | | Optical | Fiber Type/Size (um): Singlemode (FP Laser) 9/125
Optical Output (dBm): -5
Receiver Sensitivity (dBm): -26
Optical Budget (dB): 21
Wavelength (nm): 1310/1550
Optical Connector: ST, FC
Optical Dynamic Range (dB): 24
Fiber Data Rate: 250Mbps | | Connectors | Video: 75 Ohm BNC (Gold Center Pin)
Optical: ST, FC
Audio/Contact Closures: 14-pin Screw Terminals | | Indicators | (1) Green: Power On
(1) Bi-Color: TX Carrier / Laser Over Current
(1) Bi-Color: RX Carrier - Present / Error
(1) Bi-Color: Audio Present / Overmodulation | | Life | >170,000 hours @ Ground Fix
35C degrees per MIL217F | | Power | 6W | | Dimensions (HxWxD) | 0.8 x 6.5 x 5" (20 x 160 x 127mm)
(1) slot | | Weight | 1 lbs (0.45kg) | | | | Package Weight | 1.5 lb | | Box Dimensions (LxWxH) | 10.0 x 7.0 x 3.0" |
