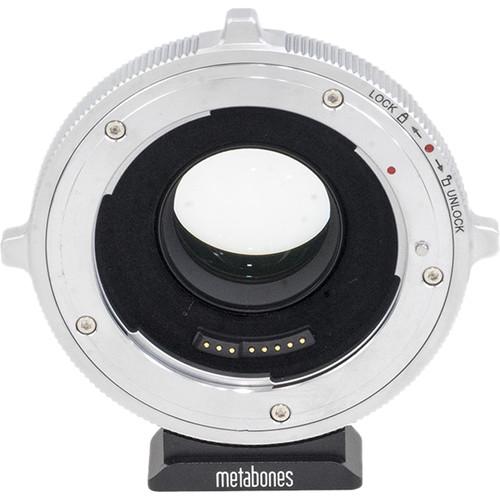

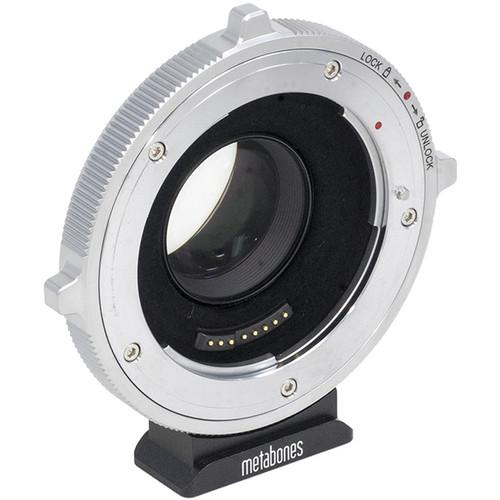

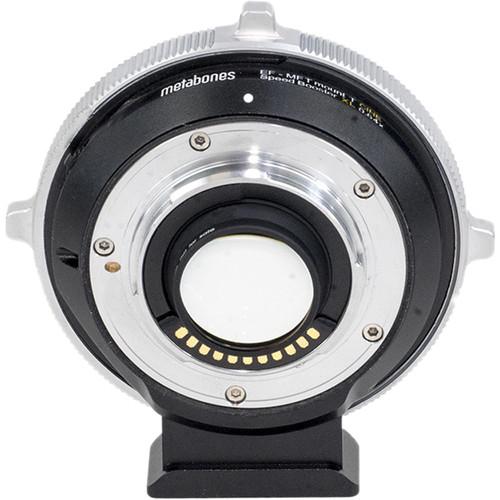

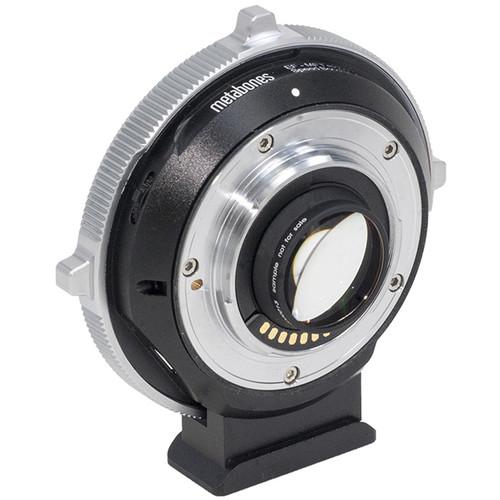

User Manual for Metabones Canon EF Lens to Micro Four Thirds Camera T CINE Speed Booster XL 0.64x Click to enlarge the picture
Contents of the user manual for the Metabones Canon EF Lens to Micro
- Product category: Lens Mount Adapters Metabones
- Brand: Metabones
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Metabones Lens Mount Adapters
 |
User manual for the Metabones Canon EF Lens to Micro contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Metabones product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Metabones user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Metabones product will considerably shorten its lifespan!
|
Product description Boost the performance of your full-frame Canon EF-mount lenses when mounted to your Micro Four Thirds camera with this fifth-generation T CINE Speed Booster XL 0.64x from Metabones. This cinema-styled electronic adapter features a positive-lock lens mount that will ensure that your adapted lenses are secure and uses optics to reduce the effects of crop factor by making the lens 0.64x wider and simultaneously increasing the maximum aperture by about 1-1/3 stop. Further improving on previous generations of Smart Adapters, this fifth-generation model now features a rubber gasket to protect the camera's mount from dust and moisture.
This adapter is equipped with numerous capabilities thanks to the use of a high-performance processor. The features include support for autofocus as well as the ability to control the aperture from the camera body. Smooth iris effects are possible as well on select lenses and 5-axis stabilization is available thanks to communication of information with supported lenses. Also, it enables electronic (focus-by-wire) manual focusing, transmits Exif data to the camera, and works with in-lens image stabilization. Additionally, distance and zoom is displayed on certain camcorders and mirrorless cameras and Cinema EOS lenses are supported when running the adapter off an external 5 VDC power supply via the micro-USB port.
Beyond electronic communication, the adapter has many physical advantages as well, such as a black felt flocking on the inside of the adapter that prevents reflections. For larger lenses, there is a removable Arca-type-compatible tripod foot with a 1/4"-20 thread on the base. - Allows users to adapt a full-frame Canon EF-mount lens to a Micro Four Thirds camera.
- Optics are used with a 0.64x magnification to reduce crop factor from 2x to 1.28x and simultaneously improve the maximum aperture by one stop.
- An advanced optical design with 6 elements in 4 groups that will help improve sharpness and performance of adapted lenses.
- Positive-lock lens mount provides extra security when attaching large lenses.
- Receives power from camera body or optional 5 VDC power supply via micro-USB port.
- Electronic contacts permit transmission of data between the lens and camera enabling autofocus, auto exposure, image stabilization, aperture control from the camera body, saving Exif information, and more.
- Smooth iris support with select Canon (2009 and later), Tamron (SP series 2013 and later), and Sigma (2016 and later) lenses.
- Enables electronic manual focusing on lenses, such as the Canon EF 85mm f/1.2L II, that use a focus-by-wire system.
- Support for distance and zoom display.
- Internal felt flocking prevents reflections.
- Covers 4K video area on GH4 when using APS-C format lenses.
- Cinema EOS lenses are supported when an external 5 VDC power supply is used, including autofocus, auto iris, and servo zoom.

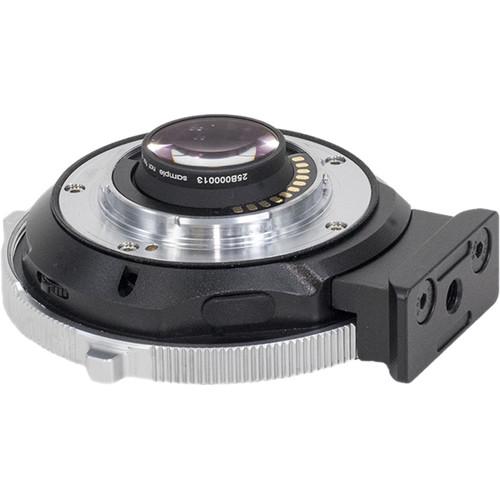

- Removable Arca-type compatible tripod foot with 1/4"-20 thread.
In the Box Metabones Canon EF Lens to Micro Four Thirds Camera T CINE Speed Booster XL 0.64x (Fifth Generation) Front Cap Rear Cap Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Metabones Canon EF Lens to Micro Four Thirds Camera T CINE Speed Booster XL 0.64x in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMetabones MB_SPEF-M43-BT6 Specs | | | Camera Mount | Micro Four Thirds | | Lens Mount | Canon EF | | Magnification | 0.64x | | Optical Design | 6 Elements in 4 Groups | | | | Package Weight | 0.9 lb | | Box Dimensions (LxWxH) | 4.9 x 4.7 x 2.4" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 83 owners. Add your rating and experience with the product.
