User Manual for Metabones Canon EF to Sony E-Mount T Speed Booster ULTRA II 0.71x Click to enlarge the picture
Contents of the user manual for the Metabones Canon EF to Sony E-Mount
- Product category: Lens Mount Adapters Metabones
- Brand: Metabones
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Metabones Lens Mount Adapters
 |
User manual for the Metabones Canon EF to Sony E-Mount contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Metabones product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Metabones user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Metabones product will considerably shorten its lifespan!
|

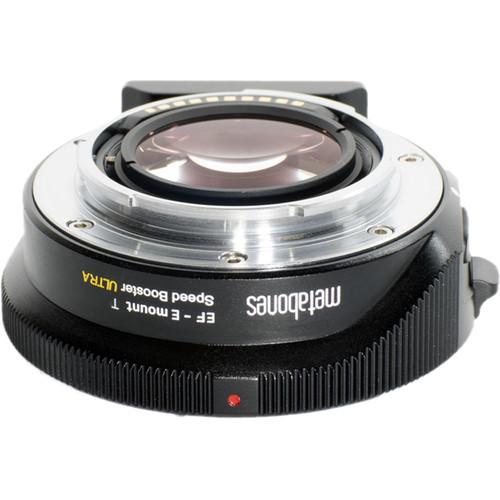

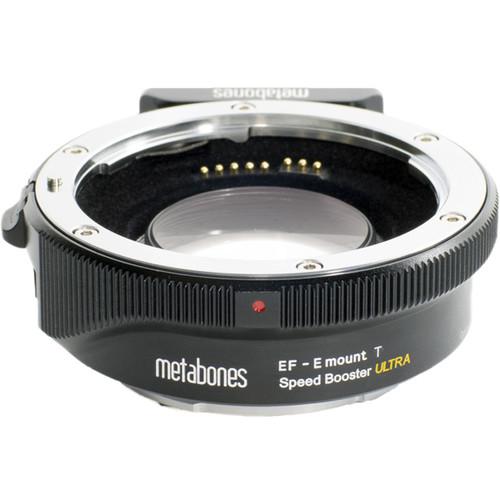

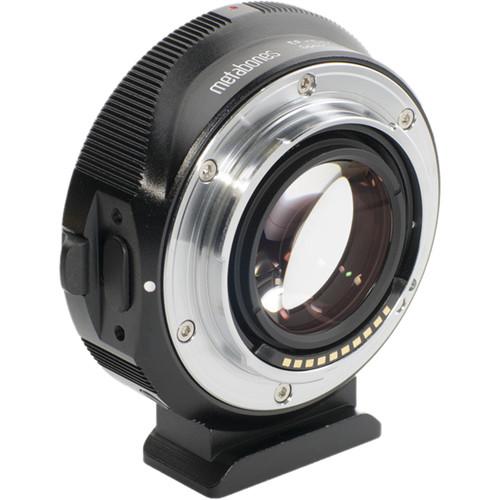

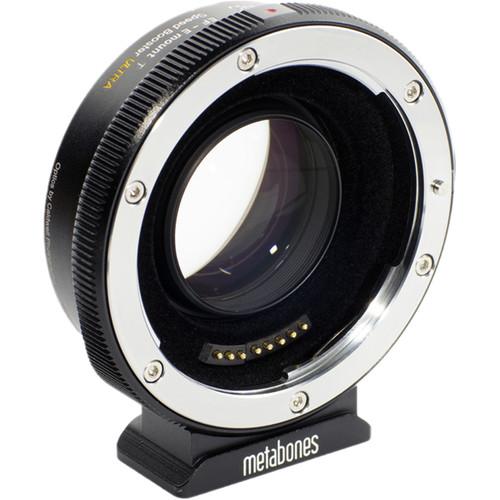

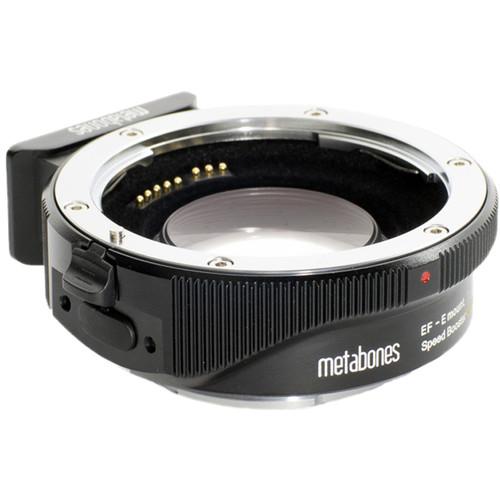

Product description Metabones Reveals Fifth-Generation Smart Adapters Read More Realize the full potential of your full-frame Canon EF-Mount glass on your APS-C and Super35 format Sony E-Mount cameras with this Metabones Canon EF to Sony E-Mount T Speed Booster ULTRA II 0.71x. Utilizing advanced optics, this adapter will increase the apparent angle of view of your full-frame lens by 0.71x, effectively combating the crop factor of an APS-C camera. This also increases the apparent sharpness of your image while also increasing the maximum aperture by 1 stop, making your full-frame lens look as if it were mounted on a full-frame camera.
Further improving on previous generations of Smart Adapters, this fifth-generation model now features a rubber gasket to protect the camera's mount from dust and moisture, offers a status notification LED light to check operation modes, and provides a dedicated switch that controls in-body image stabilization of select cameras. Also, this version is compatible with the Sony PXW-FS7 Mark II video camera.
This adapter is equipped with numerous capabilities thanks to the use of a high-performance 32-bit processor. The features include support for both phase-detect and contrast-detect AF systems, as well as the ability to control the aperture from the camera body. Smooth iris effects are possible on select lenses, and 5-axis stabilization is available thanks to communication of distance information with supported lenses. Also, it features a programmable function button, enables electronic (focus-by-wire) manual focusing, transmits EXIF data to the camera, and works with in-lens image stabilization. Additionally, distance and zoom is displayed on certain camcorders and mirrorless cameras, auto magnify can be enabled, and it can automatically switch into APS-C mode, depending on the lens used.
Beyond electronic communication, the adapter has many physical advantages as well, such as a black felt flocking on the inside of the adapter that prevents reflections. For larger lenses, there is a removable Arca-type compatible tripod foot with a 1/4"-20 thread on the base. - Allows users to adapt a full-frame Canon EF-Mount lens to an APS-C/Super35 Sony E-Mount camera, or a full-frame camera in APS-C mode.
- Advanced 5-element in 4-group optical construction uses ultra-high index tantalum-based glass, increasing the angle of view of a full-frame lens by 0.71x, and the maximum aperture by one stop. This effectively compensates for the 1.5x crop factor of APS-C cameras and provides an image like that of a full-frame lens on a full-frame camera.
- Electronic contacts permit transmission of data between the lens and camera enabling autofocus, auto exposure, image stabilization, aperture control from the camera body, saving EXIF information, and more.
- Status notification LED light on the adapter will show the user what mode the adapter is currently in.
- Dedicated switch for controlling in-body image stabilization.
- Programmable function button for rapid access to commonly used settings and features.
- Support for phase-detect AF with the a7R II, a7 II, a6500, and a6300 cameras.
- Compatible with Sony PXW-FS7M2 (Mark II) camera.
- Smooth iris support with select Canon (2009 and later), Tamron (SP series 2013 and later), and Sigma (2016 and later) lenses.
- Enables electronic manual focusing on lenses, such as the Canon EF 85mm f/1.2L II, that use a focus-by-wire system.
- Support for distance and zoom display, auto magnify, and auto APS-C Size Capture settings on select cameras.
- Internal felt flocking prevents reflections.
- Removable Arca-type compatible tripod foot with 1/4"-20 thread.
In the Box Metabones Canon EF to Sony E-Mount T Speed Booster ULTRA II 0.71x (Fifth Generation) Front Cap Rear Cap Tripod Foot Hex Key Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Metabones Canon EF to Sony E-Mount T Speed Booster ULTRA II 0.71x in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMetabones MB_SPEF-E-BT4 Specs | | | Camera Mount | Sony E (APS-C) | | Lens Mount | Canon EF | | Magnification | 0.71x | | Optical Design | 5 Elements in 4 Groups | | | | Package Weight | 0.8 lb | | Box Dimensions (LxWxH) | 4.3 x 4.2 x 2.4" |
