User Manual for Metabones Canon EF to Sony FZ T CINE Smart Adapter Click to enlarge the picture
Contents of the user manual for the Metabones Canon EF to Sony FZ
- Product category: Lens Mount Adapters Metabones
- Brand: Metabones
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Metabones Lens Mount Adapters
 |
User manual for the Metabones Canon EF to Sony FZ contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Metabones product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Metabones user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Metabones product will considerably shorten its lifespan!
|

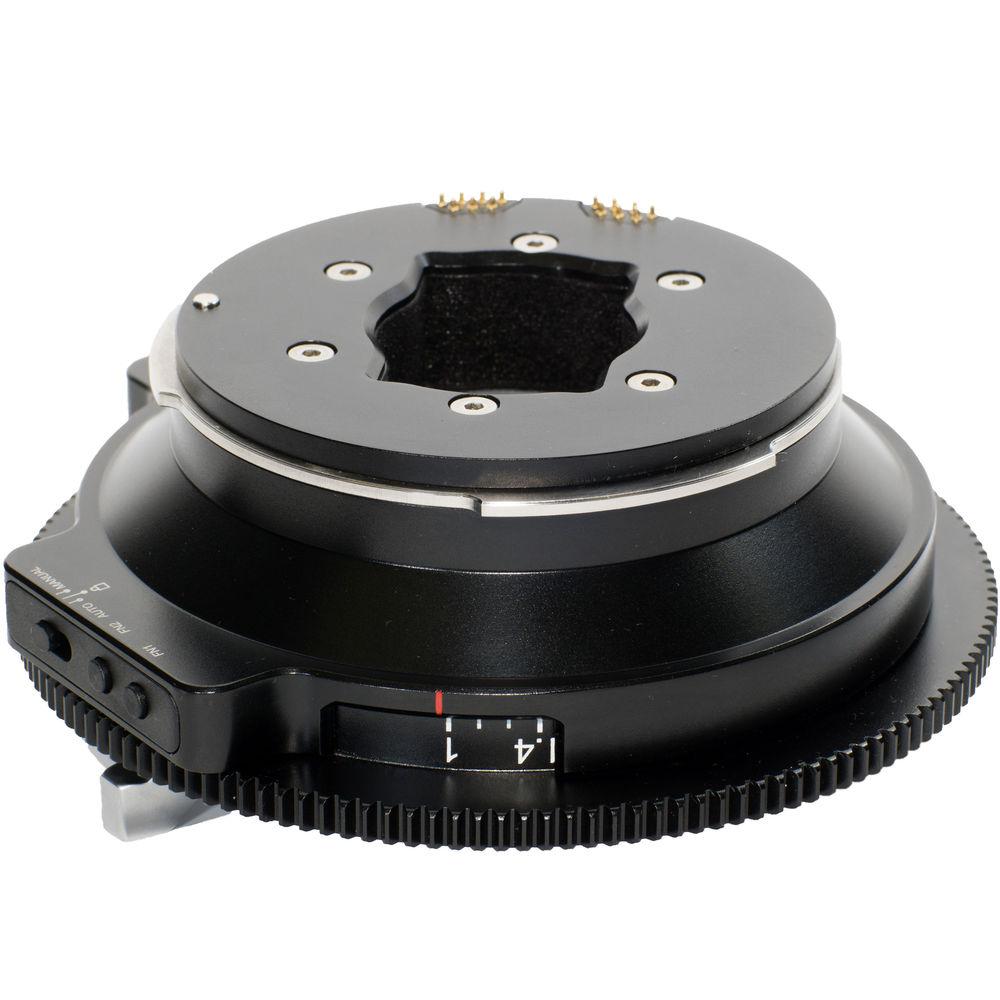

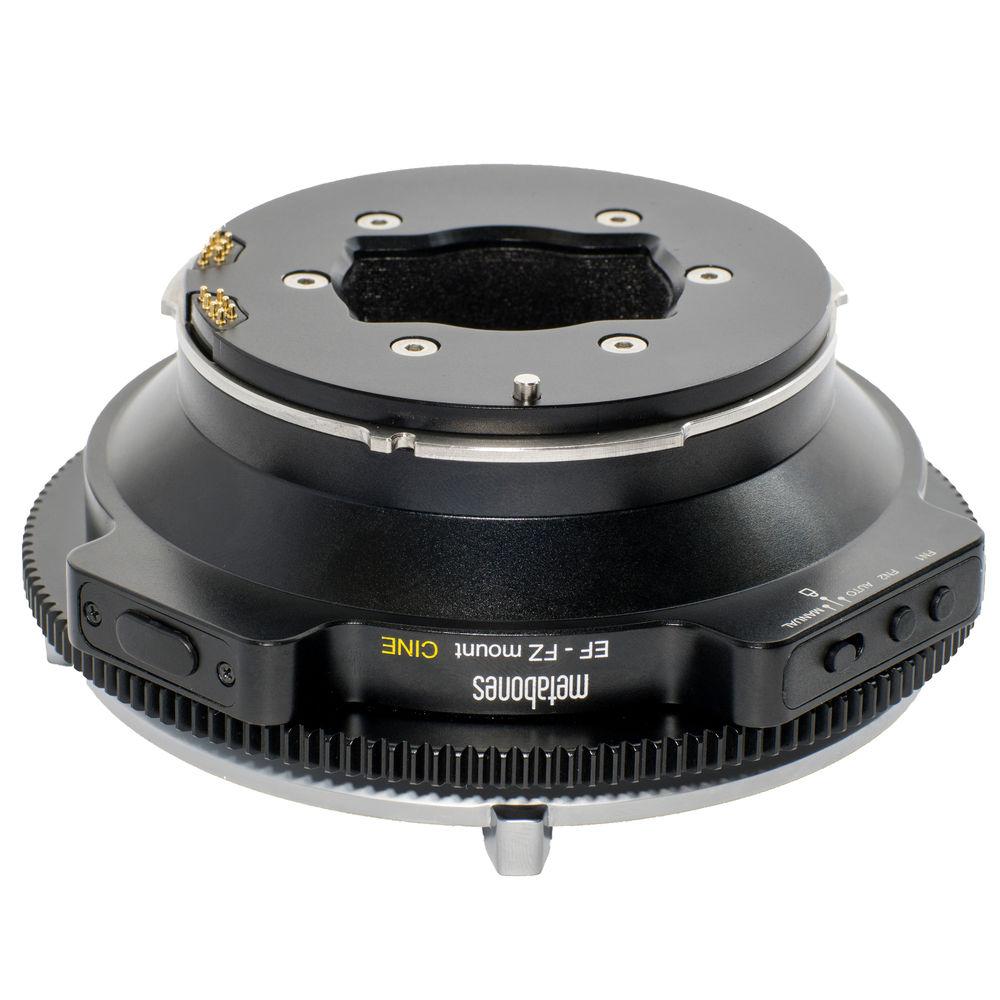

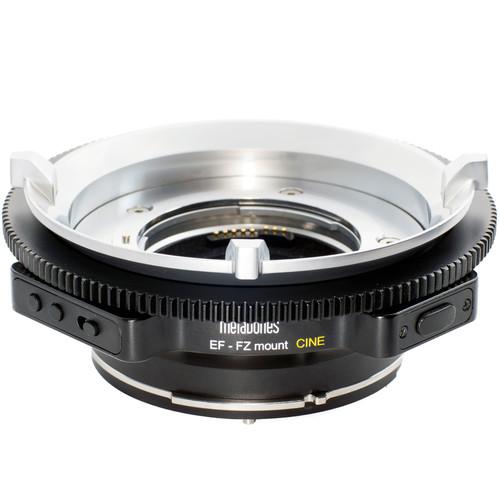

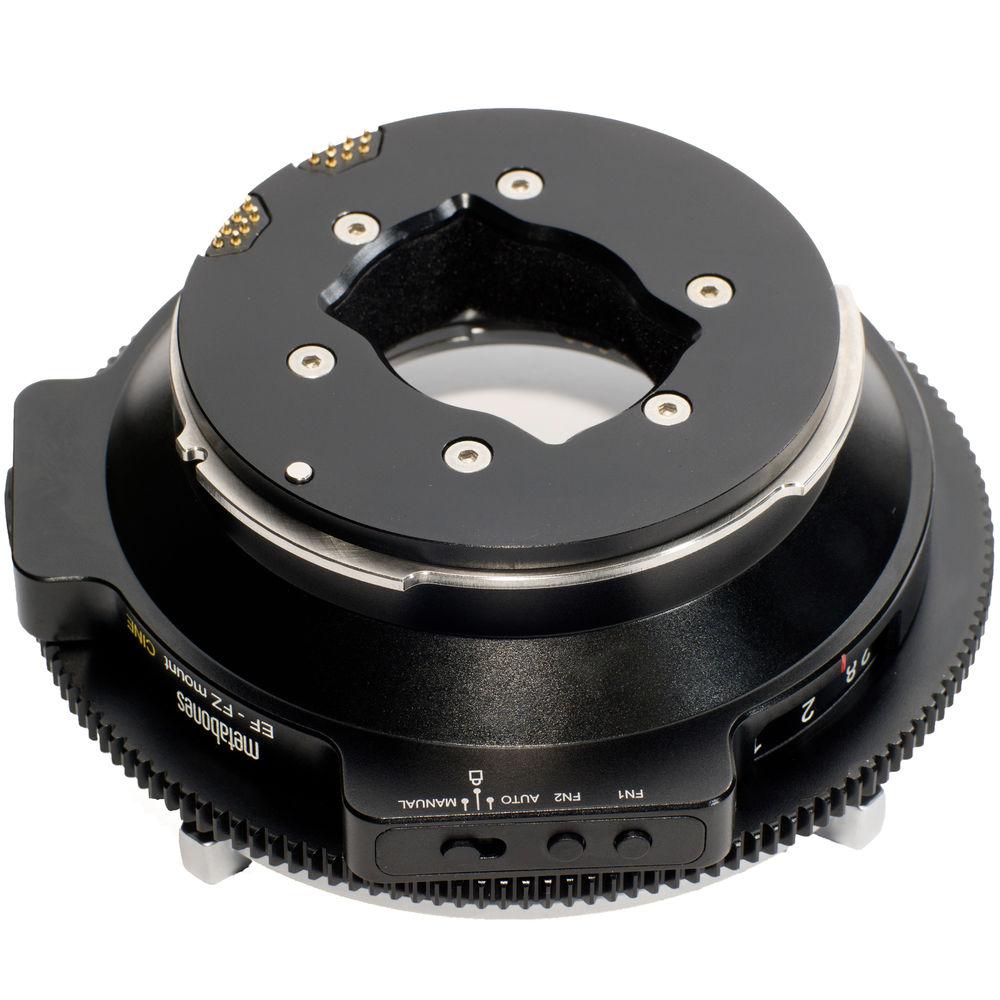

Product description The Canon EF to Sony FZ T CINE Smart Adapter from Metabones allows a Canon EF or EF-S mount lens to be mounted onto a Sony FZ-mount camera, including the F5, and F55. It features precision-machined, chromium-plated brass mounting surfaces on both the lens and camera sides. The adapter is designed to support electronic communication between the camera and lens, allowing image stabilization as well as camera-controlled aperture functions. It also features an assignable function button. If an attached lens is also capable of generating EXIF metadata, the adapter passes that information for the camera to record in its metadata stream.
The adapter features a locking EF mount, providing a sturdy, wiggle-free, solid attachment of the lens to your camera. Just forward of the locking ring is a large cine-style geared iris control ring, which allows you to control the iris of your lens manually if you wish. In addition to the communication to allow your lens to work with an FZ mount camera, the adapter also allows the lens information to be displayed in the camera's viewfinder. The adapter uses the camera to power the lens, and does not require an additional power source. Internal flocking reduces the chance of internal reflections, which can degrade your image. - This CINE Smart adapter allows you to mount a Canon EF mount lens on a camera with a Sony FZ mount, which includes the Sony F5, and F55. The adapter does not contain optics, which means that there is no aperture compensation or image adjustment when using full frame lenses on your camera.
- The adapter passes electronic information between your camera and lenses, preserving the electronic function of your lens, except for autofocus. This allows you to utilize in-lens image stabilization (if supported by your lens), auto iris control, lens EXIF info recorded in the camera's metadata, and display of lens information in the camera's viewfinder.
- The cine-style geared Iris ring on the adapter allows you to manually control the iris, if you wish, or use an optional lens motor to drive the iris.
- The adapter features numerical iris markings that are clear and easy to read. As the adapter allows you to control the iris electronically both manually or by using the camera controls. When working with lenses that have variable apertures as their zoom length changes, the adapter can maintain the aperture you set on the lens as you zoom out (provided you are not shooting wide open).

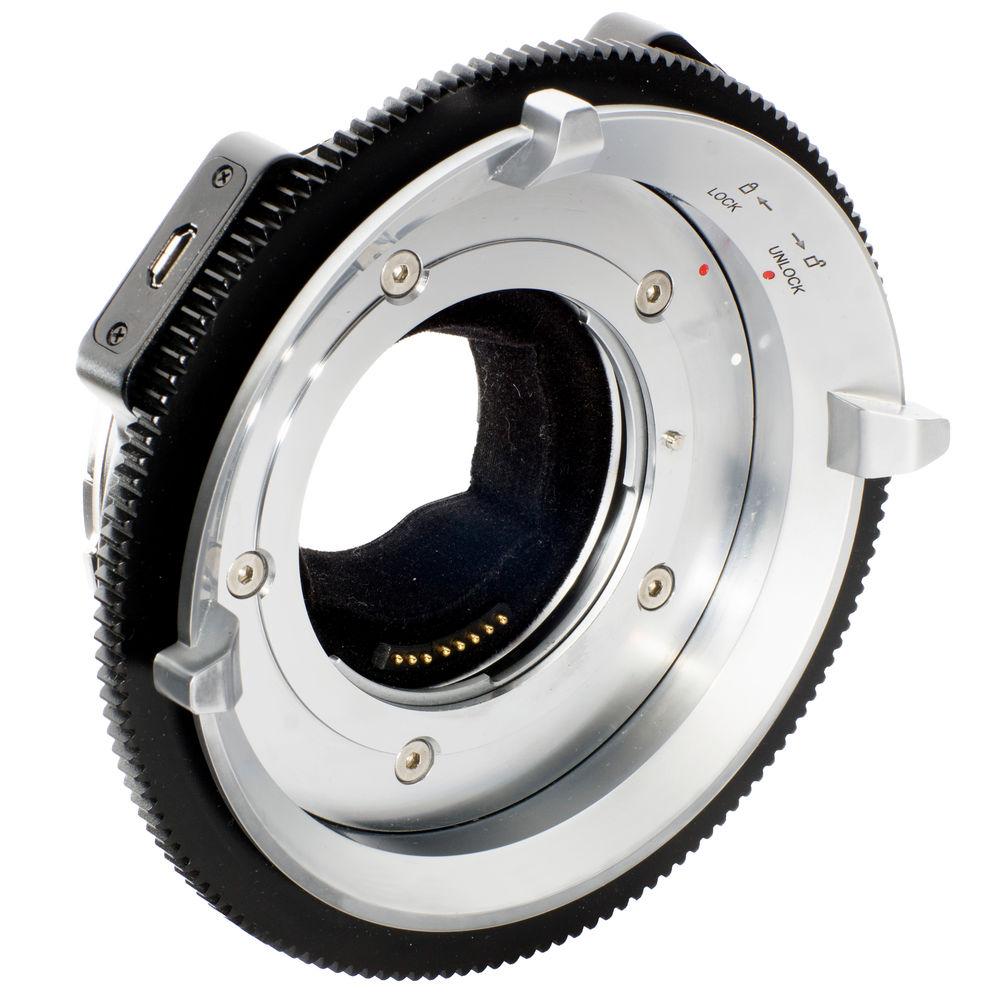

- The lens mount side of the adapter features a locking EF mount that is stronger than and less prone to wobble than the standard EF mount. Both mounting surfaces of the adapter are made from precision-machined brass that has been plated with chromium for a hard finish that is resistant to wear.
In the Box Metabones Canon EF to Sony FZ T CINE Smart Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Metabones Canon EF to Sony FZ T CINE Smart Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMetabones MB_EF-FZ-BT1 Specs | Compatibility | Canon EF or EF-S mount lens to Sony FZ-mount camera | | Compatibility | Camera
Sony CineAlta F5 / F55
Lenses
Canon EF Primes: EF 40/2.8 STM, EF 50/1.2 L USM, EF 50/1.8 II, EF 85/1.2 L II USM, EF 100/2.8 USM, EF 135/2L, EF 200/2.8 L II
Canon EF zooms: EF 28-80/3.5-5.6 II . EF 35-80/4-5.6. EF 70-200/2.8L IS USM II, EF 70-200/4L USM, EF 70-200/4-5.6L IS USM, EF 70-300/4-5.6L IS USM, EF Extender 1.4x III, EF 70-200/4 L USM
Canon EF-S: EF-S 17-35/2.8 IS USM, EF-S 18-55/3.5-5.6 IS II
Sigma: 50/1.4 EX DC HSM, 50/1.4 DG HSM, 17-35/2.8-4 EX DG HSM, 18-35/1.8 DC HSM ART, 18-125/3.8-5.6 DC OS HSM
Tamron: SP 17-50/2.8, SP 24-70/2.8, SP 70-200/2.8
Tokina DX: AT-X PRO SD 11-16/2.8 (IF) DX | | Weight | 25.3 oz / 717.0 g | | | | Package Weight | 2.05 lb | | Box Dimensions (LxWxH) | 5.7 x 5.7 x 3.0" |
