User Manual for Metabones Canon FD Lens to Sony E-Mount Camera Speed Booster ULTRA Click to enlarge the picture
Contents of the user manual for the Metabones Canon FD Lens to Sony
- Product category: Lens Mount Adapters Metabones
- Brand: Metabones
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Metabones Lens Mount Adapters
 |
User manual for the Metabones Canon FD Lens to Sony contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Metabones product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Metabones user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Metabones product will considerably shorten its lifespan!
|

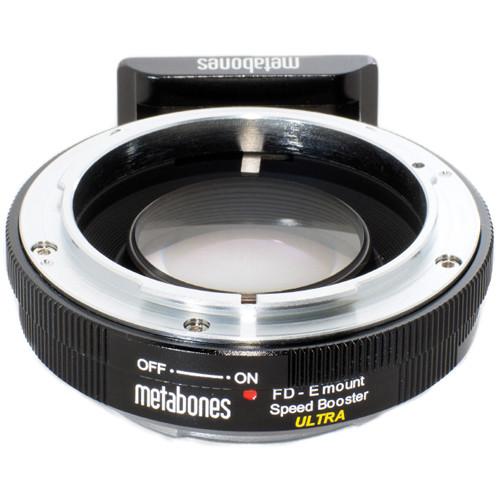

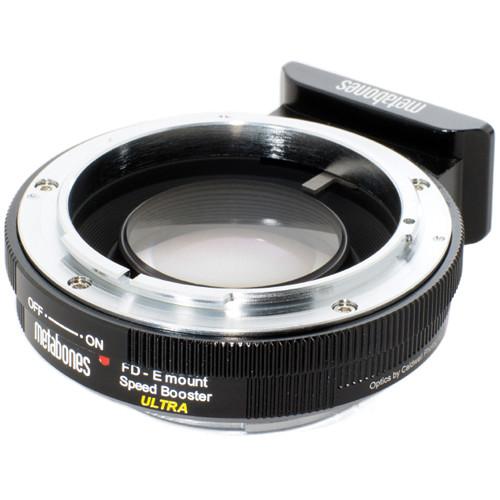

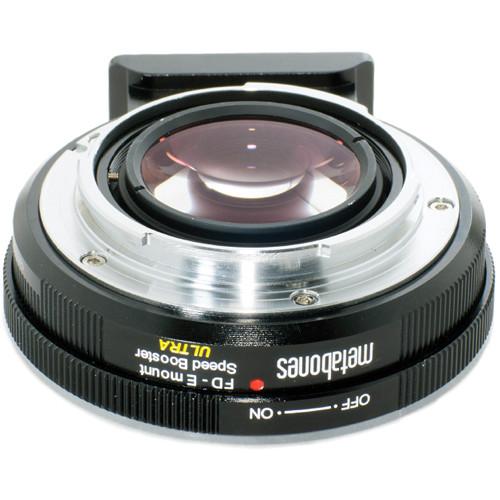

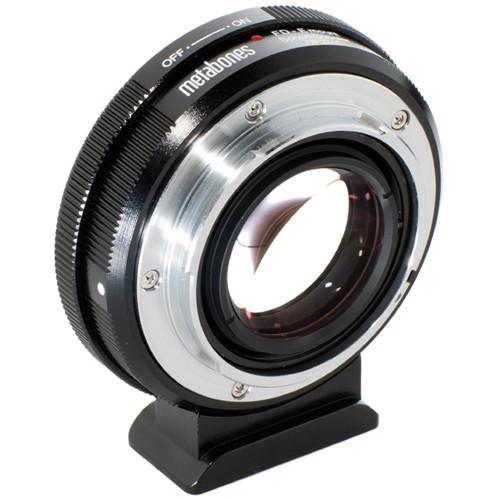

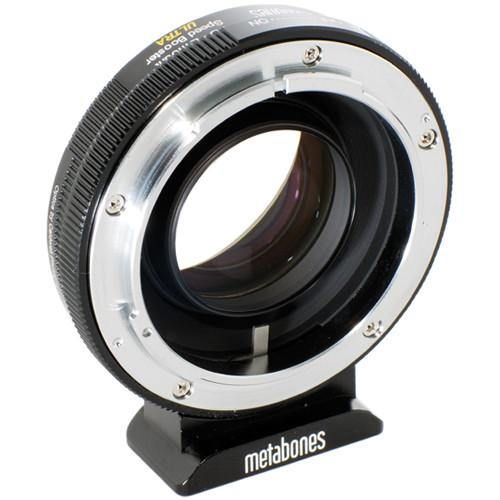

Product description The Canon FD Lens to Sony E-Mount Camera Speed Booster ULTRA from Metabones improves upon the original Metabones Speed Booster with a 5 element/4 group optical design that incorporates ultra-high refractive index tantalum-based glass for improved sharpness and reduced distortion and vignetting. The Speed Booster ULTRA allows a full frame Canon FD lens to be mounted to an APS-C format E-Mount camera and in doing so, increases the angle of view and increases the maximum aperture by approximately one f/stop. When a lens intended for full frame sensors or 35mm film is mounted to a camera with an APS-C sized sensor, it transmits a larger area of light than the smaller sensor was built to accept and therefore the effective angle of view of the lens decreases. The Speed Booster condenses light from the lens and projects it onto the APS-C sensor allowing the sensor to utilize all of the lens' light and effectively reduces the crop factor of and APS-C E-Mount camera from 1.5x to 1.07x, producing a full-frame angle of view with an APS-C sensor. A corresponding increase in the maximum aperture of one f/stop makes the lens more effective in low-light situations and able to create a shallow depth of field. Metabones Speed Boosters are quality made using precision-machined brass with chromium plating on both the camera body and the lens side of the booster in order to ensure smooth mounting, quality aesthetic, and durability. This adapter has a detachable tripod foot that is compatible with Arca Swiss, Markins, and Photo Clam ball heads.Although the lens will fit physically, automatic diaphragm (AE metering), or other auto functions are not retained using this speed booster. These speed boosters are only fully compatible with mirrorless cameras housing APS-C or smaller image sensors. They will physically fit the Sony full frame mirrorless cameras, but the camera must be set in Crop Mode to fully support the speed booster's functions. - Allows a full frame Canon FD lens to be mounted to an E-mount APS-C format camera and in doing so, increases the angle of view and increases the maximum aperture by one f/stop.
- The Speed Booster ULTRA design incorporates ultra-high index tantalum-based optical glass for enhanced optical performance with improved corner sharpness and reduced distortion and vignetting. This glass technology and optical design perform extremely well with professional-grade f/2.8 zoom lenses and high-speed fixed focal length lenses such as a 50mm f/1.2 which will perform as a 35.5mm f/0.9 lens with high contrast and resolution from the center to the edges of the image.
- Precise fit and solid connection - lens has no play, gap or wiggling when mounted on speed booster and no adjustments are required to fit your lens. Both the camera-side and the lens-side of the speed booster are made of brass which is precision-machined and chrome-plated.
- The Speed Booster uses matte-black treatment to keep internal reflection to a minimum in order to maintain the maximum optical quality possible with the lens. The exterior features a black satin surface finish.
- Designed to reach infinity focus while maintaining the correct registration distance required to maintain optical quality of CRC lenses or lenses with floating elements.
- The speed booster features a detachable tripod foot which is compatible with Arca Swiss, Markins, Photo Clam ball heads.
- Although the lens will fit physically, automatic diaphragm (AE metering), or other auto functions are not retained using this speed booster.
In the Box Metabones Canon FD Lens to Sony E-Mount Camera Speed Booster ULTRA Front Cap Rear Cap Detachable Tripod Foot Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Metabones Canon FD Lens to Sony E-Mount Camera Speed Booster ULTRA in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMetabones MB_SPFD-E-BM2 Specs | | | Camera Mount | Sony E (APS-C) | | Lens Mount | Canon FD | | Magnification | 0.71x | | Optical Design | 5 Elements in 4 Groups | | | | Package Weight | 0.8 lb | | Box Dimensions (LxWxH) | 4.331 x 4.252 x 2.441" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 98 owners. Add your rating and experience with the product.
