User Manual for Metabones Contax N Lens to Sony E-Mount T Speed Booster ULTRA 0.71x Adapter Click to enlarge the picture
Contents of the user manual for the Metabones Contax N Lens to Sony
- Product category: Lens Mount Adapters Metabones
- Brand: Metabones
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Metabones Lens Mount Adapters
 |
User manual for the Metabones Contax N Lens to Sony contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Metabones product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Metabones user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Metabones product will considerably shorten its lifespan!
|

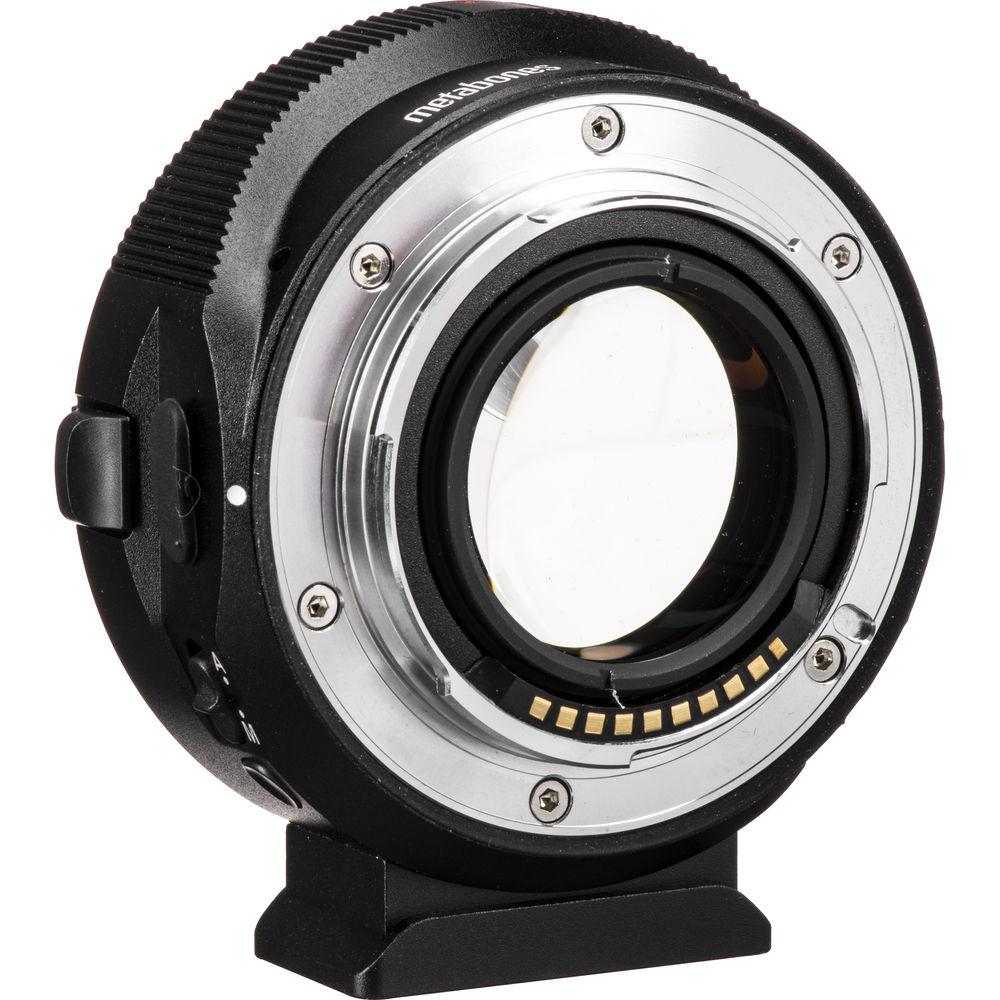

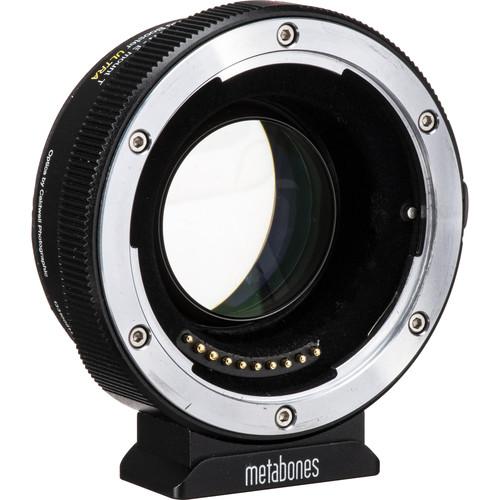

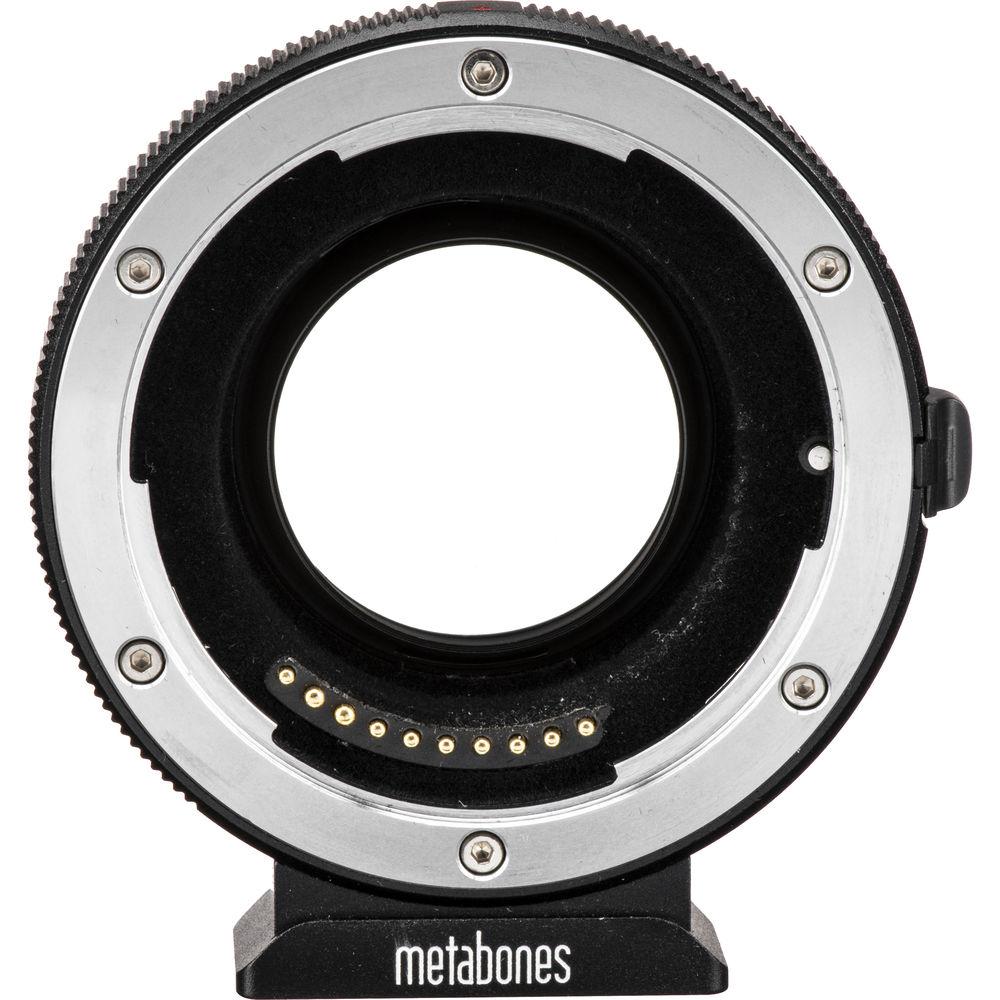

Product description Enabling full use of Contax N-mount lenses with APS-C-format Sony E-mount mirrorless cameras, this Metabones Speed Booster ULTRA 0.71x Adapter permits working with these classic, optically refined lenses with a modern camera system. The unique Speed Booster design incorporates a five-element, four-group optical design, using ultra-high refractive index tantalum-based glass, to maintain high optical quality as well as effectively eliminate the crop factor associated with the APS-C format and increase the mounted lens's maximum aperture by one stop. This optical design widens the lens's field of view by 0.71x, which reduces the effective APS-C crop factor from 1.5x to 1.07x. Additionally, the use of high refractive index glass helps to retain overall high sharpness from edge to edge and reduce vignetting and distortion. Additionally, the adapter affords full autofocus support when used with a camera offering phase-detection autofocus, and it also maintains five-axis image stabilization from select camera bodies to help control camera shake.

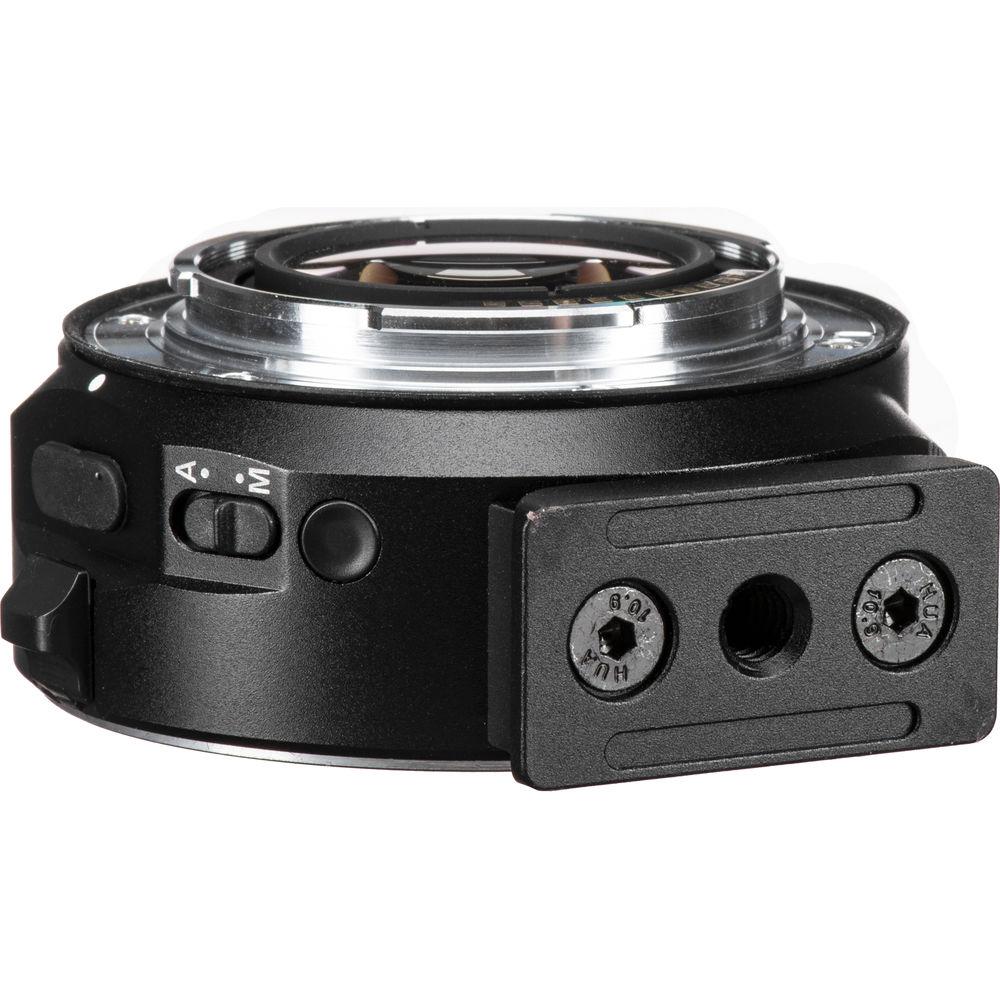

A programmable function button on the side of the adapter can be used to adjust more than 50 different functions on the camera body, including depth of field preview, for intuitive use. Two electrical contacts carry power from the camera body and a 10-pin contact transfers Exif data between the lens and the camera body. In regard to its physical design, chromium-plated brass mounts are featured on both the camera and lens sides; rubber gaskets help prevent dust and moisture from entering; a satin finish mimics the feel of the lens itself; and the interior of the adapter is felt-flocked to reduce glare or internal reflections. A removable tripod foot is also featured, and has a 1/4"-20 mount and is Arca-type compatible for flexible use. Additionally, an integrated micro-USB port permits easy installation of firmware updates. - Camera Compatibility
- Designed for use with APS-C-format E-mount mirrorless cameras or full-frame cameras when used in APS-C mode.
Contax N lenses are not compatible with contrast-detection autofocus; autofocus is only supported by E-mount cameras featuring phase-detection AF:
- Sony Alpha a9, a7R III, a7 III, a7R II, a7 II, a6500, and a6300
Five-axis in-body image stabilization is supported with:
- Sony Alpha a9, a7R III, a7 III, a7R II, a7 II, a7S II, and a6500
- Lens Compatibility
-
- Contax N-mount lenses
- Contax 645 lenses when adapted to Contax N mount via the Contax NAM-1 adapter (the Contax 645 Apo-Makro-Planar T* 120mm f/4 lens does not report distance information and only supports three-axis image stabilization). Contax 645 lenses cannot be adapted to full-frame E-mount cameras
In the Box Metabones Contax N Lens to Sony E-Mount T Speed Booster ULTRA 0.71x Adapter Front and Rear Caps Tripod Foot Hex Key Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Metabones Contax N Lens to Sony E-Mount T Speed Booster ULTRA 0.71x Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMetabones MB_SPCN-E-BT1 Specs | | | Camera Mount | Sony E | | Lens Mount | Contax N | | Magnification | 0.71x | | Optical Design | 5 Elements in 4 Groups | | | | Material | Brass | | Tripod Mounting Thread | 1/4"-20 | | Dimensions | H: 1.2 x W: 2.8 x D: 3.0" / H: 31.4 x W: 72.3 x D: 76.0 mm | | Weight | 7.30 oz / 207 g | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 1.0 x 1.0 x 1.0" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 68 owners. Add your rating and experience with the product.
