User Manual for Metabones MB_PL-E-BT1 PL to E-Mount Adapter with Internal Flocking Click to enlarge the picture
Contents of the user manual for the Metabones MB_PL-E-BT1 PL to E-Mount Adapter
- Product category: Lens Mount Adapters Metabones
- Brand: Metabones
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Metabones Lens Mount Adapters
 |
User manual for the Metabones MB_PL-E-BT1 PL to E-Mount Adapter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Metabones product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Metabones user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Metabones product will considerably shorten its lifespan!
|

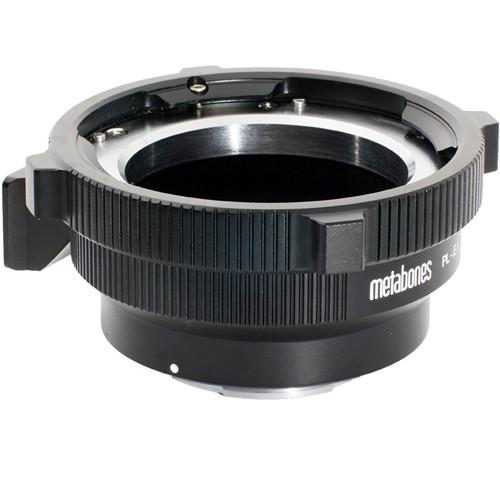

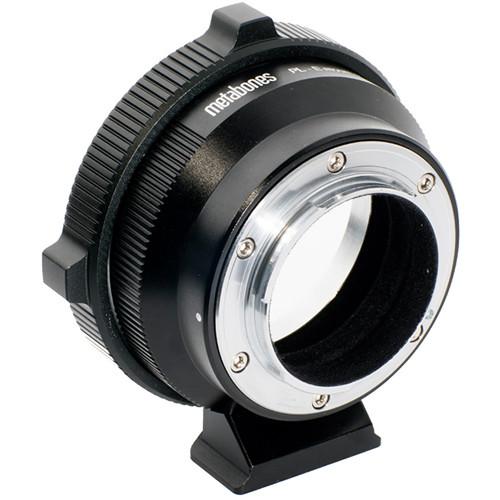

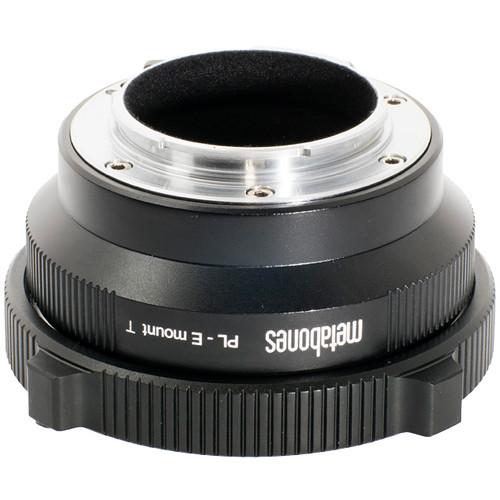

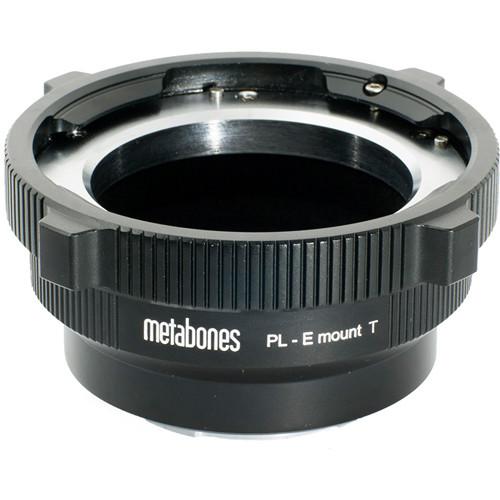

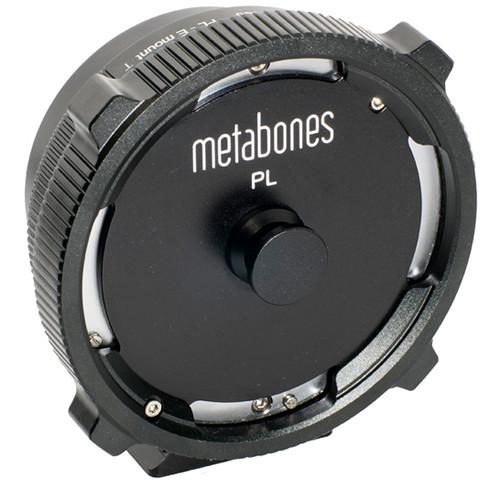

Product description If you want to use your existing PL mount lenses on a camera with a Sony E-mount, you need an adapter. The Metabones MB_PL-E-BT1 PL to E-Mount Adapter with Internal Flocking mounts to your camera's lens port and allows you to use PL mount lenses with your camera. Although this is not a permanent conversion, the adapter features a removable support foot to take the strain off of your camera's mount.

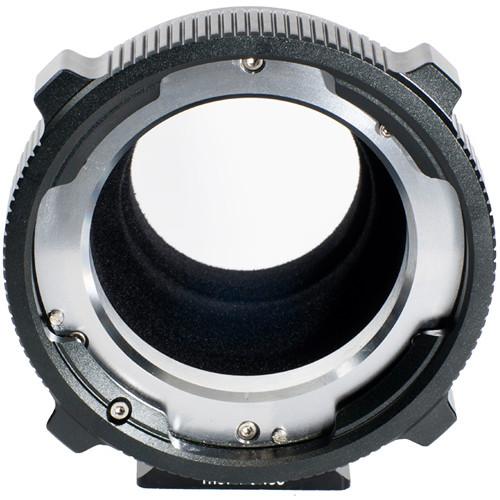

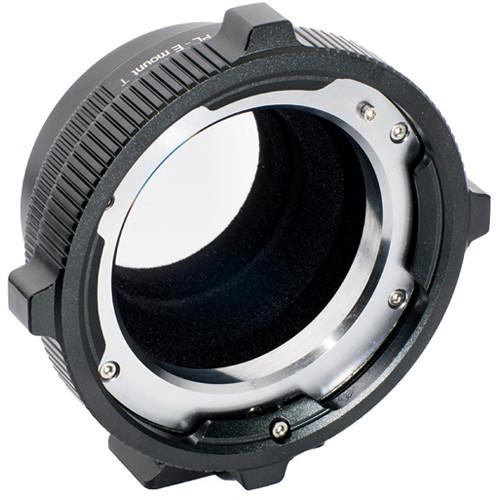

The adapter features internal flocking to reduce internal reflections, Chromium-plated brass front and rear contact surfaces for corrosion resistance. The hard front and rear contact surfaces serve to maintain the adapter's tight tolerances over time, ensuring the correct flange focal distance. This is a mechanical adapter that does not pass any electronic lens control or metadata. - The support foot is detachable from the mount by removing two hex key screws. The foot itself is Arca Swiss compatible, and incorporates a 1/4"-20 threaded mounting hole for optional supports.
- Maintains correct flange depth between lens and image plane.
- Infinity remains unchanged, so the lens does not need to be re-collimated or shimmed.
- Brass construction protects lens mount, a chromium satin finish makes the adapter corrosion and wear resistant.
- Compatibility
- The Adapter has been tested with the following cameras:
A7S (in "APS-C Size Capture" mode)
A7R (in "APS-C Size Capture" mode)
A7 (in "APS-C Size Capture" mode)
PXW-FS7
NEX-FS700
NEX-FS100
NEX-EA50
NEX-VG900
NEX-VG30
NEX-VG20
NEX-VG10
NEX-7
NEX-6
NEX-5R
NEX-5N
NEX-5
NEX-C3
NEX-3
NEX-A6000 In the Box Metabones MB_PL-E-BT1 PL to E-Mount Adapter with Internal Flocking PL Cap Rear Cap 2 x Hex Keys Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Metabones MB_PL-E-BT1 PL to E-Mount Adapter with Internal Flocking in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMetabones MB_PL-E-BT1 Specs | Adapter Type | PL mount lenses to Sony E-mount | | Focus | Infinity is maintained | | Electronic Iris | No | | Material | Brass with satin chromium finish | | Tripod Fitting | Arca Swiss compatible support foot with 1/4"-20 female mounting hole | | | | Package Weight | 1.4 lb | | Box Dimensions (LxWxH) | 5.7 x 5.7 x 2.9" |
