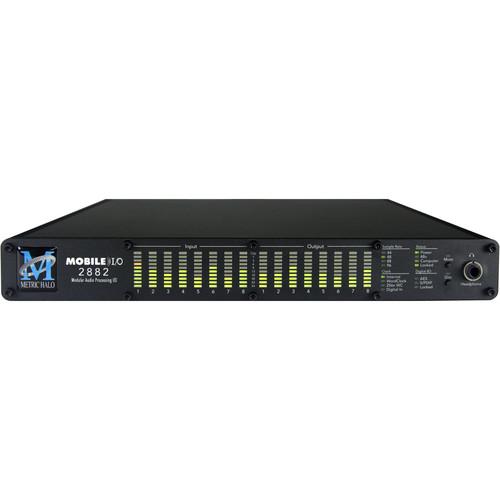

Product description The Metric Halo 2882 3d is a USB Type-C audio interface offering eight preamps, digital I/O, DSP-powered mixing, and software control for musicians, engineers, and producers in studios and mobile setups. Its integrated dual-core DSP powers a variety of plug-ins—the included DSP+ license unlocks over 100 of them—without burdening your computer's CPU. Robust software ensures easy access to multitrack recording, mixing, monitoring, and more.The 2882 3d's eight microphone preamps are fed by four XLR mic inputs and four 1/4" instrument/line inputs. All eight preamps feature phantom power, switchable impedance, and -20 dB pads accessible on a per-channel basis via the MH Console software. Analog outputs include eight 1/4" line outs and a 1/4" headphone jack, which is affected by the front-panel mute and dim functions. Properly synchronize with other digital equipment through the BNC word clock connectors, or consolidate audio, clock, and data I/O with other 3d-equipped Metric Halo interfaces via the MH Link ports.The pre-installed MH EdgeCard provides stereo AES3 and S/PDIF I/O in addition to the 2882 3d's standard eight-channel ADAT optical ports. The interface's front panel is packed with comprehensive metering and status indicators, showing vital information at a glance. The 2882 3d connects to a compatible Mac, Windows, iOS, or Linux device via the supplied USB Type-A to USB Type-C cable. - 3d Card Features
-
- MH Link: Low-latency, high-bandwidth audio, clock, and data connections via Gigabit Ethernet
- MH Link Audio: Direct Ethernet Core Audio driver (with support for up to 128 channels of I/O at 192 kHz)
- MH EdgeBus: A high-bandwidth, programmable, and pluggable audio expansion slot that accommodates a range of I/O expansion cards
- MH Console: A 64-bit application to control your entire system with a simple, efficient, and flexible routing model (macOS only for Early Access versions)
- MH Mixer: 128-input / 64-bus unified zero-latency mixer
- MH MonitorControl: Integrated surround-capable monitor controller with system processing capability
- MH Record: 128-input multitrack recorder with deep hardware integration
- MH DSP Engine: dual-core processing power and 1GB memory in the hardware, plus the +DSP license providing over a hundred plug-ins and the Metric Halo Graph environment

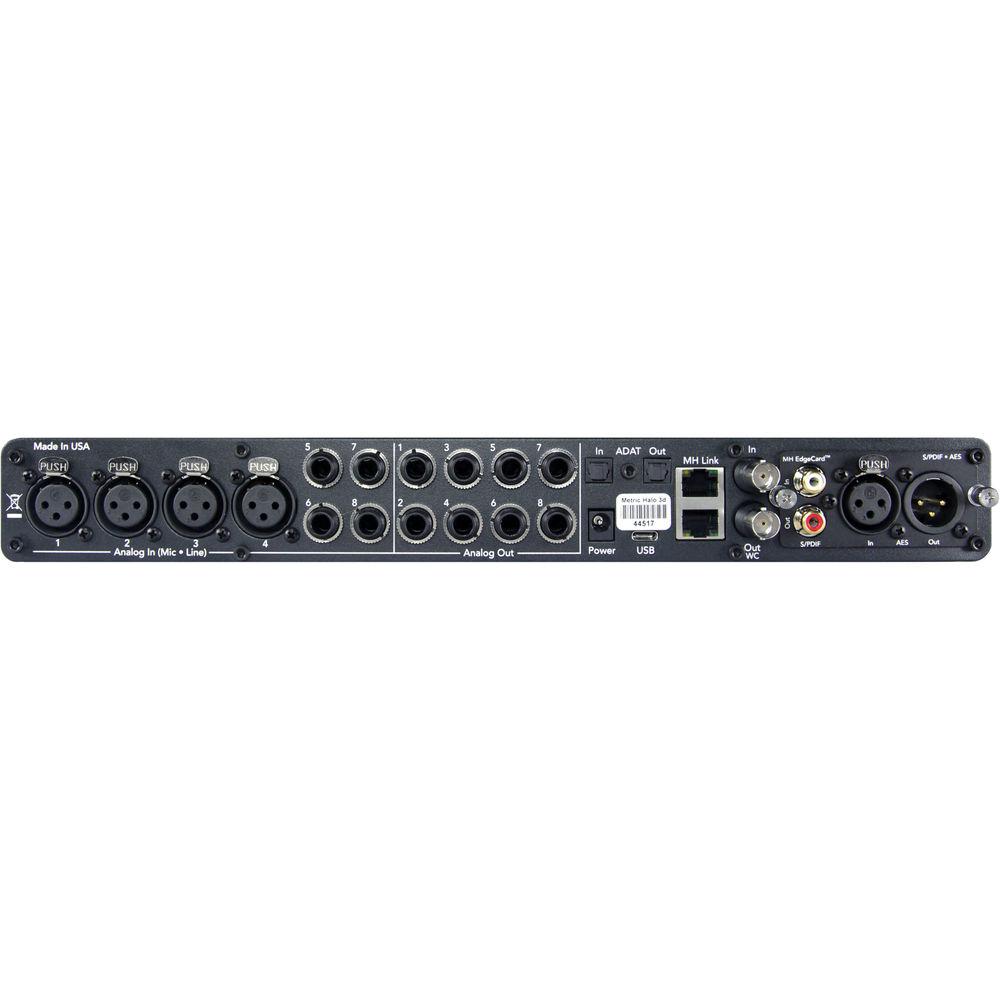

- Analog I/O
-
- Four mic inputs via XLR 3-pin sockets
- Four instrument/line inputs via 1/4" jacks
- Per-input gain, impedance, 20 dB pad, and phantom power remotely controllable
- Eight line outputs via 1/4" jacks
- Stereo headphone output via front-panel 1/4" port
- Digital I/O
-
- Eight channels of ADAT digital I/O via TOSLINK optical ports (switchable to two-channel S/PDIF)
- Pre-installed MH EdgeCard
- Stereo AES3 digital I/O via XLR 3-pin connectors
- Stereo S/PDIF digital I/O via coaxial connectors
- Word clock I/O via BNC jacks

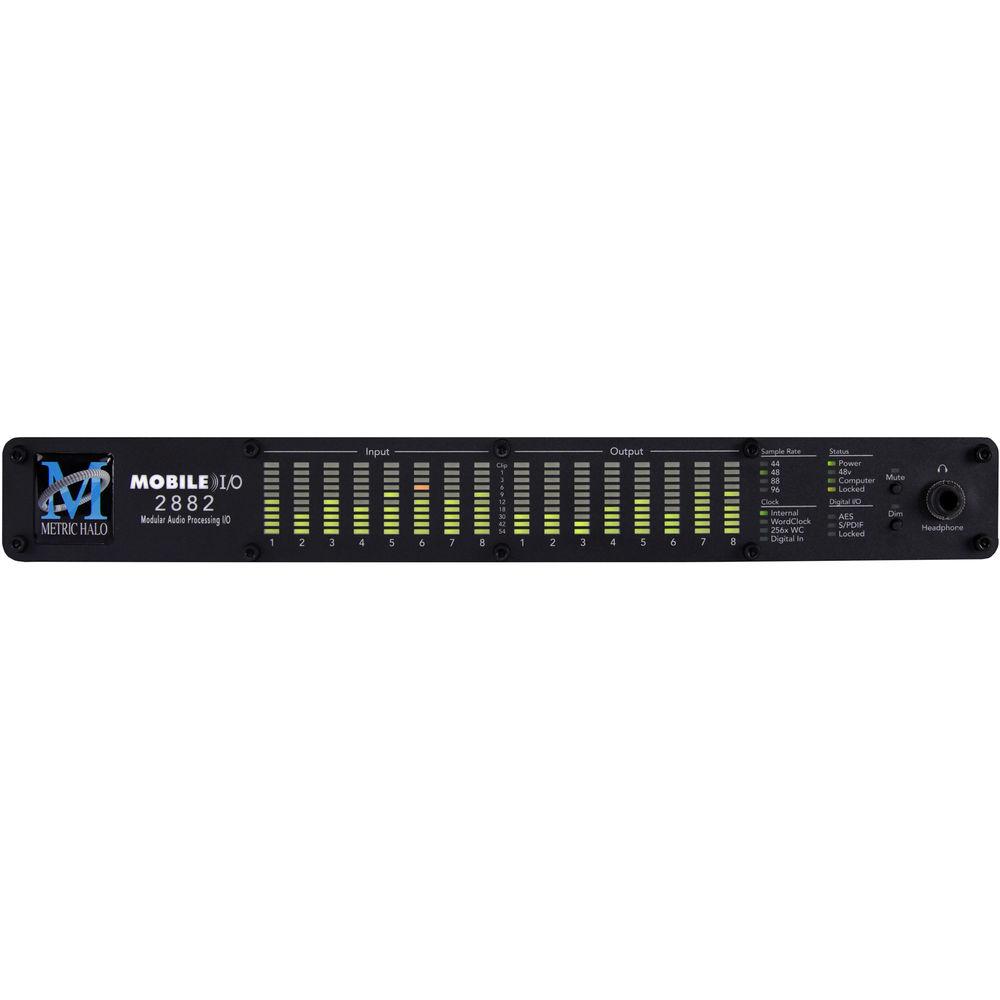

- Informative Front Panel
-
- Eight ten-segment LED input meters
- Eight ten-segment LED output meters
- LED indicators for sample rate, clock source/status, digital format, power, phantom, and more
- Dim and mute buttons with dedicated LED indicators
- Included Accessories
-
- IEC power cable and external power supply
- USB Type-A to USB Type-C cable
- 1' Cat5e patch cable for MH Link between interfaces
- Two rack ears with fasteners
- Four rubber feet
- MIO software CD-ROM
UPC: 832081000484 In the Box Metric Halo 2882 3d Software-Controlled USB Type-C Audio Interface with 8 Preamps & DSP IEC Power Cable 24 VDC / 48W External Power Supply USB Type-A to USB Type-C Cable 1' Cat5e MH Link Patch Cable 2 x Rack Ears with Fasteners 4 x Rubber Feet Preinstalled MH EdgeCard (AES, S/PDIF) MIO Software CD-ROM Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Metric Halo 2882 3d Software-Controlled USB Type-C Audio Interface with 8 Preamps & DSP in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMetric Halo Mobile I/O 2882 Specs | | | Channels of I/O | Analog:
8 Inputs / 8 Outputs at 96 kHz
0 Inputs / 8 Outputs at 192 kHz
Digital:
8 Inputs / 8 Outputs at 48 kHz
2 Inputs / 2 Outputs at 192 kHz | | Max Sample Rate/Resolution | 192 kHz / 24-Bit Maximum Resolution for AD/DA Conversion is 24-Bit / 96 kHz. At 176.4 kHz and 192 kHz, the ADCs are Disabled, While the DACs are Functional, but Run with Reduced Fidelity. | | Display and Indicators | 8 x Multi-Segment LED Meters (Input Level)
8 x Multi-Segment LED Meters (Output Level)
4 x LEDs (Sample Rate)
6 x LEDs (Clock Source)
5 x LEDs (Dim, Host Connection, Mute, Phantom Power, Power)
2 x LEDs (Input Selection, Output Selection) | | | | Host Connection | 1 x USB Type-C | | Analog I/O | 4 x XLR 3-Pin Balanced Mic Input
4 x 1/4" (6.3 mm) TRS Balanced Line/Hi-Z Input
8 x 1/4" (6.3 mm) TRS Balanced Line Output
1 x 1/4" (6.3 mm) TRS Unbalanced Headphone Output | | Phantom Power | +48 V (Selectable on Individual Inputs) | | Digital I/O | 1 x TOSLINK / ADAT (I/O) Input
1 x TOSLINK / ADAT (I/O) Output
1 x RCA Coaxial / S/PDIF (I/O) Input
1 x RCA Coaxial / S/PDIF (I/O) Output
1 x XLR 3-Pin Female / AES/EBU (I/O) Input
1 x XLR 3-Pin Male / AES/EBU (I/O) Output
1 x BNC (Word Clock) Input
1 x BNC (Word Clock) Output
1 x RJ45 (MH Link) Input
1 x RJ45 (MH Link) Output | | MIDI I/O | None | | Memory Card Slot | None | | | | Gain Range | Mic Inputs:
0 dB to +42.5 dB
Hi-Z Inputs:
0 dB to +42.5 dB
Line Inputs:
-2 dB to +40.5 dB
-13.8 dB to +28.7 dB -2 dB to +40.5 dB Gain Range at +4 Line Setting
-13.8 dB to +28.7 dB Gain Range at -10 Line Setting | | Max Output Level | Outputs:
+26 dBu | | Dynamic Range | A/D Converters:
110 dB
D/A Converters:
120 dB | | Impedance | Hi-Z Inputs:
200 kOhms (Unbalanced)
Line Inputs:
10 kOhms (Balanced)
Mic Inputs:
200 kOhms (Balanced) | | SNR | Inputs:
110 dB
Line Outputs:
120 dB | | | | Sample Rates | Up to 96 kHz (AD/DA Conversion)
176.4 and 192 kHz (D/A Conversion) | | Bit Depth | Up to 24-Bit (AD/DA Conversion) | | Latency | 67 Samples at 44.1 kHz (Input to Output)
67 Samples at 48 kHz (Input to Output)
67 Samples at 88.2 kHz (Input to Output)
67 Samples at 96 kHz (Input to Output) | | Sync Sources | ADAT, AES/EBU, Internal, S/PDIF, Word Clock, MH Link via Ethernet | | Word Clock Input Termination | 75 Ohms | | | | OS Compatibility | macOS
Windows 10
Linux
iOS MH Console Software for Early Access Models Supports macOS Only | | Required Hardware | USB 2.0 Port | | | | Power Requirements | AC/DC Power Adapter (Included) | | AC Input Power | 100 to 240 VAC at 50/60 Hz | | AC/DC Power Adapter | 24 VDC at 2 A, Center-Positive (Included) | | Power Consumption | 12 W | | Phantom Power Current | <10 mA per Channel | | | | Anti-Theft Features | None | | Rackmount Size | 1 RU (With Included Hardware) | | Dimensions | 13.5 x 10.98 x 1.73" / 34.3 x 27.9 x 4.4 cm | | Weight | 4.5 lb / 2.0 kg (Without Accessories) |
