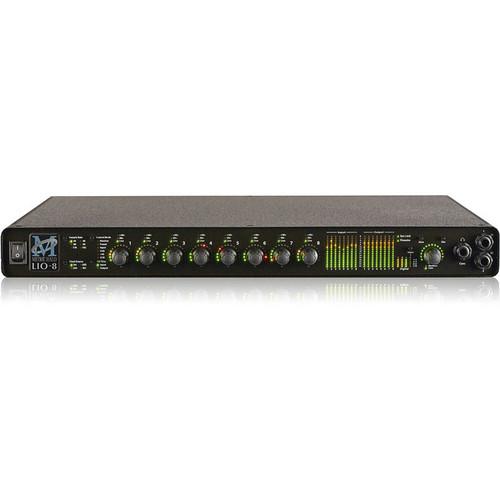

User Manual for Metric Halo LIO-8 Line-Level Digital Audio Converter Click to enlarge the picture
Contents of the user manual for the Metric Halo LIO-8 Line-Level Digital Audio
- Product category: Audio Interfaces & Systems Metric Halo
- Brand: Metric Halo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Metric Halo Audio Interfaces & Systems
|
User manual for the Metric Halo LIO-8 Line-Level Digital Audio contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Metric Halo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Metric Halo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Metric Halo product will considerably shorten its lifespan!
|
Product description The LIO-8 from Metric Halo is a compact and lightweight line-level digital audio converter that provides you with the power, features, and quality of the ULN-8, but without the mic pres. The LIO-8 features analog, AES, and FireWire interfacing and supports sample rates up to 192kHz. It has DC-coupled, zero phase distortion, servo-balanced line inputs and outputs, plus fully clickless remote controlled monitor outputs that allow flexible monitoring applications from stereo to 7.1 surround.
The LIO-8 has tactile controls for making quick and easy adjustments. It also offers precision metering for both the input and output channels. The unit works with or without a computer and has fully digital control for total recall, remote control, and control surface support. The system uses real-world tested firmware, software, and drivers to ensure rock-solid stability and reliable performance. Metric Halo's exclusive per-channel selectable character lets you adjust sonic characteristics from ultra-clean to thick and gooey. Ultra-low latency instantiable processing is built-in, with plenty of DSP power. All of these features are combined in a compact, lightweight, and affordable package.
The LIO-8 is also upgradeable and expandable. You can install 4 or 8 channels of mic pres, and also upgrade the unit's processing by adding a "+DSP" license, which unlocks over 100 plug-ins and gives you the capability to create and save complex processing graphs and access factory-supplied macros such as processors, amp simulators, and more. - Compact and lightweight 1RU design
- Analog, AES, and FireWire interfacing
- Universal sample rate support, with rates up to 192kHz
- 192kHz archival-grade AD/DA conversion
- DC-coupled, zero phase distortion, servo-balanced line inputs and outputs
- Fully clickless remote controlled monitor outputs allow flexible monitoring applications from stereo to 7.1 surround
- Tactile controls for making quick and easy adjustments
- Precision metering for the input and output channels
- Works with or without a computer and has fully digital control for total recall, remote control, and control surface support
- Uses real-world tested firmware, software, and drivers to ensure rock-solid stability and reliable performance
- Exclusive per-channel selectable character lets you adjust sonic characteristics from ultra-clean to thick and gooey
- Ultra-low latency instantiable processing is built-in, with plenty of DSP power
- Dedicated, digitally-controlled high-power headphone amplifier
- 4 or 8 channels of mic pres can be installed in the unit 1
Please Note: Optional, sold separately close - You can upgrade the unit's processing by adding a "+DSP" license, which unlocks over 100 plug-ins and gives you the capability to create and save complex processing graphs and access factory-supplied macros such as processors, amp simulators, and more. No extra hardware is needed for this feature 2
Please Note: Optional, sold separately close UPC: 832081000279 In the Box Metric Halo LIO-8 Line-Level Digital Audio Converter Power Supply Rack Ears 1-Year Limited Warranty User Manual PDF 29.5mbztexdtbwyfcrvvyyzxazxde Table of Contents
|
Upload User Manual
Have you got an user manual for the Metric Halo LIO-8 Line-Level Digital Audio Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMetric Halo LIO-8 Specs | Rails | ±9.9V (Low Power)
±12.6V (High Power) | | Levels | +18.5dBu Peak Line Output @ 0dBFS (No Jumper/Low Power)
+22dBu Peak Line Output @ 0dBFS (Output Jumper/Low Power)
+24.5dBu Peak Line Output @ 0dBFS (Output Jumper/High Power)
+21.5dBu Analog Send Max Output
+24.5dBu Line In Max Input | | Output Impedance | 5 Ohms | | Output | -19dBu Nominal FS output (Balanced) Output Jumper Off
-12dBu Nominal FS output (Balanced) Output Jumper On
Max Output: Same as Line | | Gain | Range: -96 to +30dB
Precision: ±0.05dB
Step: 0.5dB | | Input Impedance | 10 kOhms | | Dynamic Range | 115dB (Flat)
118dB (A-Weighted) | | Noise Floor | 115dB (Flat)
117.9dB (A-Weighted) | | Total Harmonic Distortion (THD) | 0.0005% (-12dBFS)
0.0015% (-0dBFS) | | Crosstalk | -127dB | | IMD | -104dBu | | Frequency Response | 5.7Hz - 20.5kHz (+0/-0.1dB @ fs = 44.1kHz)
1.8Hz - 21.0kHz (+0/-1.0dB @ fs = 44.1kHz)
5.7Hz - 43.9kHz (+0/-0.1dB @ fs = 96kHz)
1.8Hz - 45.4kHz (+0/-1.0dB @ fs = 96kHz
5.7Hz - 42.1kHz (+0/-0.1dB @ fs = 192kHz)
1.8Hz - 64.7kHz (+0/-1.0dB @ fs = 192kHz) | | Deviation | 10.7Hz (5°) | | Phase | < ±0.05° (Interchannel Phase, 0Hz - 20kHz) | | Processing | Instantiable M/S Encode/Decode, Parametric EQ, Dynamics, Character, Reverb, Delay, Dither, Mix Foldown | | Indicators | 495 Bicolor LEDs
16 Meters, 15 Segments per Meter | | Connectors | 1 x 1/4" Headphone Jack
2 x 1/4" Direct Instrument Inputs
2 x 1/4" SMPTE Connectors (In/Out)
2 x MIDI Connectors (In/Out)
2 x BNC Word Clock Connectors (In/Out)
2 x FireWire 400 Connectors
1 x DB25 8-Channel AES I/O Connector
1 x DB25 8-Channel Line In
1 x DB25 8-Channel Balanced Send
1 x DB25 8-Channel Line/Monitor Out
2 x 1/4" Line/Monitor Out Mult Jacks
1 x 4-Pin XLR Power Input
1 x 2.1mm Coaxial DC Power Output | | Software | CoreAudio Mac OS X 10.3.9 or Newer, PPC/Intel
MIO Console, Record Panel, LTC Decoder, and Mixer Included | | Power | Voltage: 14-28V
Power: 24W
Bus Powerable: No
Passes Bus Power: Yes
Supplies Bus Power: No
External Supply (Input): 100-240VAC
Max Input Current: 1.2A
External Supply (Output): 24VDC
Max Output Current: 2.0A | | Construction | Powder Coated Aluminum with Steel Rack Ears | | Dimensions (WxDxH) | 17 x 13 x 1.72" (432 x 330 x 44mm) | | Weight | 6 lbs (2.7kg) | | | | Package Weight | 10.1 lb | | Box Dimensions (LxWxH) | 19.5 x 16.0 x 7.1" |
