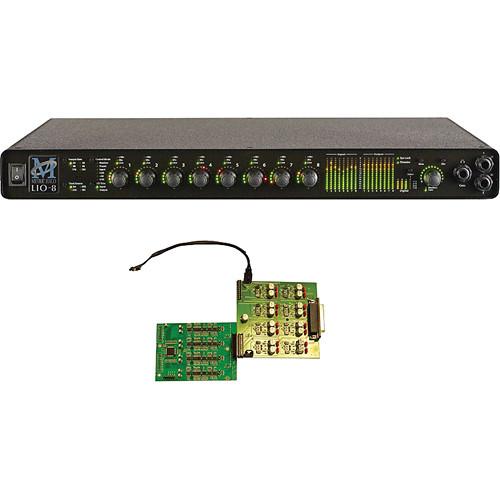

User Manual for Metric Halo LIO-8 Line-Level Digital Audio Processor with 4 Preamps Click to enlarge the picture
Contents of the user manual for the Metric Halo LIO-8 Line-Level Digital Audio
- Product category: Audio Interfaces & Systems Metric Halo
- Brand: Metric Halo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Metric Halo Audio Interfaces & Systems
|
User manual for the Metric Halo LIO-8 Line-Level Digital Audio contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Metric Halo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Metric Halo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Metric Halo product will considerably shorten its lifespan!
|
Product description The Metric Halo LIO-8 Line-Level Digital Audio Processor with 4 Preamps is suitable for customers who want the ULN-8’s archival-grade converters, rock-solid stability, ability to work with or without a computer, and 4 channels of the ULN-8's boutique-quality mic pres, but do not need the +DSP or most combinations thereof.Featuring archival-grade converters, dedicated analog-domain sends and returns, analog domain 7.1 monitor controller, AES interfacing, extensive front panel control with precision front panel metering all built atop Metric Halo’s 5th generation 2D processing, and mixing and FireWire interfacing platform, the LIO-8 Digital Audio Processor delivers professional audio. - 8 channels of archival quality, zero-phase distortion DC-coupled, calibrated 192k A/D
- 10 channels of archival quality, zero-phase distortion DC-coupled, calibrated 192k D/A
- 2 channels of exceptional ultra High-Z direct input for instruments
- 8 in and 8 out 192k AES interface
- Full featured front panel tactile control surface for standalone and connected operation
- 8 channels of analog domain send (for analog S/R before conversion and analog preamp output)
- Per channel selectable character
- Digitally controlled analog domain monitor control
- Full featured 15 segment precision metering
- MIDI I/O for direct connect of Mackie Control Protocol control surface
- Integrated mixing and deep instantiable DSP processing
- Rock Solid Stability: Mature, real-world-tested firmware and 5th generation software and drivers
- FireWire interfacing with ultra-stable, ultra low-latency drivers (FW400 & FW800 supported)
- Good power performance (only 32W - DC / Battery powered)
- Low mass (8.50 lb (3.86 kg))
- Compact (everything in 1 RU)
UPC: 832081000408 In the Box Metric Halo LIO-8 Line-Level Digital Audio Processor with 4 Preamps Limited 1-Year Warranty User Manual PDF 29.5mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Metric Halo LIO-8 Line-Level Digital Audio Processor with 4 Preamps in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMetric Halo LIO-8 Specs | | | Input Impedance | 3.3 kΩ | | Dynamic Range | 115 dB (-60 dB, flat 0 to 22.05 kHz, type)118 dB (-60 dB, A-weighted, type) | | Noise Floor | 115 dB (flat 0-22.05 kHz, type)117.9 dB: (A-weighted, type) | | Gain | Gain Range: -22 to 91.5 dBGain Precision: ±0.05 dBGain Step: 0.5 dB | | Loop Outputs | THD D/A/A/D loop at -12 dBFS: 0.0007%THD D/A/A/D loop at -12 dBFS +12 dB Gain: 0.0015%THD D/A/A/D loop at -0 dBFS: 0.0023% | | Cross Talk | -110 dB (at 1 kHz) | | IMD | IMD 1 k component (19 kHz / 20kHz at +8 dBu): -104 dBu | | EIN | EIN at 60 dB Gain (150 Ω Source Impedance): -130.50 dBuEIN at 60 dB Gain (0 Ω Source Impedance): -133.25 dBu | | Calibration | Analog Send Calibration (ADC = 0 dBFS): +21.5 dBu | | Phantom Power | Phantom Power (Switch-able Per Channel): +48 V | | Frequency Response | +0/-0.1 dB at fs = 44100 Hz: 8.9 Hz to 20.5 kHz+0/-1.0 dB at fs = 44100 Hz: 2.9 Hz to 21.0 kHz+0/-0.1 dB at fs = 96000 Hz: 8.9 Hz to 43.9 kHz+0/-1.0 dB at fs = 96000 Hz: 2.9 Hz to 45.4 kHz+0/-0.1 dB at fs = 192000 Hz: 8.9 Hz to 42.1 kHz+0/-1.0 dB at fs = 192000 Hz: 2.9 Hz to 64.7 kHz | | Deviation | 5° Low-End In-Channel Phase Deviation Point: 20.0 Hz | | Channel | Interchannel Phase 0 Hz to 20 kHz: < ± 0.05° | | Cross Talk | Crosstalk from SMPTE Input: < -142 dB | | | | Package Weight | 10.35 lb | | Box Dimensions (LxWxH) | 19.5 x 16.1 x 7.0" |
