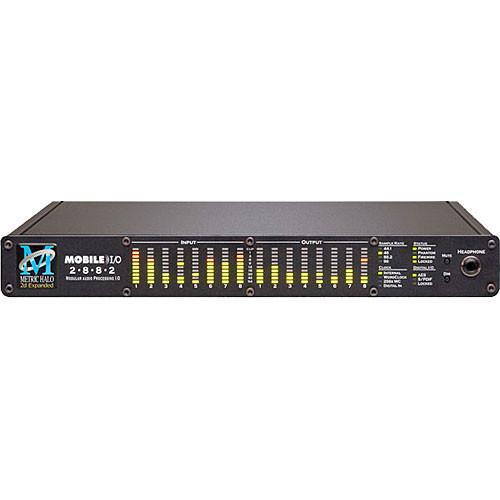

User Manual for Metric Halo Mobile I O 2882 Expanded - FireWire Digital Audio Interface Click to enlarge the picture
Contents of the user manual for the Metric Halo Mobile I O 2882
- Product category: Audio Interfaces & Systems Metric Halo
- Brand: Metric Halo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Metric Halo Audio Interfaces & Systems
|
User manual for the Metric Halo Mobile I O 2882 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Metric Halo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Metric Halo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Metric Halo product will considerably shorten its lifespan!
|
Product description The Mobile I/O 2882 from Metric Halo is a portable, high quality FireWire based, multi-format audio converter and interface. Housed in a single space rack-mount chassis, the unit provides 18 inputs and 20 outputs of simultaneous I/O, while having the ability to be powered entirely from the FireWire bus of a laptop computer or from an appropriate DC power source. The unit is equipped with 8 microphone/balanced analog inputs, 2 channels of digital I/O (AES/EBU and S/PDIF), 8 channels of ADAT optical I/O and 8 balanced analog outputs. The first 4 microphone/line inputs are on XLR connectors, but all 8 inputs can provide +48V phantom power for condenser microphone use. Wordclock in/out and dual FireWire connectors, along with 24-bit, 96kHz converters on all channels, make this the perfect tool for digital recording. On-board DSP powers the v.5 MIO Console that can function as a mixer, router and control application. The software can be used to route any input to any output, providing powerful and flexible mixing possibilities. A "Record Panel" allows for straight forward recording of incoming audio without the need for additional DAW software. This is particularly useful in situations where immediate editing is not required, but stable, fool-proof recording is. The 2882 Expanded will function at a high level in a variety of applications. For studio recording, it offers sound processing or simple file transfer between workstations. For broadcast applications it offers instant playback of 2 individual stereo sends for music cues or sound effects. For live performance, in addition to operating as a remote recorder, or to play out backing tracks and musical cues, the interface provides live engineers a simple and efficient tool for analysis and system venue tuning using optional SpectraFoo software. Hardware - Fully portable FireWire audio interface and format converter
- Bus powered or use with external adapter that provides sufficient power for other peripherals
- 18 simultaneous input channels and 20 simultaneous output channels, all with full 24-bit/96kHz resolution
- 8 microphone preamplifiers (4 with XLR connectors) with switchable 48V phantom power
- Selectable stereo AES/EBU or S/PDIF digital inputs and outputs
- 8 channels of ADAT Lightpipe I/O (switchable to TOSlink)
- Wordclock I/O on BNC connectors
- Sample rate conversion (SRC) on digital AES or S/PDIF digital I/O
- Headphone amplifier with front panel mute/dim
- Front panel metering for analog inputs and outputs
- OS X drivers with multi-interface support
MIO Software Console - v.5 Configurable mixer for near-zero latency mixing and routing
- Completely customizable mixing engine can be created from scratch or with any of the templates included
- Record Panel provides no-frills, but very stable recoding feature for all inputs
- A single input can be multi-ed and given various levels of DSP processing and then recorded as separate tracks
- An arbitrary number of busses can be created (limited only by the capabilities of the hardware), each of which can be used as a master bus (routed to an output) or an auxiliary bus (routed to other busses), with bus able to be dynamically adjustable from mono to 7.1 surround
- Integrated surround monitor controller/switcher
- "Character" slot available on all channels provides analog modeling of various circuit types, including tube based electronics, etc.
- Full console metering of every channel and mix bus
- Total recall of every console parameter
UPC: 832081000019 In the Box Metric Halo Mobile I/O 2882 Expanded - FireWire Digital Audio Interface Universal External Power Supply Power Cable 0.5m IEEE 1394 6-Pin FireWire Cable 4.5m IEEE 1394 6-Pin FireWire Cable Rack Ears with Fasteners MIO Software CD-ROM One (1) Year Warranty User Manual PDF 949.3kbuwreuadaxxzwrbcszyubyxuffwafsfzdavar Table of Contents
|
Upload User Manual
Have you got an user manual for the Metric Halo Mobile I O 2882 Expanded - FireWire Digital Audio Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMetric Halo Mobile I/O 2882 Specs | Converters | 24-bit | | Sample Rates | 44.1, 48, 88.2 and 96kHz | | Analog Input | 4 x XLR Microphone/Line
4 x 1/4" TRS phone Microphone/Line | | Analog Output | 8 x 1/4" TRS phone | | Digital Input | 1 x XLR AES/EBU
1 x RCA coaxial S/PDIF
1 x ADAT Lightpipe | | Digital Output | 1 x XLR AES/EBU
1 x RCA coaxial S/PDIF
1 x ADAT Lightpipe | | MIDI In/Out | No | | Sync In/Out | 2 x BNC Wordclock I/O | | Headphone Output | 1 x 1/4" TRS phone | | THD + N | Not specified by manufacturer | | Dynamic Range | A/D: 110dB
D/A: 120dB | | Frequency Response | Not specified by manufacturer | | Power Requirements | FireWire bus
Included 9 to 30V DC, center post positive (+) power adapter | | System Requirements | PowerPC or Intel Mac
OS X 10.3.9 or better
512MB RAM
Monitor with 1024 x 768 resolution or better
ASIO 2 compatible host (Cubase, Nuendo, Logic Audio, Digital Performer, Deck or Peak)
Application that supports ASIO direct monitoring for direct monitoring-based fold-back and overdubbing | | Specialties | Sample rate conversion (SRC) on digital I/O | | | | Package Weight | 8.05 lb | | Box Dimensions (LxWxH) | 20.0 x 15.0 x 5.0" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 23 owners. Add your rating and experience with the product.
