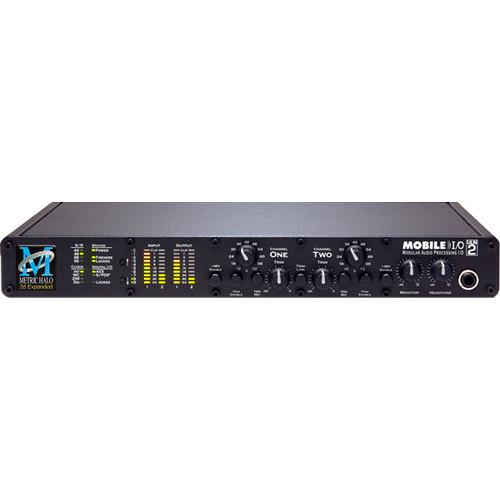

Product description The Metric Halo ULN-2 - FireWire Digital Audio Interface (with 2 Jensen Input Transformers + DSP) is a portable, FireWire based, multi-format studio recording audio converter and interface. Housed in a single space rack-mount chassis, the unit provides 12 inputs and 14 outputs of simultaneous I/O, while having the ability to be powered from the FireWire bus of a laptop computer, or from an appropriate DC power source. This version of the audio interface includes a modification wherein two Jensen input transformers have been added to the signal path to add low-order harmonic distortion which provides a depth and smoothness to the sound of your music. An additional benefit of the Jensen transformers is that they electronically isolate the preamplifier from the source which raises the common mode rejection of the device.
This version of the audio interface also includes the +DSP license which allows you to insert plugins such as multi-band EQs, compressors, limiters, distortion processors, guitar amp models, vintage reverbs, parallel processors, and more into the signal path within the v.5 software digital mixing console without taxing your host CPU.The ULN-2 2d is equipped with 2 balanced analog inputs on Neutrik combo connectors, 2 channels of digital I/O (AES/EBU and S/PDIF) and 8 channels of ADAT lightpipe I/O. Two balanced analog outputs and 2 balanced monitor outputs are available for connecting directly to power amps or self powered monitors. Wordclock I/O and dual FireWire connectors, along with 24-bit, 96 kHz converters on all channels, make the ULN-2 suitable for high quality digital recording.The interface can be used for capturing audio wherever inspiration hits, in the studio or on the road. The microphone preamps provide an ultra-fast slew rate, and the fully balanced analog inserts allow outboard analog dynamics processing to be introduced between the preamps and the A/D converters.The On-board DSP powers the v.5 MIO Console, which can function as a mixer, router, and control application. The software can be used to route any input to any output, providing a range of flexible mixing possibilities. A "Record Panel" allows for straightforward recording of incoming audio without the need for additional DAW software. This is especially useful in situations where immediate editing is not required, but stable, fool-proof recording is essential. Hardware - Fully portable FireWire audio interface and format converter
- Bus powered or use with external adapter that provides sufficient power for other peripherals
- 12 simultaneous input channels and 14 simultaneous output channels, all with full 24-bit/96 kHz resolution 1
Please Note: Totals include using 2-channels analog, 2 channels AES or S/PDIF, and 8-channels ADAT I/O close - 2 independent channels of high gain (up to +72dB), low-noise microphone-preamplification with switchable +48V phantom power
- Selectable stereo AES/EBU or S/PDIF digital inputs and outputs
- Up to 8-channels of ADAT Lightpipe input and output
- Wordclock I/O on BNC connectors
- Sample rate conversion (SRC) on AES or S/PDIF digital I/O
- Headphone amplifier with front panel volume knob
- Balanced stereo master control room monitor output with front panel volume control
- 10 front-panel preset system/routing memories for stand-alone operation
- 4-pin XLR power port for compatibility with most location battery systems
- Front panel metering for analog inputs and outputs
- OS X drivers with multi-interface support
MIO Software Console - v.5 Configurable mixer for near-zero latency mixing and routing
- Completely customizable mixing engine can be created from scratch or with any of the templates included - with the v.5 Mixer, the ULN-2 can be a mastering console in the morning, a tracking console in the afternoon, and a live sound mixer/recorder in the evening
- Record Panel provides no-frills, but very stable recoding feature for all inputs
- A single input can be multi-ed and given various levels of DSP processing and then recorded as separate tracks
- An arbitrary number of busses can be created (limited only by the capabilities of the hardware), each of which can be used as a master bus (routed to an output) or an auxiliary bus (routed to other busses), with bus able to be dynamically adjustable from mono to 7.1 surround
- Integrated surround monitor controller/switcher
- "Character" slot available on all channels provides analog modeling of various circuit types, including tube based electronics, etc.
- Full console metering of every channel and mix bus
- Total recall of every console parameter
- Jensen Input Transformers
- Adds low-order harmonic distortion to signal path which provides depth to the sound and electronically isolate the preamplifier from the source which raises the common mode rejection of the device
- +DSP Licence
- Enables insertion of multi-band eqs, compressors, guitar amp emulations, reverbs and more into the signal chain while leveraging power of internal DSP and not taxing the host CPU
- +DSP Plug-Ins
-
- Character (22 types)
- Multibus Mixer
- Surround Support
- Monitor Controller
- MIOStrip
- M/S Decoder
- Short Delay
- Dither
- HaloVerb
- TransientController
- MIO EQ 6
- MIO EQ 12
- MIO Comp
- MIO Limit
- MIO State Variable Filter
- NC State Variable Filter
- Linkwitz-Riley Band Split Filter
- Delays Family (15 plugins)
- MIO Simple Pitch Shifter
- Allpass filters (2 plugins)
- MIO Soft Clip Family (3 plugins)
- MIO Nonlinear Map Family (4 plugins)
- MIO Volume Control Family (16 plugins)
- MIO A/B Switch Family (16 plugins)
- MIO M/S Processor
- Static Matrix Family (5 plugins)
- Channel op Family (5 plugins)
- Math Family (9 plugins)
- Envelope Family (2 plugins)
- Oscillator Family (6 plugins)
- MIO Mod Delay
- Insertable Graphs (infinite possibilites)
- 2d Amps
- Bass Head
- Bass Head Shape 1
- Bass Head Shape 2
- British Mil Spec
- British Mil Spec Bright Cab
- British Mil Spec Grind
- British Mil Spec Light Grind
- British Mil Spec Rhythm
- British Mil Spec+Vibrato+Trem
- MH Clean
- MH Clean Tweed
- MH Hi-Gain
- Small Dark
- Small Dark No Cab
- Small Tweed Crunch
- Small Tweed Touch O' Dirt
- 2d Effects
- Autoflanger
- Autoflanger 2
- Autoflanger 3
- Cool Mono Echo
- LoFi Mod Echo
- Mono Rotary
- Slap Delay
- Vibrato+Tremolo
- Stereo Rotary Speaker
- 2d Reverbs
- Diffuse Prime
- Diffuse Room
- Early Diffuse Room (no tail)
- Hall 1
- LongVerb
- Med Diffuse Room
- ModVerb
- Small Diffuse Room
- 2d Mastering
- Parallel Compressor
- Parallel Limiter
- Mid-Side Compressor
- Mid-Side EQ
- Mid-Side Limit
- Stereo Parallel Limiter
- 2d Pedals
- Nezumi
- Nezumi Less Gain
- Screamer
- Cabinets
- Closed 2x12
- Closed 2x12 with Air
- 4x12 Cab
UPC: 832081000255 In the Box Metric Halo ULN-2 2d2J - FireWire Digital Audio Interface (2 Jensen Input Transformers + DSP) Universal External Power Supply Power Cable 0.5m IEEE 1394 6-Pin FireWire Cable 4.5m IEEE 1394 6-Pin FireWire Cable MIO Software CD-ROM Rack Ears with Fasteners Limited 1-Year Warranty User Manual PDF 29.5mbrzuadcvauaaxxtudecywdcfrt Table of Contents
|
Upload User Manual
Have you got an user manual for the Metric Halo ULN-2 2d2J - FireWire Digital Audio Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMetric Halo ULN-2 Expanded Specs | Transformer | 2x Jensen JT16-A | | Bit Depth | 24-bit | | Sample Rates | 44.1, 48, 88.2 and 96 kHz | | Analog Input | 2 x Neutrik Combo (both inputs fitted with Jensen transformers)
2 x 1/4" TRS phone FX Return | | Analog Output | 4 x 1/4" TRS phone
2 x 1/4" TRS phone FX Send | | Digital Input | 1 x XLR AES/EBU
1 x RCA coaxial S/PDIF
1 x TOSlink ADAT lightpipe | | Digital Output | 1 x XLR AES/EBU
1 x RCA coaxial S/PDIF
1 x TOSlink ADAT lightpipe | | MIDI In/Out | No | | Sync In/Out | 2 x BNC Wordclock I/O | | Headphone Output | 1 x 1/4" TRS phone | | THD + N | 0.0005% @ 1kHz (+9dBu in @ 6dB gain) | | Dynamic Range | A/D: 110dB
D/A: 120dB | | Gain Range | +6 to +72 dB in 6 dB steps
-14 dB to +70 dB with trim | | Input Impedance | 3.3 kΩ | | Intermodulation Distortion | 19/20 kHz at +8 dBu: -96 dBu | | Equivalent Input Noise | 150Ω source: -130.5 dBu 50Ω source: -132.0 dBu 0Ω source: -134.0 dBu | | Frequency Response | 3 to 100,000 Hz: ±3.0 dB
8 to 50,000 Hz: ±1.0 dB
18 to 20,000 Hz: ±1.0 dB | | Power Requirements | FireWire bus
1 x 4-pin XLR 9 to 30V DC (pin-4 hot) 15W
1 x 2.1 coaxial 9 to 30V DC, center post positive (+) | | Crosstalk | Trim link engaged (1,000 Hz): -107 dB
Trim link Disengaged (1,000 Hz): -132 dB | | Maximum | Gain: 72 dB
Preamp Headroom: 20 dB above digital clip
Phantom power: +48V regulated high current individually switchable | | Compliance | P48 test compliant, short circuit/hot-swap protected | | Power Rating | 8 W at 9 to 30 VDC | | Connectors | 1x 2.1 mm Coaxial
1x 4-pin XLR Broadcast Battery
1x FireWire | | System Requirements | Any Mac that supports Mac OS X
At Least one FireWire port, one port will support 3 interfaces at 44.1 and 48 kHz or two interfaces at 88.2 and 192 kHz
Universal Binary (native support for PPC and Intel)
Mac OS X 10.6.8 or newer required | | Supported Adapters | OHCI compliant PC card
PCI card
Express Card or PCIe card
Apple Thunderbolt to FireWire Adapter
Apple Thunderbolt Display
Sonnet Technology Thunderbolt to Expresscard adapter with FireWire Pro 800 ExpressCard/34 | | Supported Software | All CoreAudio compliant software is compatible with Mobile I/O, Including:
Cubase
Digital Performer
GarageBand
iTunes
Live
Logic
Nuendo
PreMaster CD
soundBlade
WaveBurner
Pro Tools | | Specialties | Sample rate conversion (SRC) on digital I/O | | Dimensions (WxDxH) | 13.50 x 8.25 x 1.73" (343 x 210 x 44mm) | | Weight | 4 lbs (1.8 kg) | | | | Package Weight | 8.65 lb | | Box Dimensions (LxWxH) | 19.4 x 14.7 x 5.1" |
