Product description The Metric Halo ULN-2 3d Custom 2 Jensen is a USB Type-C audio interface offering two mic preamps, multichannel digital I/O, DSP-powered mixing, and software control for musicians, engineers, and producers in studios and mobile setups. Each preamp is coupled to a Jensen JT16-A transformer for added harmonic distortion on mono or stereo sources. Its integrated dual-core DSP powers a variety of plug-ins—the included DSP+ license unlocks over 100 of them—without burdening your computer's CPU. Robust software ensures easy access to multitrack recording, mixing, monitoring, and more.The ULN-2 3d's 24-bit / 96 kHz converters are fed via two mic/DI/line XLR-1/4" combo inputs, which feature stepped preamp gain controls, adjustable input trims, and phantom power. Analog outputs are presented on 1/4" jacks, and include stereo main outs with selectable operating level, stereo monitor outs with a dedicated volume knob, and a headphone jack also with its own volume control. The ULN-2 3d accommodates insertion of analog outboard gear via balanced 1/4" insert connections.Properly synchronize with other digital equipment through the BNC word clock connectors, or consolidate audio, clock, and data I/O with other 3d-equipped Metric Halo interfaces via the MH Link ports. The preinstalled MH EdgeCard provides stereo AES3 and S/PDIF I/O in addition to the ULN-2 3d's standard eight-channel ADAT optical ports. The interface's front panel is packed with comprehensive metering and status indicators, showing vital information at a glance. The ULN-2 3d connects to a compatible Mac, Windows, iOS, or Linux device via the supplied USB Type-A to USB Type-C cable. Power it with the included power supply or via a 4-pin XLR power system (available separately). - 3d Card Features
-
- MH Link: Low-latency, high-bandwidth audio, clock, and data connections via Gigabit Ethernet
- MH Link Audio: Direct Ethernet Core Audio driver (with support for up to 128 channels of I/O at 192 kHz)
- MH EdgeBus: A high-bandwidth, programmable, and pluggable audio expansion slot that accommodates a range of I/O expansion cards
- MH Console: A 64-bit application to control your entire system with a simple, efficient, and flexible routing model (macOS only for Early Access versions)
- MH Mixer: 128-input / 64-bus unified zero-latency mixer
- MH MonitorControl: Integrated surround-capable monitor controller with system processing capability
- MH Record: 128-input multitrack recorder with deep hardware integration
- MH DSP Engine: Dual-core processing power and 1GB memory in the hardware, plus the +DSP license providing over a hundred plug-ins and the Metric Halo Graph environment
- Analog I/O
-
- Second-generation preamp and analog technologies
- Jensen JT16-A transformers add low-order harmonic distortion and increase common-mode rejection; imparting more color with even less noise
- Two mic/DI/line inputs via Neutrik XLR-1/4" combo jacks
- Up to 72 dB of gain via stepped 12-position rotary controls
- Per-channel trim controls offer up to 20 dB of passive attenuation
- Two balanced line-level insert sends and returns via 1/4" TRS jacks
- Allows insertion of analog outboard gear after ULN-2 preamps and before ULN-2 A/D converters
- Stereo 1/4" main outputs with selectable +4 / -10 operating level
- Stereo 1/4" monitor outputs with front-panel level control
- Stereo 1/4" headphone output with dedicated level control
- Digital I/O
-
- Eight channels of ADAT digital I/O via TOSLINK optical ports (switchable to two-channel S/PDIF)
- Preinstalled MH EdgeCard
- Stereo AES3 digital I/O via XLR 3-pin connectors
- Stereo S/PDIF digital I/O via coaxial connectors
- Word clock I/O via BNC jacks for proper clocking of multiple digital devices using word clock or SuperClock

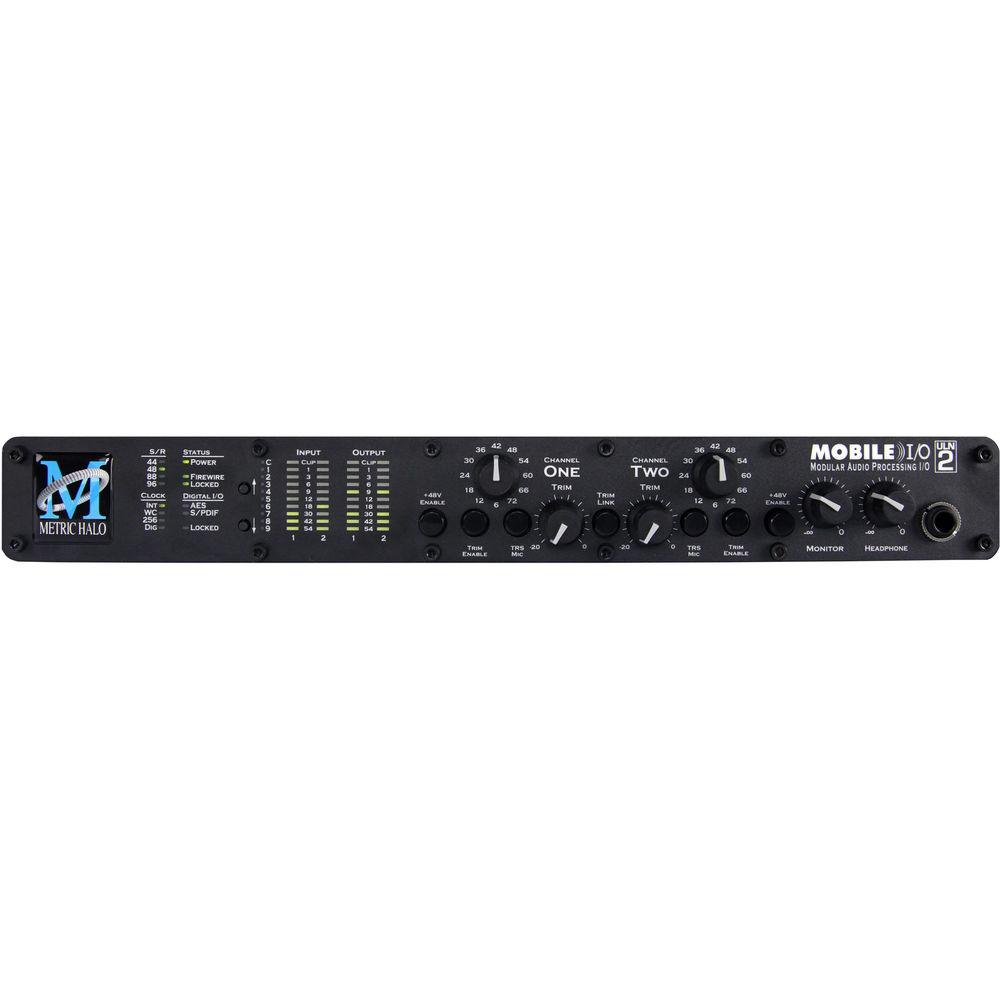

- Informative Front Panel
-
- Two ten-segment LED input meters
- Two ten-segment LED output meters
- LED indicators for sample rate, clock source/status, power, and more
- Flexible Operation
-
- Powered via included power supply or 4-pin XLR power system (available separately)
- Supports operation with host computer via USB connection
- Supports standalone operation with ten snapshots for easy storing/recall of configuration presets
- Included Accessories
-
- IEC power cable and external power supply
- USB Type-A to USB Type-C cable
- 1' Cat5e patch cable for MH Link between interfaces
- Two rack ears with fasteners
- Four rubber feet
- MIO software CD-ROM
UPC: 832081000668 In the Box Metric Halo ULN-2 3d Custom 2 Jensen USB Type-C Audio Interface with 2 Preamps, 2 Transformers & DSP IEC Power Cable 24 VDC / 48W External Power Supply USB Type-A to USB Type-C Cable 1' Cat5e MH Link Patch Cable 2 x Rack Ears with Fasteners 4 x Rubber Feet Preinstalled MH EdgeCard (AES, S/PDIF) MIO Software CD-ROM Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Metric Halo ULN-2 3d Custom 2 Jensen USB Type-C Audio Interface with 2 Preamps, 2 Transformers & DSP in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMetric Halo ULN-2 3D FW Specs | | | Channels of I/O | Analog:
2 Inputs / 2 Outputs at 96 kHz
0 Inputs / 2 Outputs at 192 kHz
Digital:
8 Inputs / 8 Outputs at 48 kHz
2 Inputs / 2 Outputs at 192 kHz | | Max Sample Rate/Resolution | 192 kHz / 24-Bit Maximum Resolution for AD/DA Conversion is 24-Bit / 96 kHz. At 176.4 kHz and 192 kHz, ADCs are Disabled, While the DACs are Functional, but Run with Reduced Fidelity. | | Display and Indicators | 2 x Multi-Segment LED Meters (Input Level)
2 x Multi-Segment LED Meters (Output Level)
4 x LEDs (Sample Rate)
5 x LEDs (Clock Source)
3 x LEDs (Host Connection, Power)

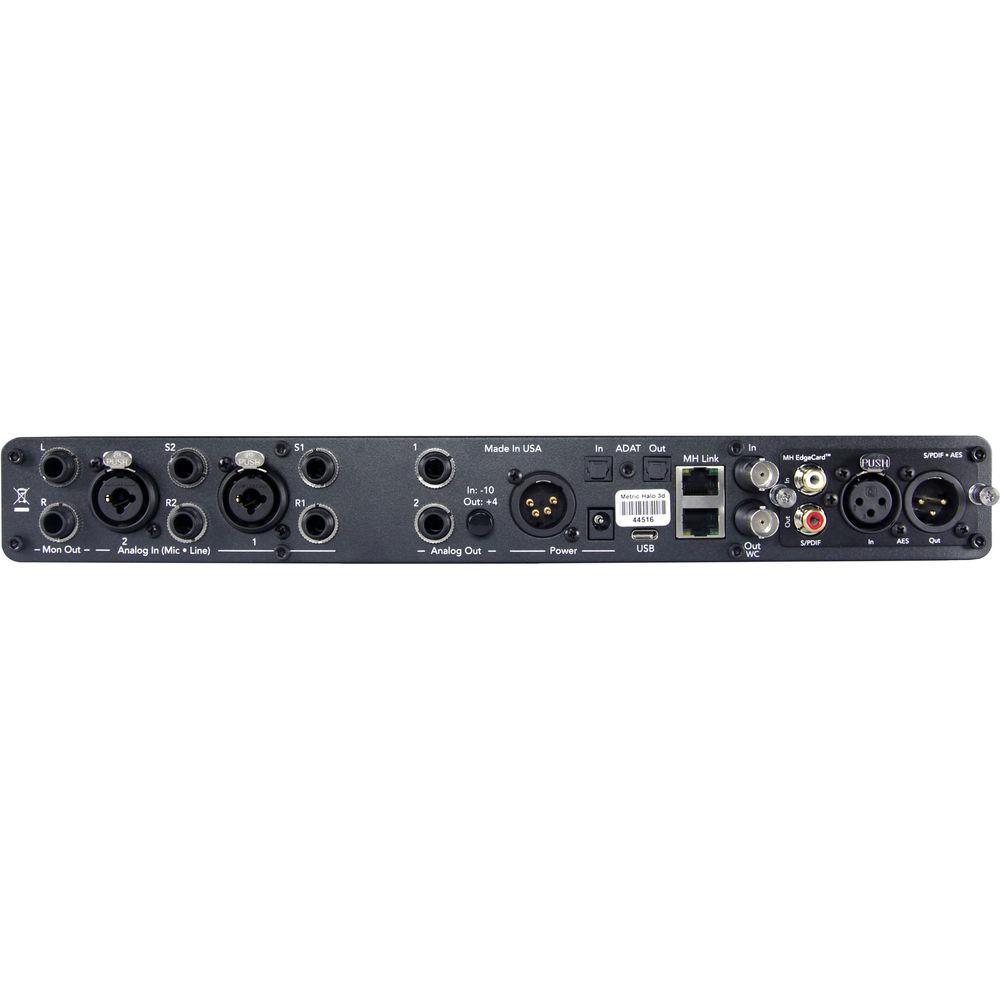

2 x LEDs (Input Selection, Output Selection) | | | | Host Connection | 1 x USB Type-C | | Analog I/O | 2 x Combo XLR / 1/4" TRS Balanced Mic/Line/Hi-Z Input
2 x 1/4" (6.3 mm) TRS Balanced Insert Output
2 x 1/4" (6.3 mm) TRS Balanced Insert Input
2 x 1/4" (6.3 mm) TRS Balanced Line Output
2 x 1/4" (6.3 mm) TRS Balanced Monitor Output
1 x 1/4" (6.3 mm) TRS Unbalanced Headphone Output | | Phantom Power | +48 V (Selectable on Individual Inputs) | | Digital I/O | 1 x TOSLINK / ADAT (I/O) Input
1 x TOSLINK / ADAT (I/O) Output
1 x RCA Coaxial / S/PDIF (I/O) Input
1 x RCA Coaxial / S/PDIF (I/O) Output
1 x XLR 3-Pin Female / AES/EBU (I/O) Input
1 x XLR 3-Pin Male / AES/EBU (I/O) Output
1 x BNC (Word Clock) Input
1 x BNC (Word Clock) Output
1 x RJ45 (MH Link) Input
1 x RJ45 (MH Link) Output | | MIDI I/O | None | | Memory Card Slot | None | | | | Frequency Response | 18 Hz to 20 kHz
