User Manual for Metz mecablitz 52 AF-1 digital Flash for Sony Cameras Click to enlarge the picture
Contents of the user manual for the Metz mecablitz 52 AF-1 digital Flash
- Product category: On Camera Flashes Metz
- Brand: Metz
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Metz On Camera Flashes
 |
User manual for the Metz mecablitz 52 AF-1 digital Flash contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Metz product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Metz user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Metz product will considerably shorten its lifespan!
|

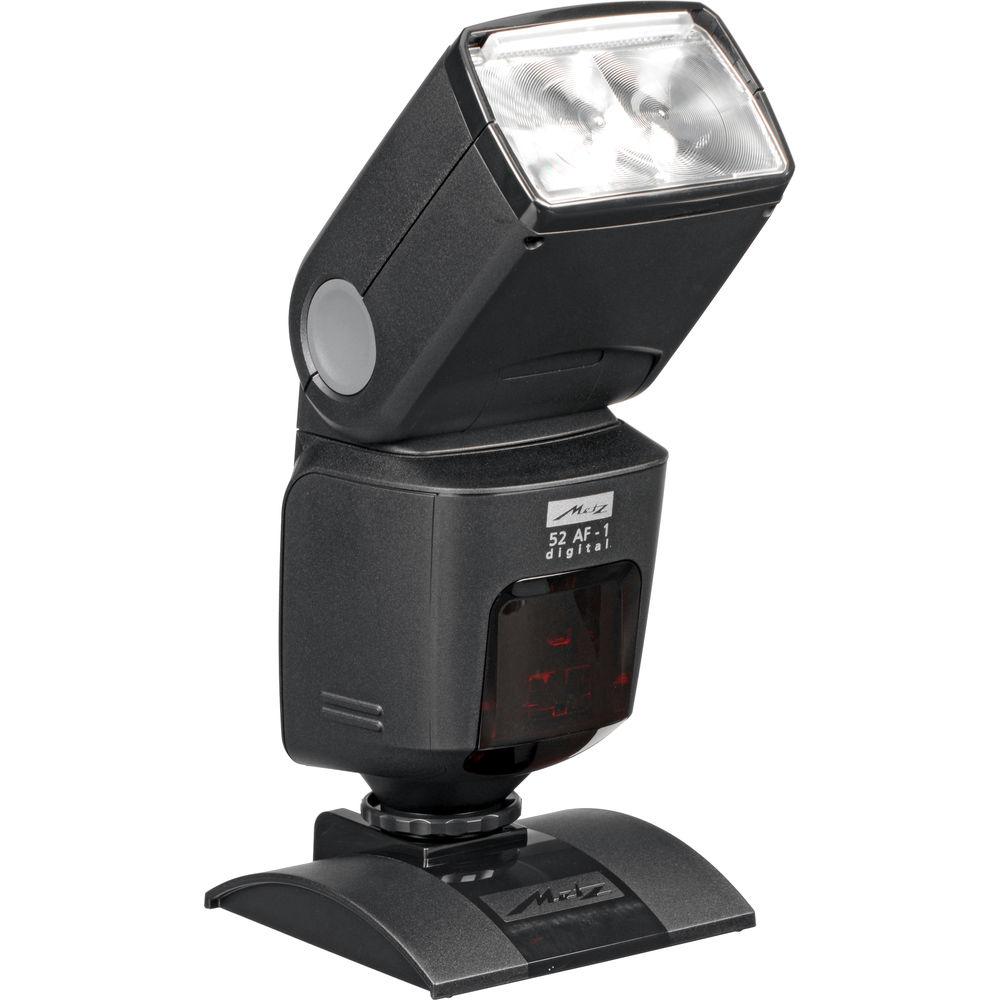

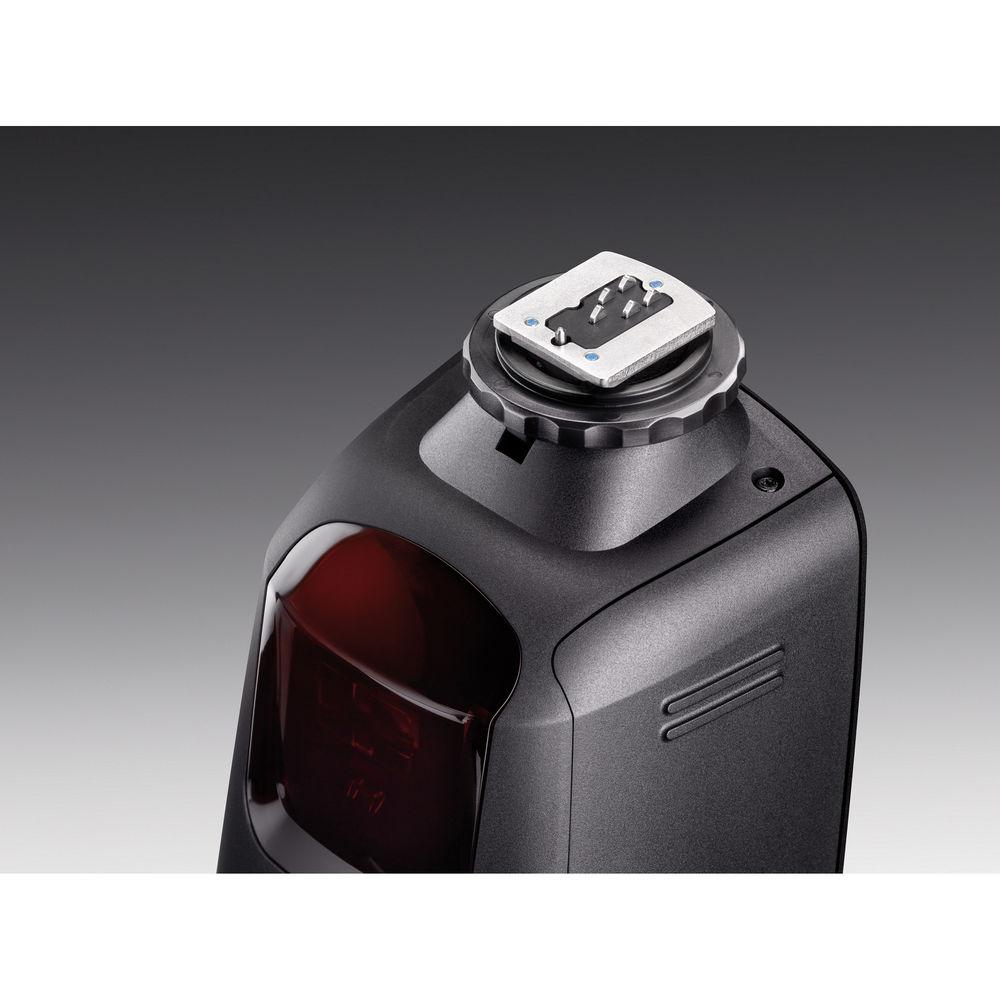

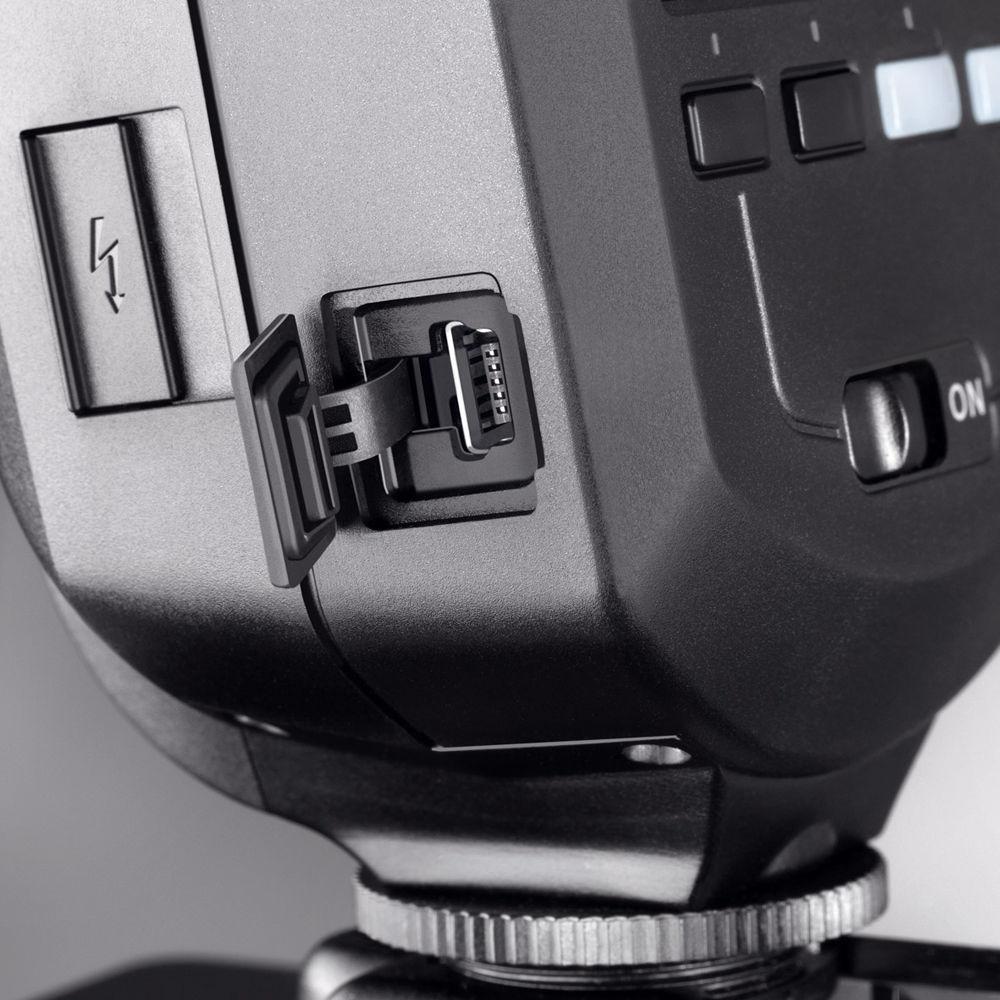

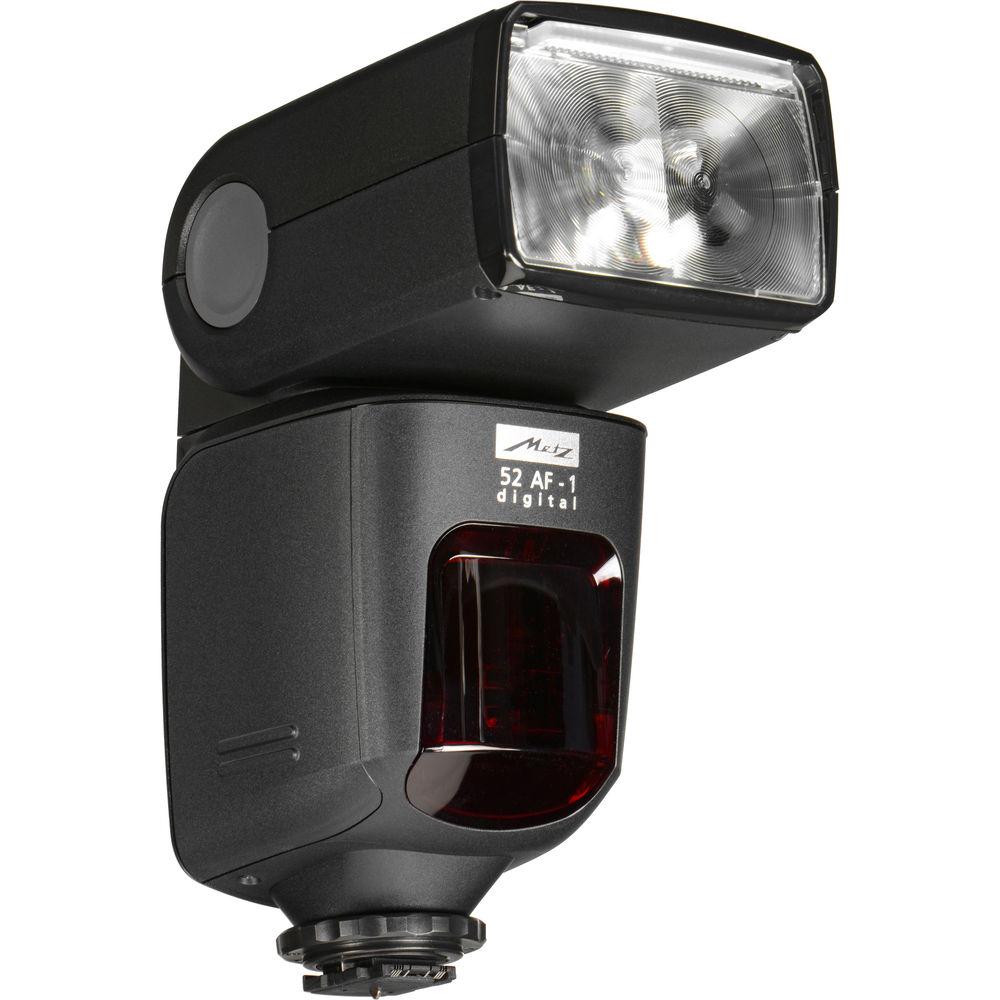

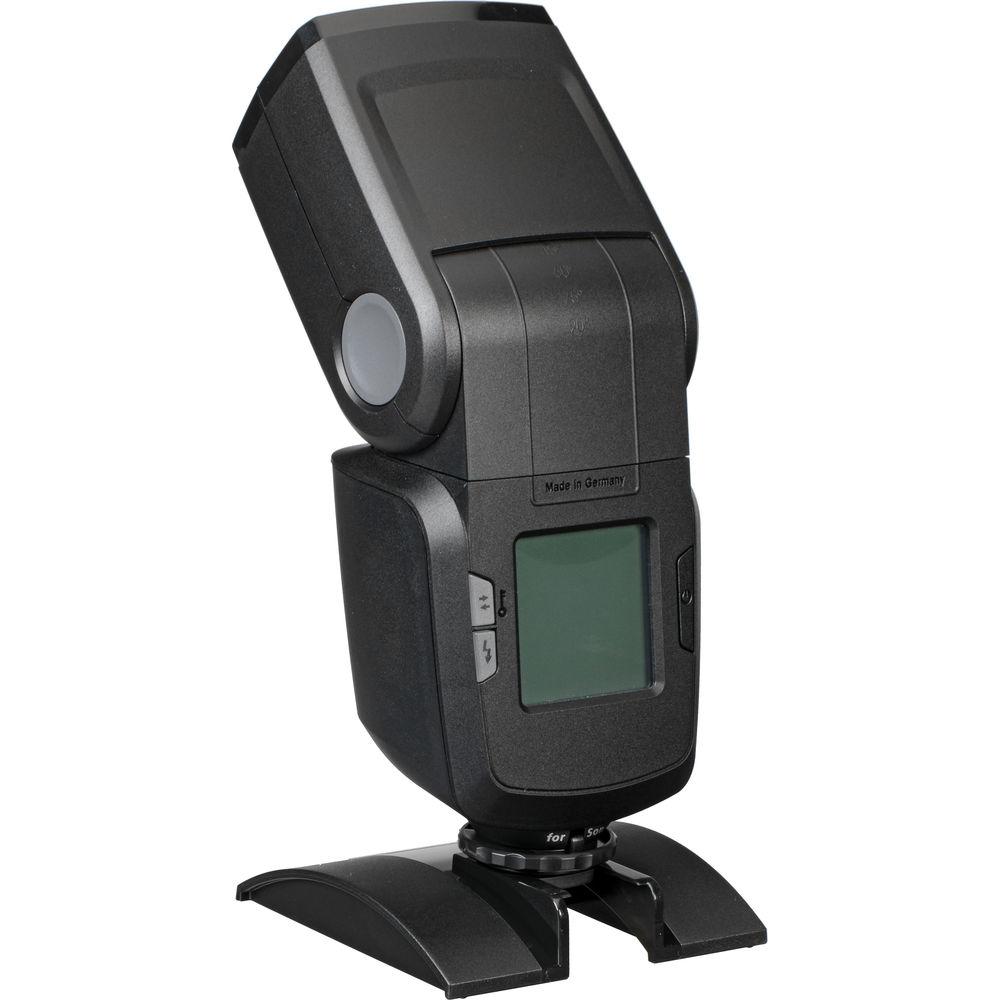

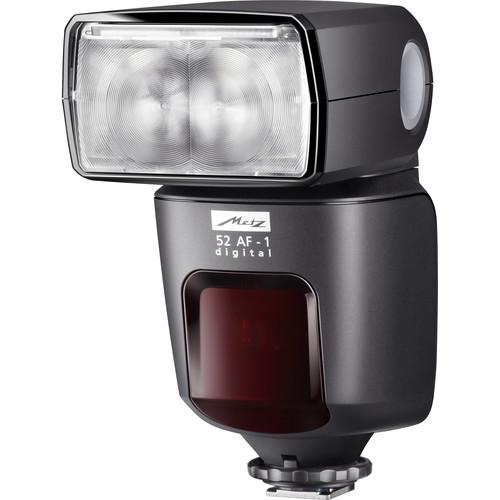

Product description The mecablitz 52 AF-1 digital Flash from Metz is a shoe mount flash, with an illuminated rear touchscreen, designed to be compatible with Sony cameras featuring ADI / P-TTL. This flash also has a high guide number of 170' at ISO 100 and 105mm as well as a built-in USB port that allows for future firmware updates via the internet. A high quality metal base allows quick and easy attachment to the camera. This flash has the Sony Multi Interface Shoe and requires the optional ADP-AMA adapter for use on cameras with the older Sony/Minolta Auto-Lock Accessory Shoe.
The 52 AF-1 is designed to fully support a Sony camera's ADI / P-TTL system. It can be operated as a TTL slave unit that can be controlled by the camera's own built-in commander mode or as a master itself.
The flash also features an auto zoom head from 24-105mm that can be set to match the camera's sensor, a full bounce and swivel head (with a fully swiveling reflector system which also contains a flip-out reflector card and a diffuser), a built-in wide angle diffuser for 12mm coverage, and in addition, full manual control from 1/1 to 1/128 power in 1/3 steps. - Fully compatible with Sony cameras and updatable via USB port
- High-speed flash synchronization allows flash to be used with any shutter speed

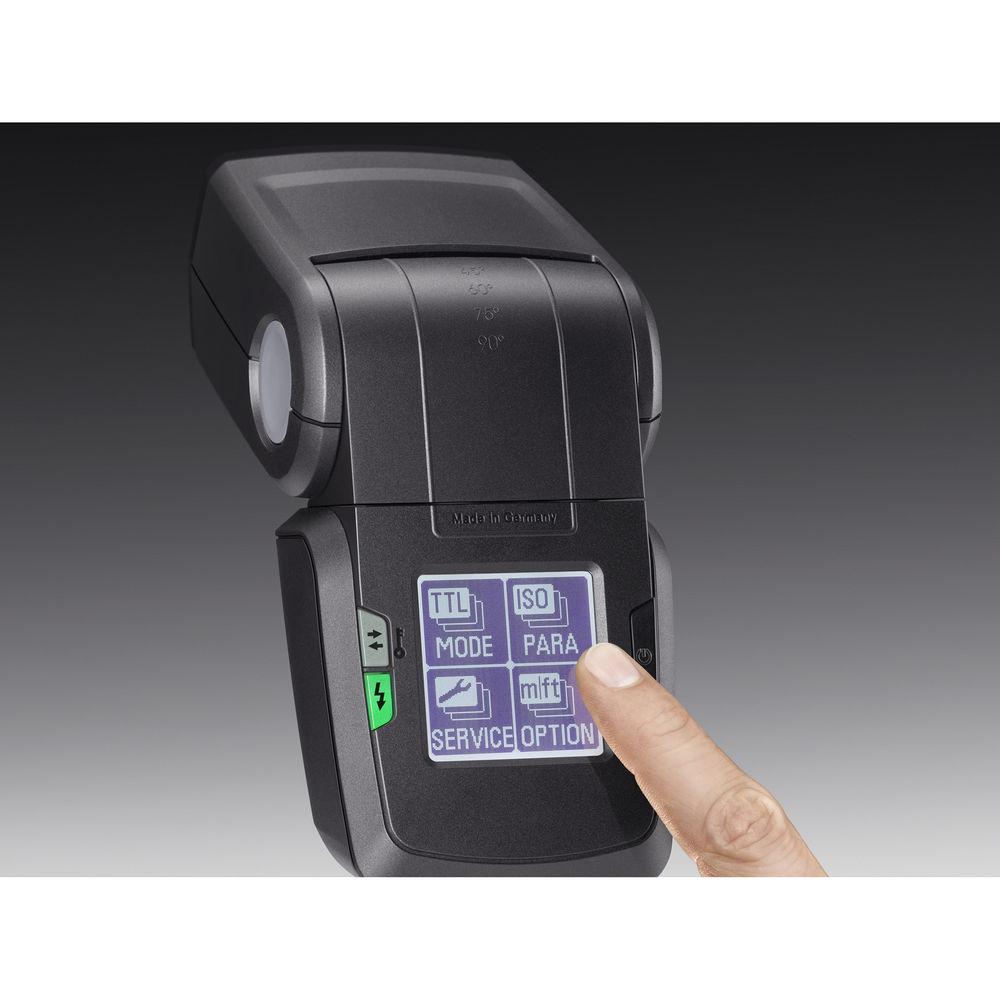

- Operate the 52 AF-1 via its illuminated graphic display by directly touching the display indicators. For portrait shots, the display rotates the touchscreen display by 90°
- Wireless full TTL triggering via a camera or flash with commander/master mode
- Autozooming head can cover from 24 to 105mm, and 12mm when used with the included wide-angle diffuser
UPC: 719821384656 In the Box Metz mecablitz 52 AF-1 digital Flash for Sony Cameras Belt Pouch Slave Stand Limited 1-Year Warranty User Manual PDF 3.4mbbsctdderyvrvtydusqyvyavexr Table of Contents
|
Upload User Manual
Have you got an user manual for the Metz mecablitz 52 AF-1 digital Flash for Sony Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMetz AF-1 Specs | Mount | Shoe | | Guide No. | 170.6' / 52 m ISO 100 at 105 mm Position | | Angle of Coverage | 90°
Wide-Angle Adapter: 300° | | Vari-Power | 1/1 to 1/128 | | Bounce Head | Yes | | Swivel Head | Yes, 300° | | Zoom Head | Full Frame: 24 - 105 mm | | Off-Camera Terminal | None | | Recycle Time | Approximately 0.1 to 3.5 Seconds | | Flash-Ready Indicator | Yes | | Wireless Communication Channels | 4 Channels | | Wireless Groups | 3 Groups | | Power Source | 4 x AA Batteries | | Dimensions (W x H x D) | 2.9 x 5.3 x 3.5" / 7.3 x 13.4 x 9.0 cm | | Weight | 12.20 oz / 346 g Without batteries | | | | Package Weight | 2.1 lb | | Box Dimensions (LxWxH) | 8.8 x 6.1 x 3.9" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 94 owners. Add your rating and experience with the product.
