User Manual for Metz mecablitz 64 AF-1 digital Flash for Olympus Panasonic Leica Cameras Click to enlarge the picture
Contents of the user manual for the Metz mecablitz 64 AF-1 digital Flash
- Product category: On Camera Flashes Metz
- Brand: Metz
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Metz On Camera Flashes
 |
User manual for the Metz mecablitz 64 AF-1 digital Flash contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Metz product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Metz user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Metz product will considerably shorten its lifespan!
|

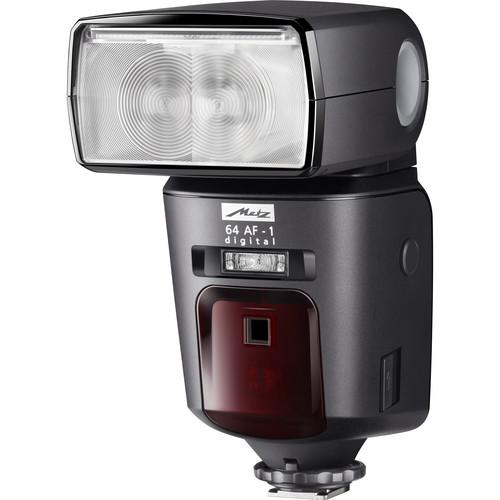

Product description The Metz mecablitz 64 AF-1 digital Flash is a powerful unit with a guide number of 210' at ISO 100 and 200mm that works with Olympus/Panasonic/Leica TTL . The unit features an automatic zoom with a range between 24-200mm and comes with a built-in wide-angle diffuser that extends its reach to 12mm. The 64 AF-1 also has a secondary light reflector with two output levels for achieving even lighting as well as wireless functionality as either a master or slave unit with ratio control options

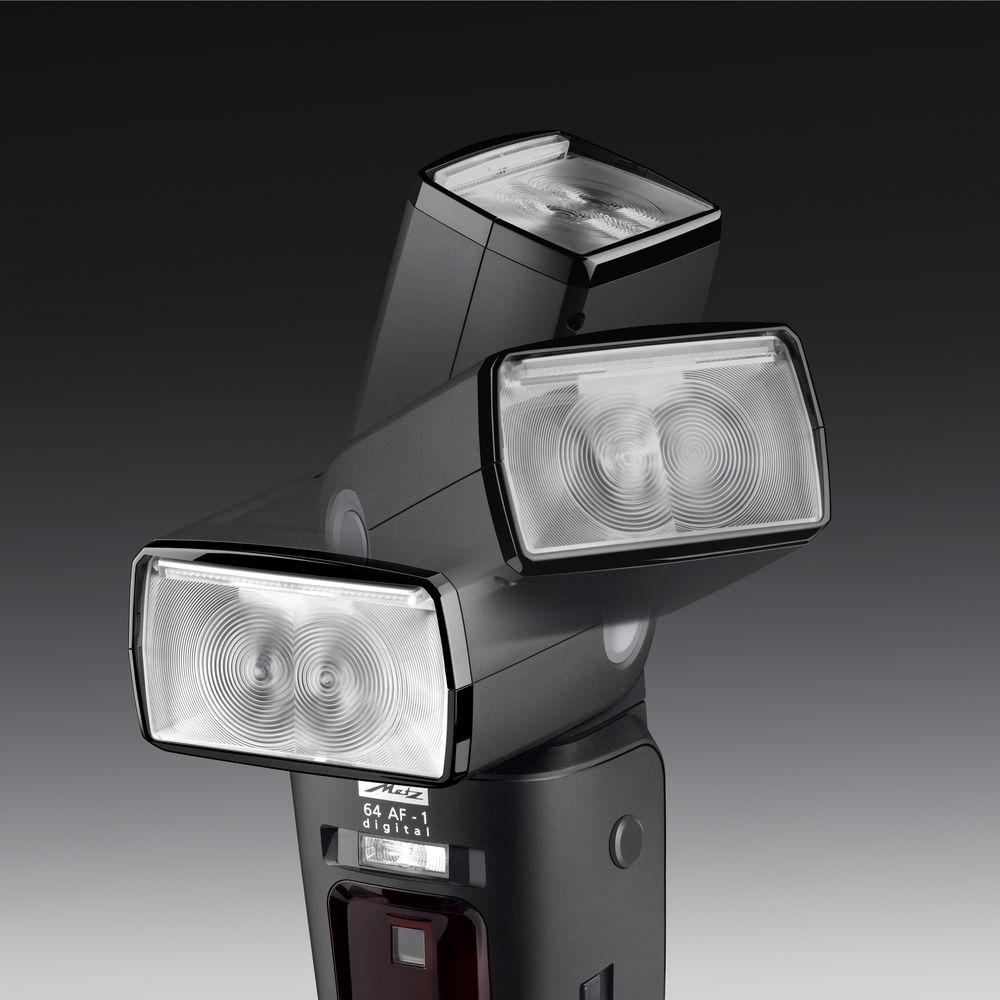

The flash head can tilt from -9 to +90° and rotated 300° for use in a variety of situations and features a modeling light for previewing the look of shadows before taking a shot. There is also a color LCD touchscreen on the rear of the flash that allows you to quickly see and change settings. Multiple flash modes are available, included strobe and server with a learning function. High-speed, first, and second curtain synchronization is possible and the device has sync, power, and USB ports built-in. It also comes with a carrying bag and stand. - Maximum guide number of 210' at ISO 100 and 200mm
- Automatic zoom range of 24-200mm with additional spot and extended zoom modes and an integrated wide-angle diffuser that extends the range to 12mm
- Built-in white reflector card
- Modeling light option for previewing lighting
- Multiple zone autofocus flash metering
- Flash readiness display and acoustic status notifications
- Manual flash power from 1/1 to 1/256 is 1/3 step increments
- Automatic flash power with 12 aperture values
- Four programmable settings

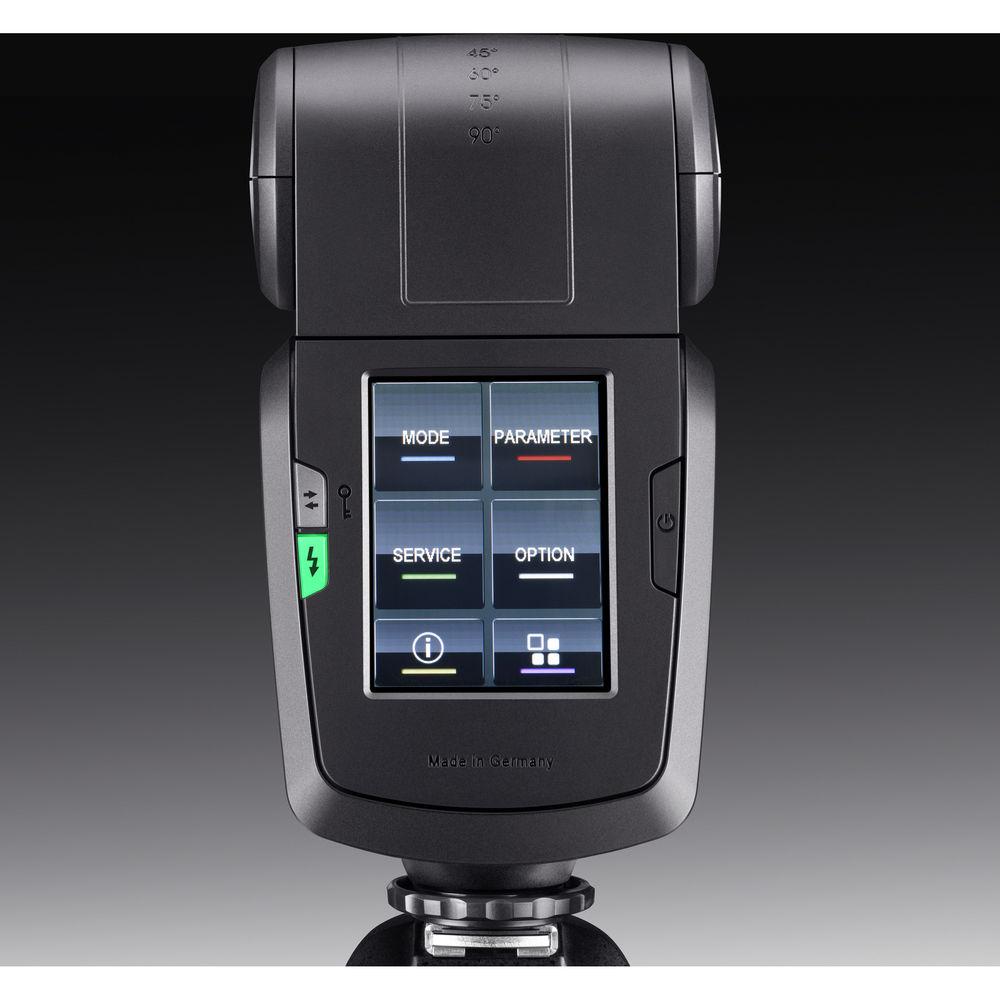

- Color touchscreen display with range display
- Integrated sync port and power pack socket
- USB port for updating the flash firmware
- High-speed, first and second curtain sync options
- Automatic shut off and manual key lock
- Manual flash exposure correction and bracketing available
- Automatic fill-in flash, rapid, strobe, and servo flash with learning curve modes

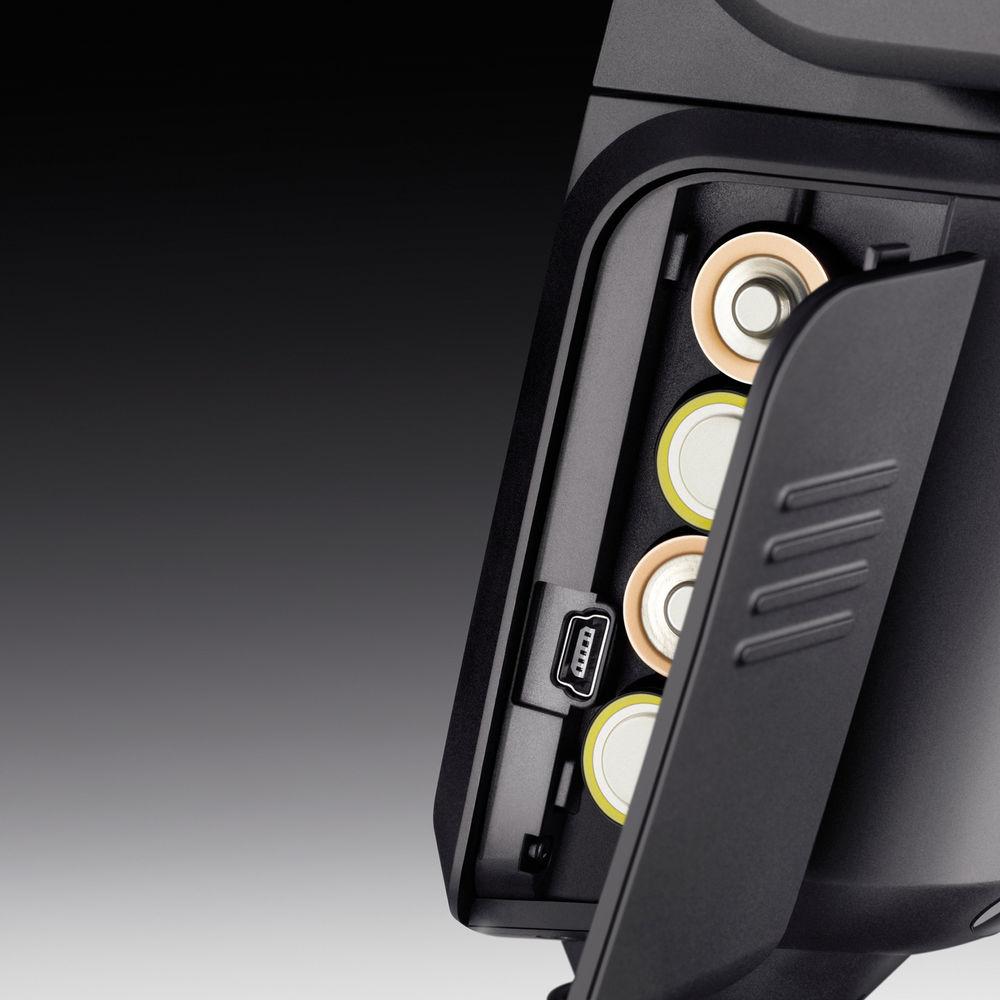

- Runs on four AA batteries or Power Pack
UPC: 719821382355 In the Box Metz mecablitz 64 AF-1 digital Flash for Olympus/Panasonic/Leica Cameras Carrying Case Flash Stand Limited 1-Year Warranty User Manual PDF 1.4mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Metz mecablitz 64 AF-1 digital Flash for Olympus Panasonic Leica Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMetz 64 AF-1 Specs | Mount | Shoe | | Guide No. | 209.97' / 64 m ISO 100 at 200 mm Position | | Vari-Power | 1/1 to 1/256 | | Bounce Head | -9 to +90° | | Swivel Head | 300° | | Coverage | 12 - 200 mm (Full Frame) | | Zoom Head | Full Frame: 24 - 200 mm | | Off-Camera Terminal | PC | | Recycle Time | Approximately 0.1 to 4.4 Seconds | | Flash Duration | 1/180 to 1/18000 sec | | Flash-Ready Indicator | Yes | | Compensation | -3 EV to +3 EV (in 1/3 EV steps) | | Slave Timing Modes | Instant Sync
Skip Preflash | | Wireless Communication Channels | 4 Channels | | Wireless Groups | 3 Groups | | Power Source | 4 x AA Alkaline, Lithium, Rechargeable NiMH Batteries | | Dimensions (W x H x D) | 3.1 x 5.8 x 4.4" / 7.9 x 14.7 x 11.2 cm | | Weight | 1.97 lb / 895 g | | | | Package Weight | 2.4 lb | | Box Dimensions (LxWxH) | 9.3 x 6.1 x 4.1" |
