User Manual for Metz mecablitz 76 MZ-5 digital Flash Click to enlarge the picture
Contents of the user manual for the Metz mecablitz 76 MZ-5 digital Flash
- Product category: On Camera Flashes Metz
- Brand: Metz
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Metz On Camera Flashes
 |
User manual for the Metz mecablitz 76 MZ-5 digital Flash contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Metz product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Metz user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Metz product will considerably shorten its lifespan!
|

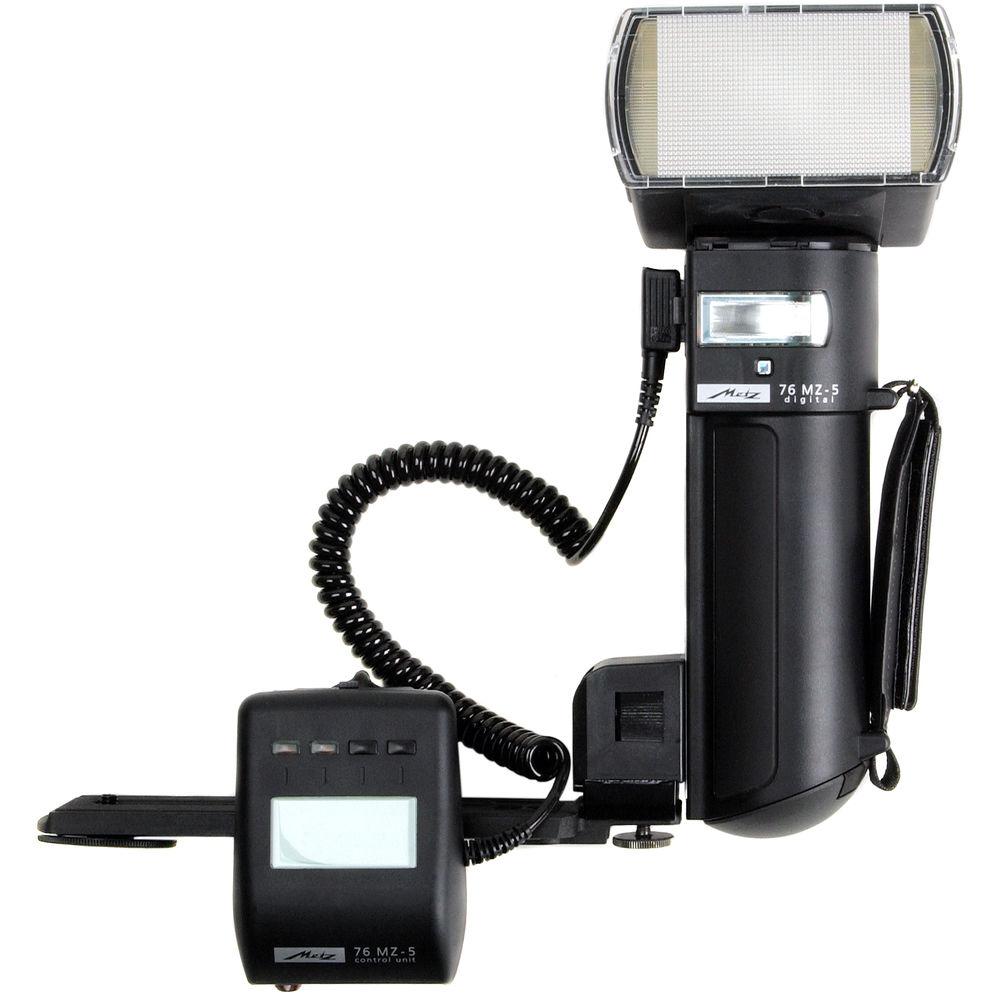

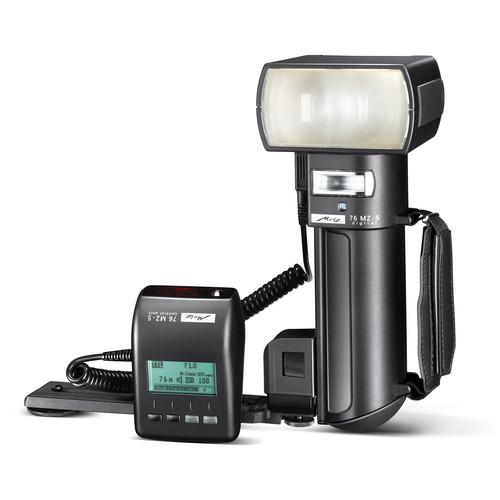

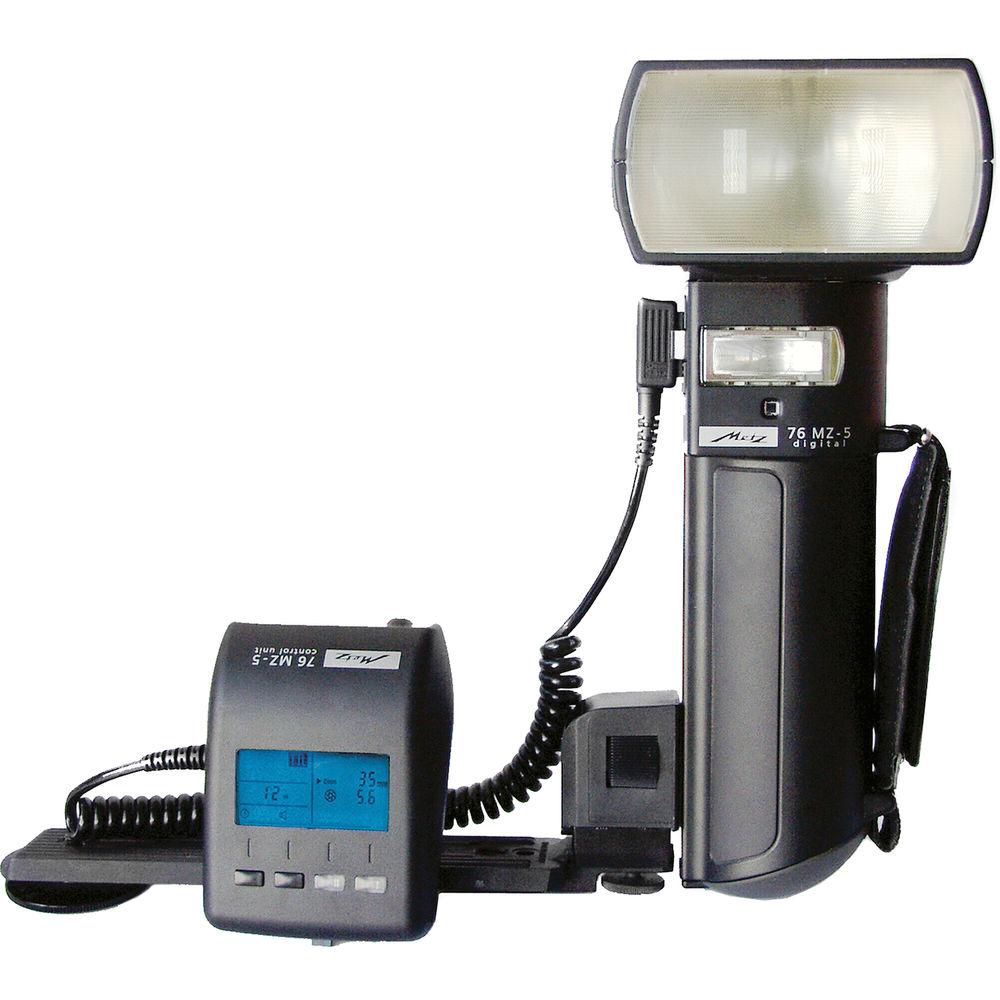

Product description Extremely powerful and compatible with any of Metz's SCA TTL adapters, the handle mount mecablitz 76 MZ-5 digital Flash is extraordinarily versatile and features an ISO shoe-mount controller unit. The guide number of 249' at ISO 100 and the maximum zoom setting of 105mm, this portable unit can easily light a subject or scene. Also, the head can zoom from 24-105mm and can even offer coverage for a 20mm lens with the use of a wide-angle diffuser. The flash head even has complete bounce capabilities with tilting upward 90° and rotation 90° right and 180° left.

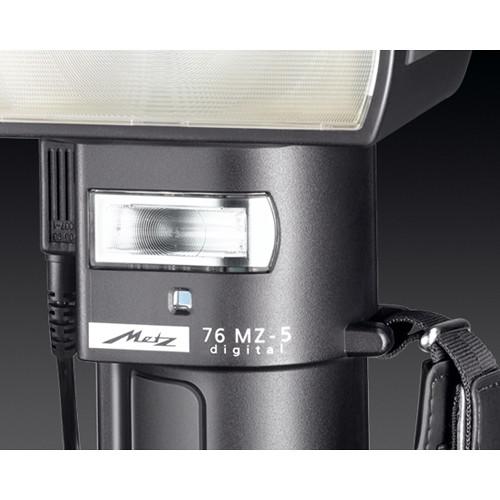

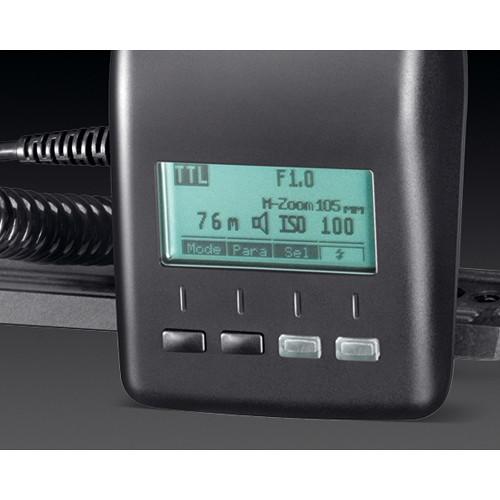

When used with a SCA TTL adapter, the 76 MZ-5 can function as either a wireless master or slave flash with full TTL compatibility. A stroboscopic setting is also available for up to 50 flashes at a rate of 1-50 Hz. Other capabilities include slow, 1st and 2nd curtain synchronization with the correct adapters and cameras and it will recycle in 0.1 to 5 seconds. Additionally, it runs on the included rechargeable NiMH battery pack. - Control unit with LCD display and integrated AF measuring flash
- Auto-zoom head can cover from 24 to 105mm, and 20mm when used with the included wide-angle diffuser
- Wireless full TTL triggering
- Compatible with SCA 3002 and 300 adapter systems

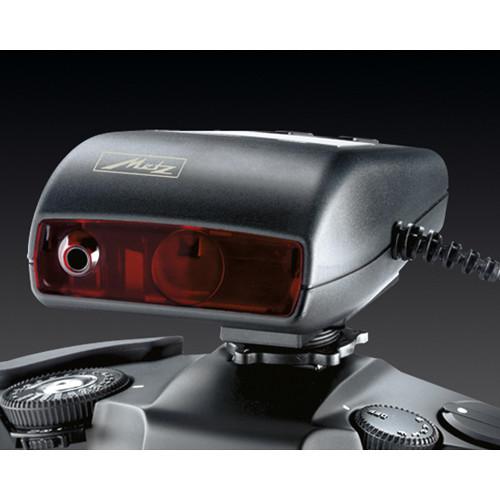

- Infrared AF assistance (with applicable autofocus camera module)
- Secondary reflector can be used to fill in the shadows in close-up areas when using indirect flash
- Excellent power capacity: NiMH rechargeable 1600 mAh battery yields 135, Powerpack P50 yields 150
- Evaluative preflash metering & Stroboscopic flash for previewing effect
- Rapid mode shortens the flash recycling time
- Automatic flash bracketing function for optimal exposure security
- "Key" function prohibits accidental changing of controls
- Compatible TTL Systems
-
- Canon E-TTL / E-TTL II with SCA 3102 adapter
- Nikon i-TTL with SCA 3402 adapter
- Olympus/Panasonic Four Thirds TTL with SCA 3202 adapter
- Pentax P-TTL with SCA 3702 adapter
- Leica TTL with SCA 3502 adapter
- Sony/Minolta ADI / P-TTL with SCA 3402 adapter
UPC: 719821260851 In the Box Metz mecablitz 76 MZ-5 digital Flash - Controller Unit
- SCA 301 Standard Flash Shoe Adapter for the SCA System

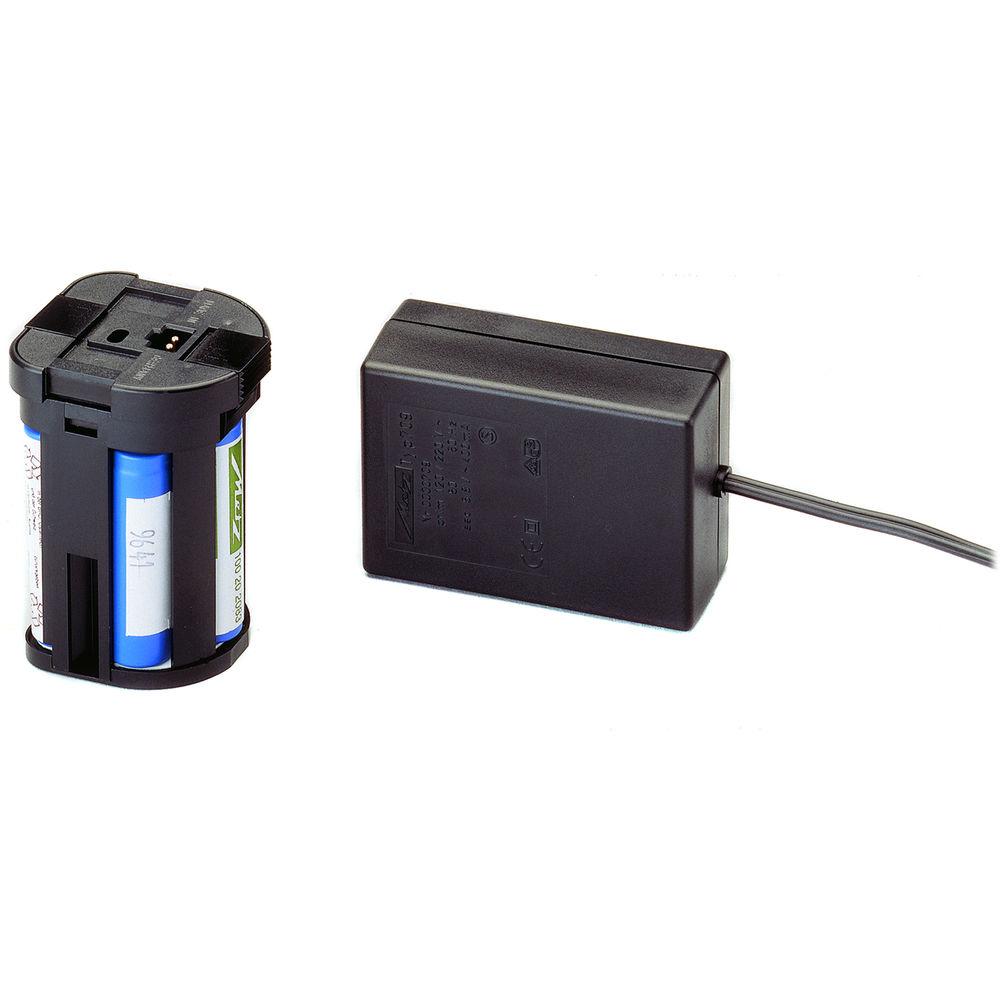

- 76-56 NiMH Rechargeable Battery
- Battery Charger
- Wide Angle Lens Adapter (20mm)
- #5512 Quick Release Camera Bracket
- Limited 1-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Metz mecablitz 76 MZ-5 digital Flash in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMetz 76 MZ-5 Specs | Mount | Handle | | Guide No. | 249.34' / 76 m ISO 100 at 105 mm Position | | Angle of Coverage | 86° - 23°
Wide-Angle Adapter: 95° | | Vari-Power | 1/1 to 1/256 | | Bounce Head | 0 to +90° | | Swivel Head | 270° | | Coverage | 20 - 105 mm (Full Frame) | | Zoom Head | Full Frame: 24 - 105 mm | | Off-Camera Terminal | Proprietary | | Recycle Time | Approximately 0.1 to 5 Seconds | | Flash Duration | 1/150 to 1/20000 sec | | Flash-Ready Indicator | Yes | | Compensation | -3 EV to +3 EV (in 1/3 EV steps) | | Power Source | 1 x Proprietary Rechargeable NiMH Battery | | Dimensions (W x H x D) | 4.1 x 9.6 x 4.6" / 103.0 x 244.0 x 118.0 mm | | Weight | 1.94 lb / 880 g handle mount without batteries | | | | Package Weight | 0.55 lb | | Box Dimensions (LxWxH) | 12.205 x 11.339 x 5.591" |
