User Manual for Metz mecablitz M400 Flash for Canon Cameras Click to enlarge the picture
Contents of the user manual for the Metz mecablitz M400 Flash for Canon
- Product category: On Camera Flashes Metz
- Brand: Metz
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Metz On Camera Flashes
 |
User manual for the Metz mecablitz M400 Flash for Canon contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Metz product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Metz user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Metz product will considerably shorten its lifespan!
|

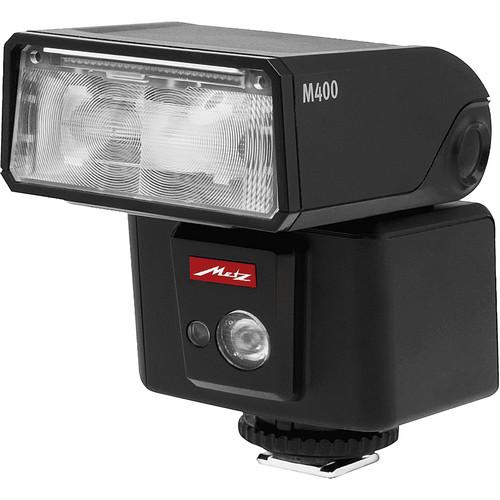

Product description A Guide to On-Camera Flash Read More Powerful and compact, the mecablitz M400 Flash from Metz is designed to pair perfectly with smaller mirrorless cameras. This model offers full E-TTL / E-TTL II support for Canon for offering numerous automatic features. Optimized for maximum light output, the M400 features a guide number of 131' at ISO 100 and the 105mm zoom setting. It also offers a zoom range of 24-105mm with a built-in diffusion panel that expands coverage to 12mm lenses. Additionally, for hybrid shooters, the M400 has an LED video light with six output levels that is useful for video.

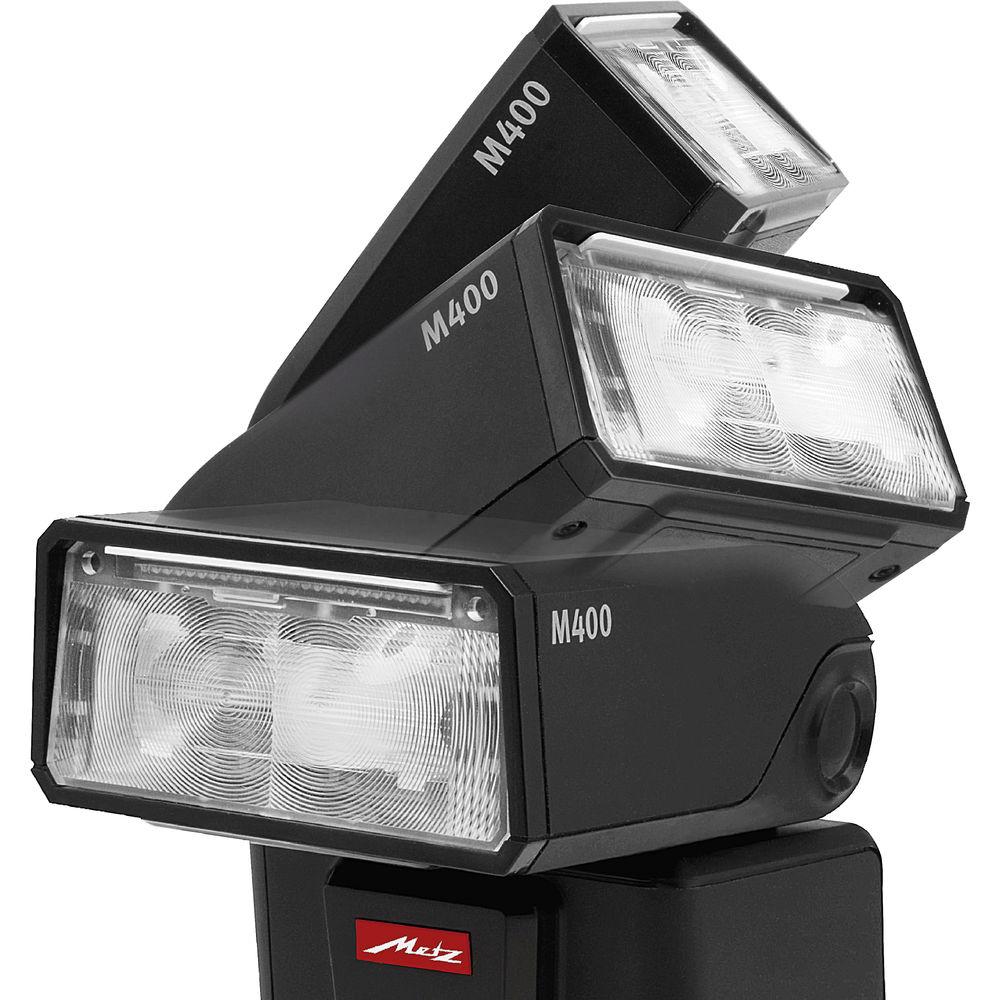

The flash offers a full range of motion for bounce lighting techniques, including tilt from -9 to 90° and rotation totaling a full 360°. For remote firing, the M400 offers wireless TTL master and slave functionality with support for Canon's E-TTL / E-TTL II metering. It also is equipped with an OLED display that offers a crisp view of settings. Users will be able to work quickly with the M400 thanks to recycle times between 0.1 and 3.2 seconds. And, it offers slow, high-speed, 1st and 2nd curtain sync options. - Guide number of 131' at ISO 100 and 105mm

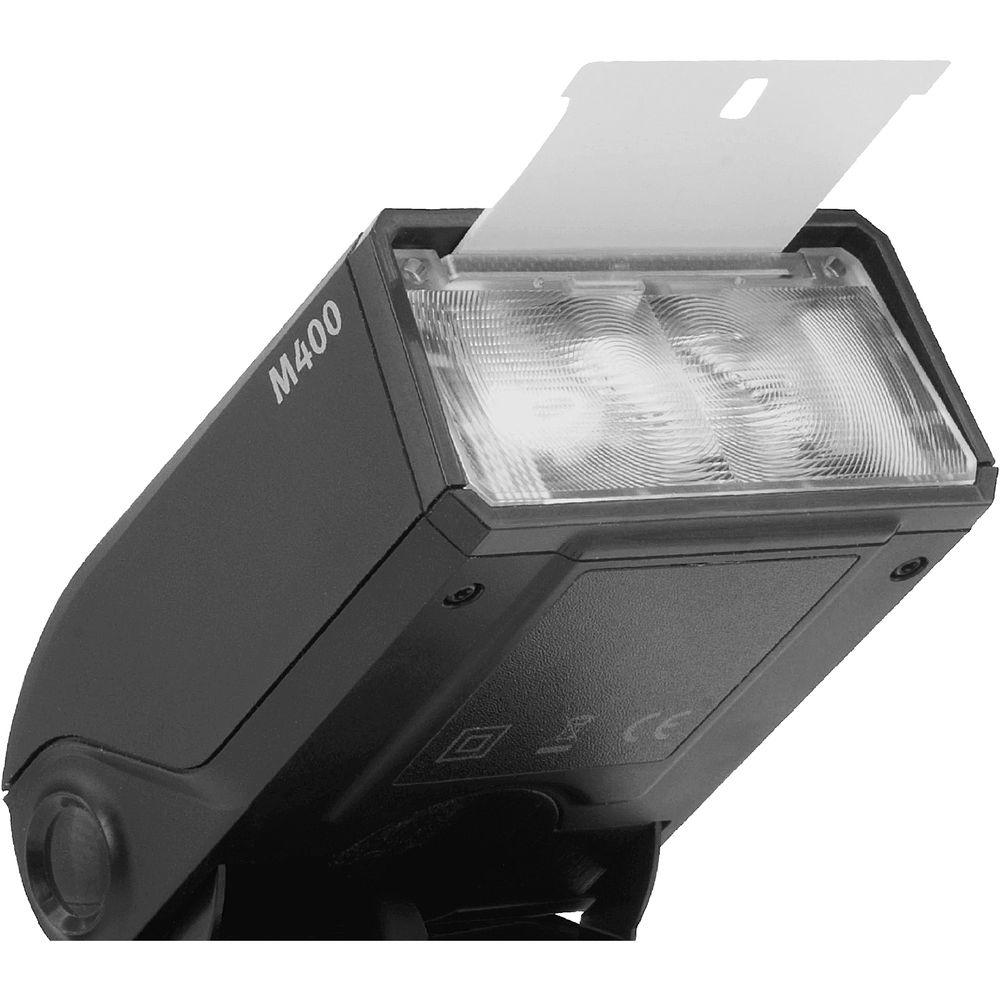

- Zoom range of 24-105mm with a pull-out diffusion panel that expands coverage to 12mm

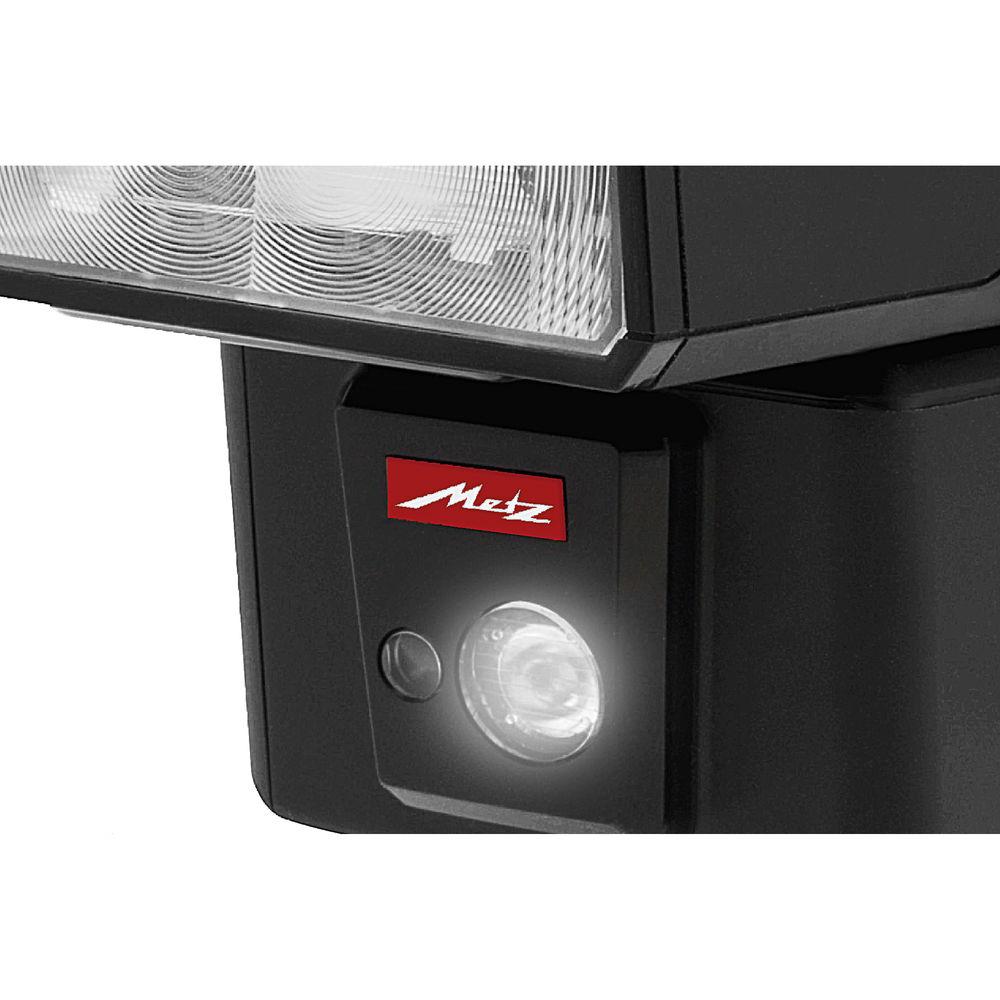

- LED video light with 6 settings and a maximum output of 100 lux at 3.3'
- Manual power settings from 1/1 to 1/256
- Exposure compensation from -3 to +3 EV in 1/3 EV steps

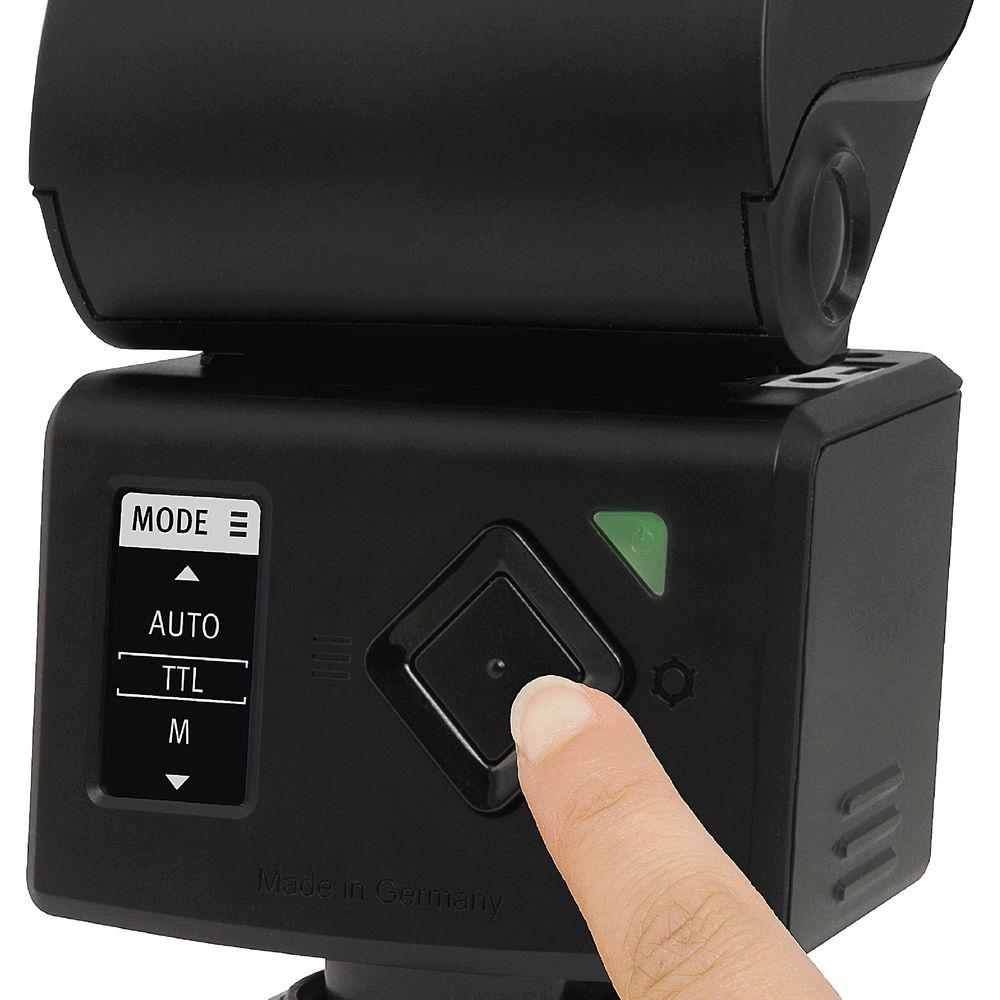

- OLED display and intuitive controls

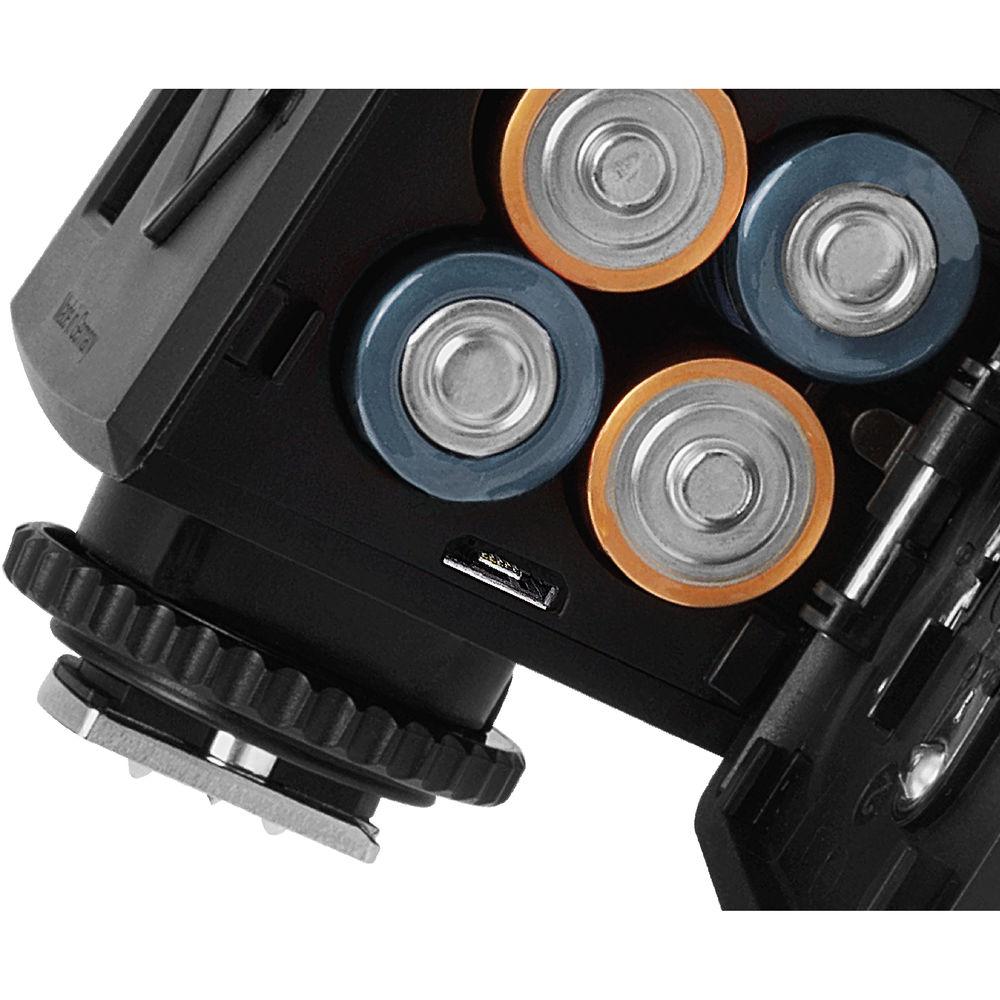

- Micro-USB port for firmware updates
UPC: 719821414667 In the Box Metz mecablitz M400 Flash for Canon Cameras Stand Bag Limited 1-Year Warranty User Manual PDF 1.4mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Metz mecablitz M400 Flash for Canon Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMetz M400 Specs | Mount | Shoe | | Guide No. | 131.23' / 40 m ISO 100 at 105 mm Position | | Exposure Control | E-TTL / E-TTL II, Manual | | Vari-Power | 1/1 to 1/256 | | Bounce Head | -9 to +90° | | Swivel Head | 360° | | Coverage | 12 - 105 mm (Full Frame) | | Zoom Head | Full Frame: 24 - 105 mm | | Off-Camera Terminal | None | | Recycle Time | Approximately 0.1 to 3.2 Seconds | | Flash Duration | 1/900 to 1/25000 sec | | Flash-Ready Indicator | Yes | | Compensation | -3 EV to +3 EV (in 1/3 EV steps) | | Wireless Communication Channels | 4 Channels | | Wireless Groups | 3 Groups | | Power Source | 4 x AA Alkaline, Lithium, Rechargeable NiMH Batteries | | Dimensions (W x H x D) | 2.6 x 3.7 x 3.4" / 65.0 x 94.1 x 86.8 mm | | Weight | 7.76 oz / 220 g without batteries | | | | Package Weight | 0.85 lb | | Box Dimensions (LxWxH) | 5.6 x 4.4 x 4.4" |
