User Manual for Metz WT-1 Wireless Trigger Kit for Canon Click to enlarge the picture
Contents of the user manual for the Metz WT-1 Wireless Trigger Kit for
- Product category: Radio & Infrared Transmitters Metz
- Brand: Metz
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Metz Radio & Infrared Transmitters
 |
User manual for the Metz WT-1 Wireless Trigger Kit for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Metz product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Metz user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Metz product will considerably shorten its lifespan!
|

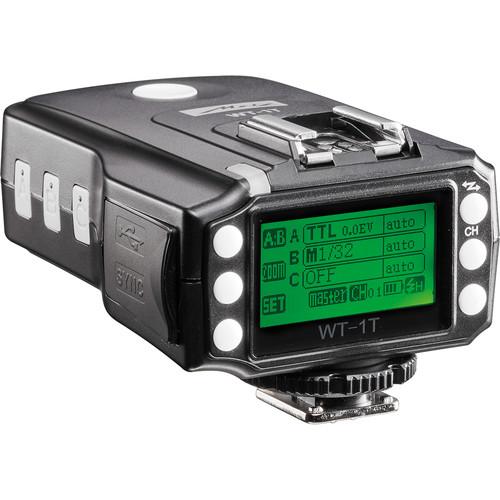

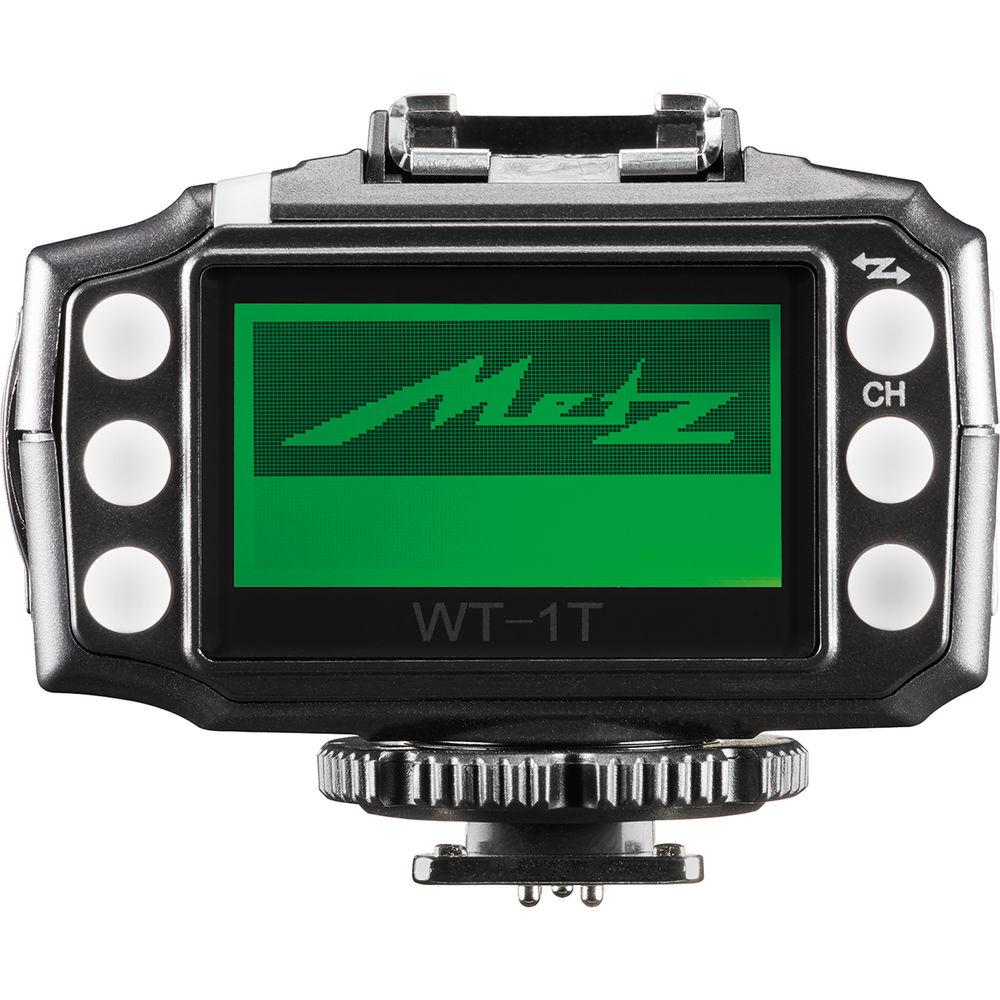

Product description Trigger Distant Flashes with the Metz WT-1 Wireless System Read More Get started with wireless flash for your Canon E-TTL / E-TTL II system with this WT-1 Wireless Trigger Kit from Metz. It bundles together a transceiver and a receiver, the essential pieces to a remote flash setup, which use a 2.4 GHz frequency to achieve a maximum range of 984'. The setup also permits full TTL transmission, including high-speed sync, as well as manual control. - WT-1T Wireless Transceiver for Canon Create a long range wireless flash setup with ease by picking up the WT-1T Wireless Transceiver from Metz. By using a reliable 2.4 GHz radio signal and a selection of 15 channels, users will be able to trigger receivers up to 984' away, without requiring line-of-sight and with minimal interference. Also, this system is compatible with Canon's E-TTL / E-TTL II flashes, permitting both TTL and manual control options and support for high-speed sync at up to 1/8000 second. Users will even have access to a TTL pass-through hot shoe on the top for using a flash directly on camera or setting up this transceiver unit as a receiver.

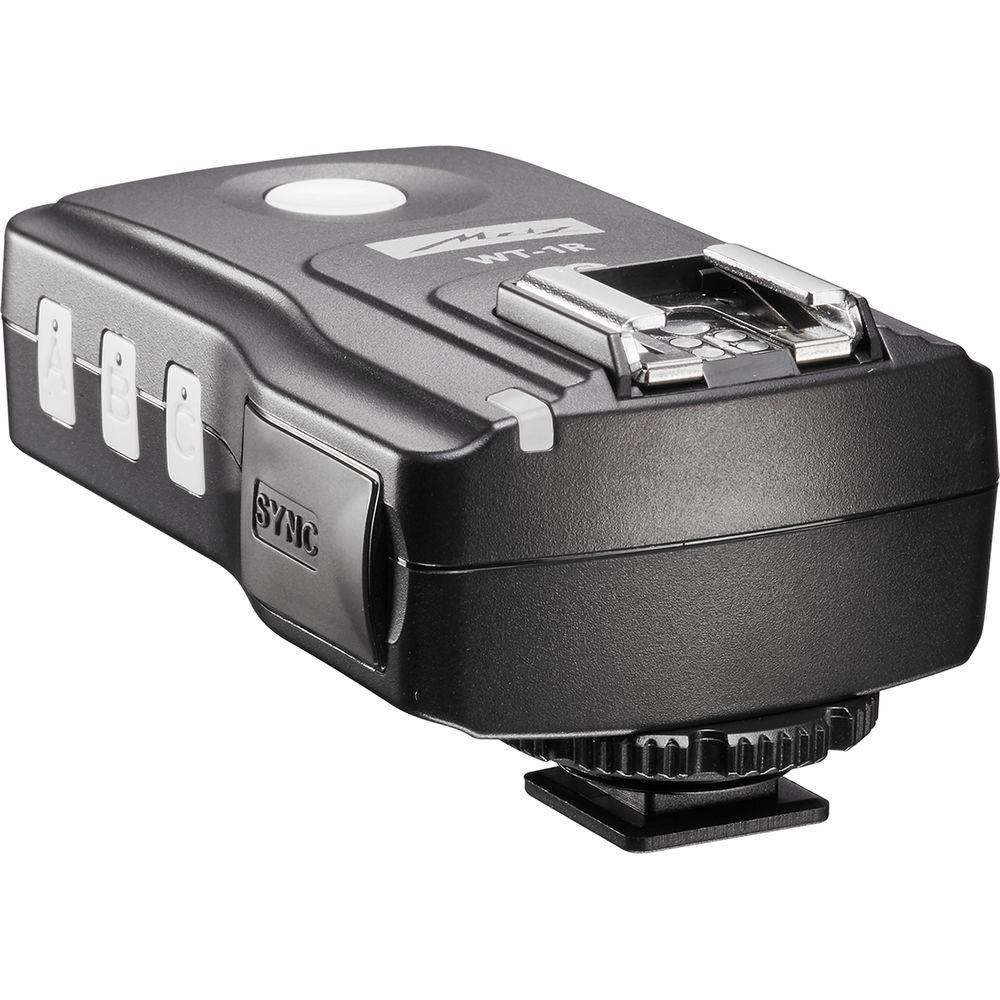

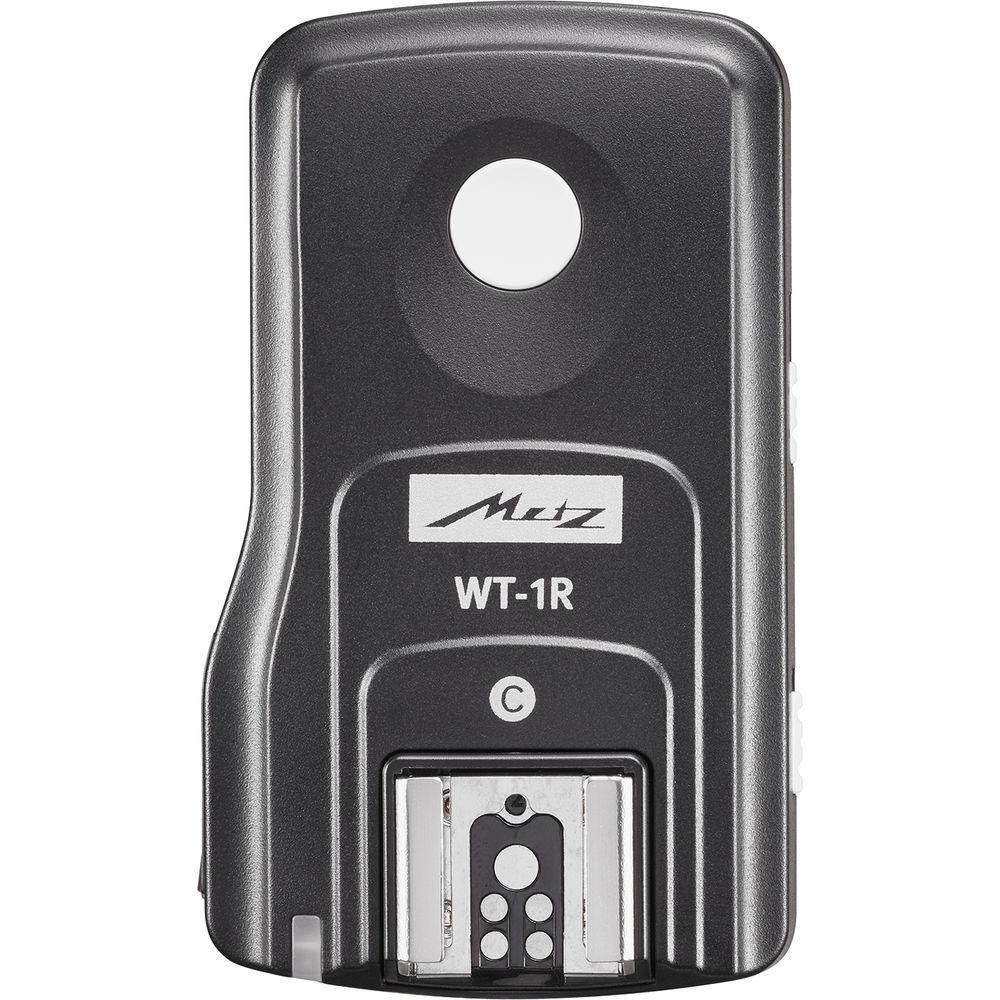

When multiple flashes are involved, the WT-1T offers group control with three groups for creating more elaborate setups. It also has a backlit LCD screen to show and change current settings as well as a standard sync port for use with studio strobes. Additionally, it has a USB connection for firmware updates. UPC: 719821420927 - WT-1R Wireless Receiver for Canon Expand your wireless flash system or add radio triggering to an existing flash with this WT-1R Wireless Receiver from Metz. Designed with support for Canon's E-TTL / E-TTL II flash system, this 2.4 GHz receiver will operate at distances up to 984' while transmitting full TTL information. Also, by using a radio system you can position flashes without needing to worry about maintaining line-of-sight with a trigger. Other benefits of this system are options for manual control as well as high-speed sync support at up to 1/8000 second. Additionally, it has a top hot shoe for mounting a flash as well as a standard sync port for working with studio strobes. It is easy to mount as well, featuring a locking foot with a 1/4"-20 thread. UPC: 719821420958

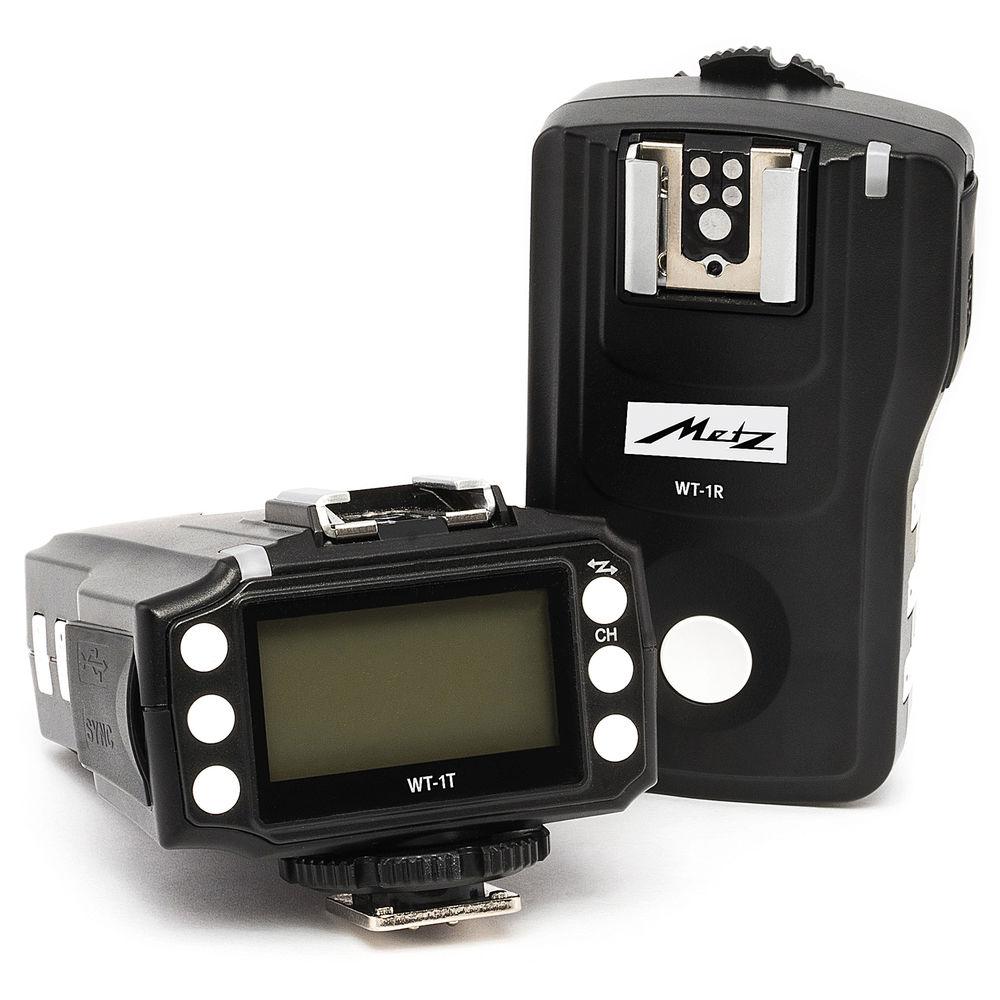

In the Box Bundle Items WT-1T Wireless Transceiver for Canon WT-1R Wireless Receiver for Canon - Flash Stand Stick-On Holder
Also Includes - Flash Stand
- Transport Pouch
- Limited 2-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Metz WT-1 Wireless Trigger Kit for Canon in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - WT-1T Wireless Transceiver for Canon
| | | Channels | 15 | | Groups | 3 | | Wireless Range | 984' / 300 m | | Radio Frequency | 2.4 GHz | | | | Control Modes | E-TTL/E-TTL II, Manual, TTL | | Sync Speed | 1/8000 Sec | | | | Ports | 1 x PC Sync
1 x Mini-USB | | | | Bottom Mount | Hot Foot | | Top Mount | Hot Shoe | | | | Dimensions | 2.5 x 2 x 3.7" / 63 x 52 x 95 mm (Transmitter) | | Weight | 4.2 oz / 119.1 g | | | | Box Dimensions (LxWxH) | 6.4 x 4.1 x 2.5" | - WT-1R Wireless Receiver for Canon
| | | Channels | 15 | | Wireless Range | 984' / 300 m | | Radio Frequency | 2.4 GHz | | | | Control Modes | E-TTL/E-TTL II, Manual, TTL | | Sync Speed | 1/8000 Sec | | | | Bottom Mount | Hot Foot (Locking)
Stand with 1/4"-20 Thread | | Top Mount | Hot Shoe | | | | Dimensions | 2.2 x 1.8 x 3.5" / 55 x 45 x 90 mm (Receiver) | | Weight | 2.5 oz / 70.9 g | | | | Box Dimensions (LxWxH) | 6.4 x 4.1 x 2.1" |
