User Manual for Mevo Boost by Livestream Click to enlarge the picture
Contents of the user manual for the Mevo Boost by Livestream
- Product category: Power Accessories Mevo
- Brand: Mevo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Mevo Power Accessories
 |
User manual for the Mevo Boost by Livestream contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Mevo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Mevo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Mevo product will considerably shorten its lifespan!
|

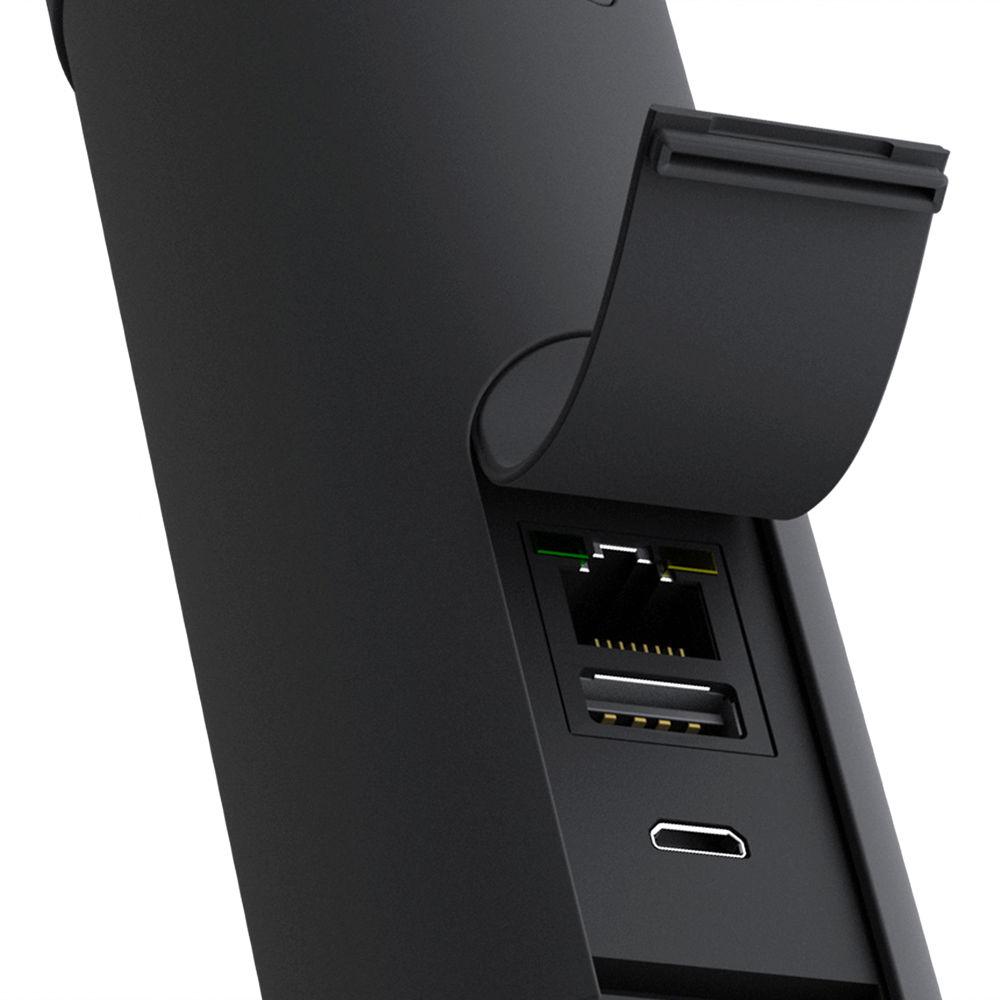

Product description Do more with your Livestream Live Event Camera by attaching it to the Mevo Boost. Once attached via the electronic interface, the Boost becomes an extension of the Live Event Camera. Inside the Boost is a 12,000mAh battery which can increase the operating time of the Live Event Camera from one hour to 10 hours. Near the base of the Boost are 3 ports; one Ethernet port for reliable data transfer when streaming, a USB type-A port which can either charge a smartphone or connect to an LTE stick for wireless streaming, and a USB mini-B port for charging and powering the Boost itself. A 5/8"-27 screw at the base can be adapted to fit 1/4"-20 and 3/8"-16 threads via adapters included with the Live Event Camera, and will natively mount to a standard microphone stand thread. - Weather Resistance
- With an IPX4 rating when properly connected to the camera, you can use the combination of Live Event Camera and Boost in inclement weather conditions.
- Extended Battery Life
- With a 5-hour charge, the Boost provides up to 10 hours of operation to the Live Event Camera with its internal 12,000mAh Li-Ion battery.
- Ethernet Connection
- Use the Ethernet port for streaming events over your network with a more reliable connection compared to Wi-Fi.
- LTE Ready
- Use the USB type-A port to plug in an LTE modem and stream from anywhere you can get an LTE signal (see the Mevo website for supported devices and networks).
- Power Options
- While the mounted Live Event Camera is charged with the Boost's connection, the USB type-A port can also be used to power/charge a USB accessory, e.g. your smartphone, simultaneously.
- Mounting Options

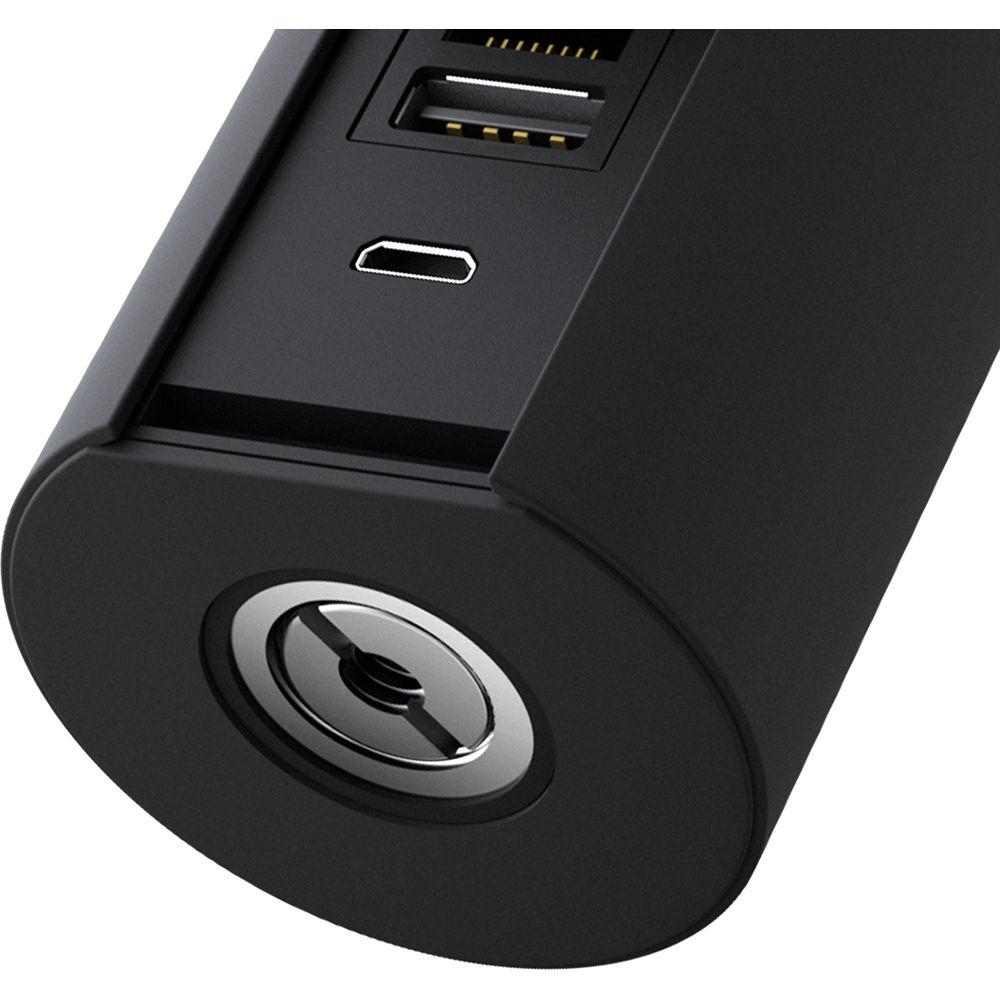

- The base of the Boost replicates the base of the Live Event Camera in that it features a 5/8"-27 thread. By itself the Boost can be unobtrusively mounted on a standard microphone stand, or, using the 1/4"-20 and 3/8"-16 adapters included with the Live Event Camera, to a standard tripod.
UPC: 853359004201 In the Box Mevo Boost by Livestream Charger USB Cable (3.3') Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Mevo Boost by Livestream in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMevo MV103ABL Specs | Battery Capacity | 12,000 mAh | | Battery Chemistry | Lithium-Ion | | Connectors | 1 x 10/100 Ethernet (RJ45)
1 x USB type-A
1 x USB micro-B | | Power Output | Via USB type-A: 5 VDC @ 0.5 A | | Power Input | Via USB micro-B: 5 VDC @ 2.1 A, 9 VDC @ 2 A, or 12 VDC @ 1.5 A | | Environmental | Weatherproof to IPX4 rating | | Dimensions | 6.2 x 2" / 157 x 50 mm | | Weight | 10.6 oz / 30 g | | | | Package Weight | 2.19 lb | | Box Dimensions (LxWxH) | 8.05 x 4.8 x 4.25" |
Rating88% users recommend this product to others. And what about you?
This product has already been rated by 31 owners. Add your rating and experience with the product.
