User Manual for Meyer-Optik Gorlitz Trioplan 50mm f 2.9 Lens for Pentax K Click to enlarge the picture
Contents of the user manual for the Meyer-Optik Gorlitz Trioplan 50mm f 2.9
- Product category: SLR Lenses Meyer-Optik Gorlitz
- Brand: Meyer-Optik Gorlitz
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Meyer-Optik Gorlitz SLR Lenses
 |
User manual for the Meyer-Optik Gorlitz Trioplan 50mm f 2.9 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Meyer-Optik Gorlitz product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Meyer-Optik Gorlitz user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Meyer-Optik Gorlitz product will considerably shorten its lifespan!
|

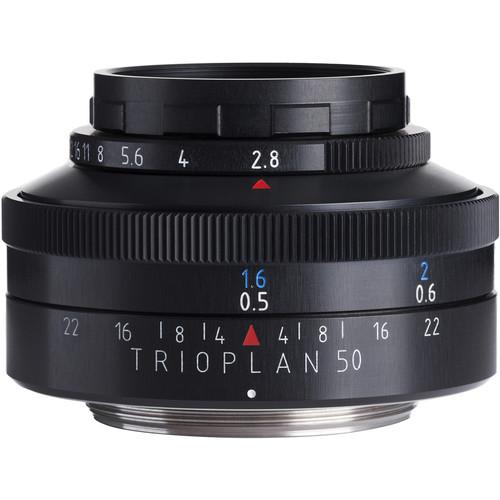

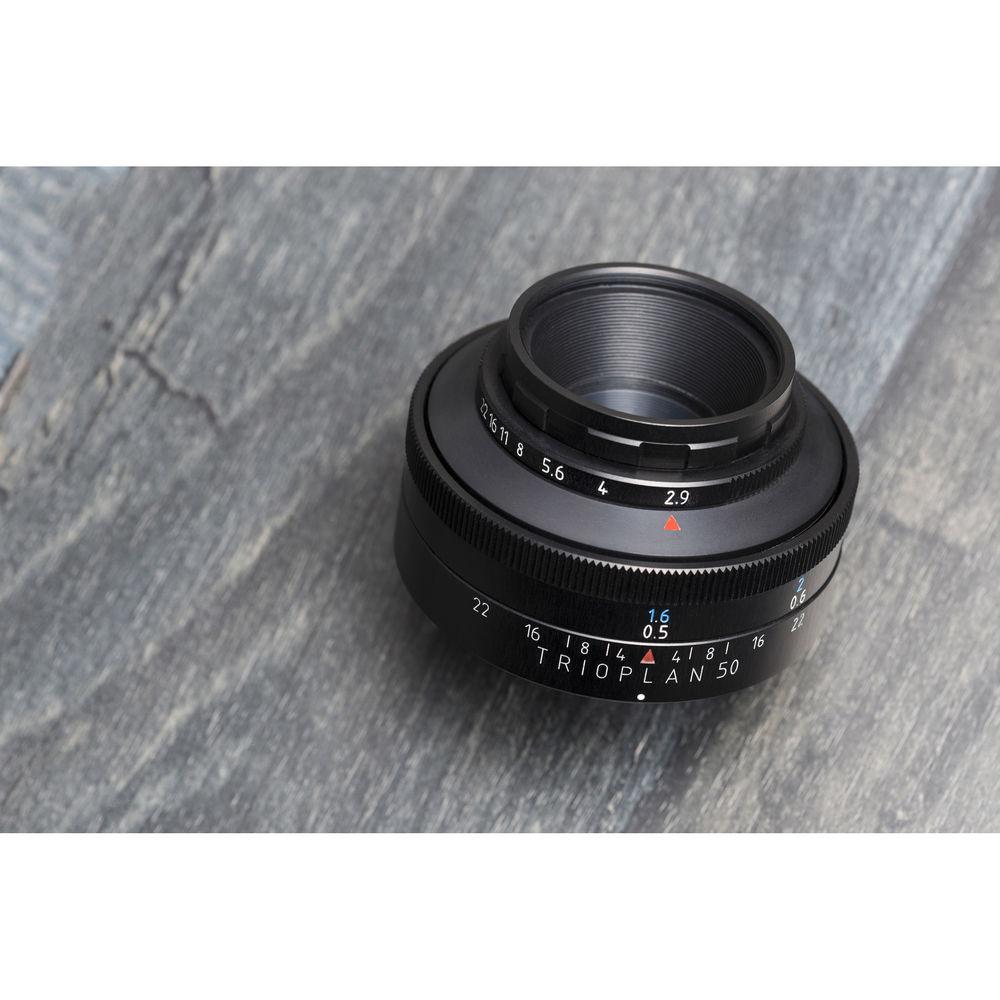

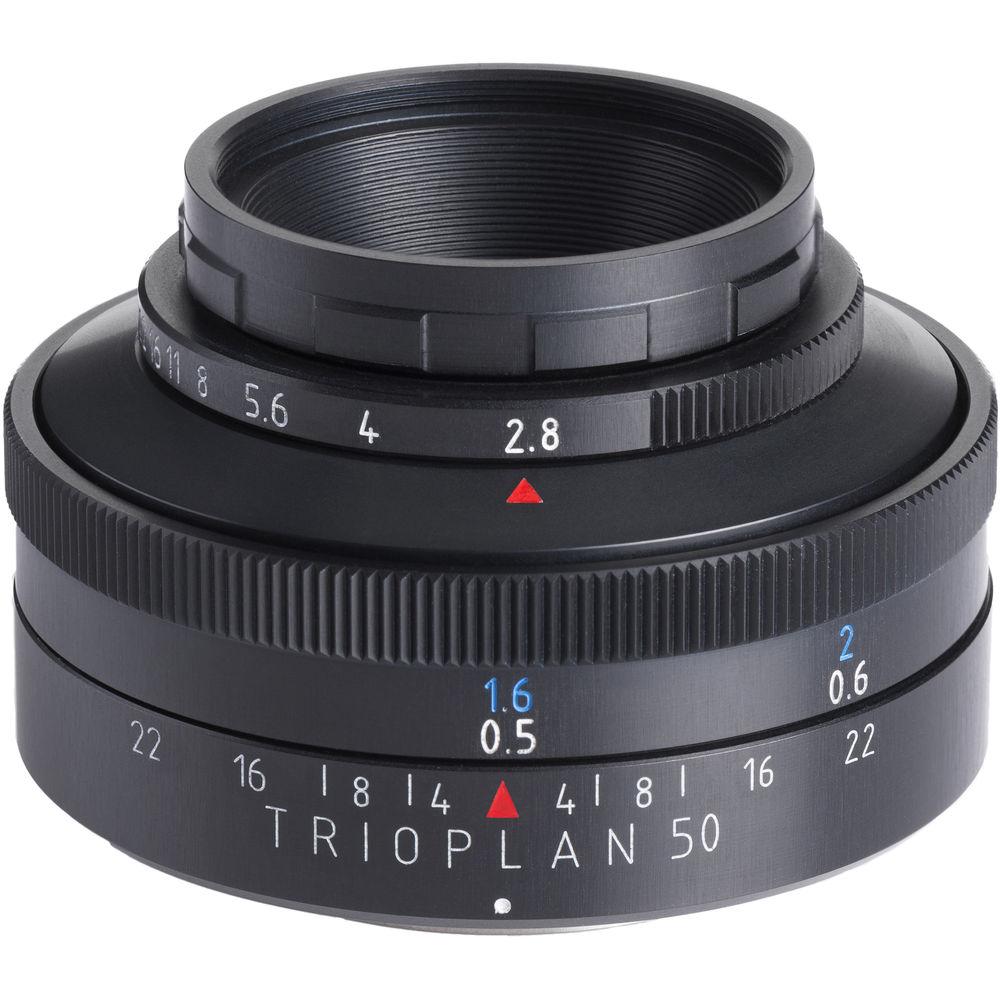

Product description Breathing New Life: Meyer-Optik Lenses Read More Characterized by its distinct soap bubble bokeh, and re-envisioned with a close-focusing function, the Trioplan 50mm f/2.9 from Meyer-Optik Gorlitz is an update to a classic, vintage lens, and designed for Pentax K-mount cameras. This normal-length, manual focus prime utilizes a traditional triplet optical design to produce a distinguished image quality with strong colors and high central sharpness, and twelve aperture blades further help to produce smooth circular bokeh that is the lens's calling card. Differing from the classic design of the century-old predecessor, this lens does feature modern coated Schott glass optics for high contrast and color neutrality. Additionally, the lens also features a movable front element, independent of the focusing action, which increases the maximum magnification to 1:4 for working with nearby subjects as close as 9.8" away. - Normal-length prime is designed for full-frame Pentax K-mount DSLRs, however is also compatible with APS-C models where it will provide a 75mm equivalent focal length.
- Using a traditional triplet optical design, this three element, three group lens produces a uniquely classic image quality coupled with a distinct "soap bubble" bokeh quality.
- Coated Schott glass is used for high clarity and contrast, as well as reduced lens flare and ghosting.
- The front element of the lens can be moved independent of the focusing action in order to achieve a maximum 1:4 magnification ratio for photographing close-up subjects.
- Manual focus design permits working with subjects as close as 9.8" away.
- Twelve diaphragm blades help produce an artistic and distinctly circular bokeh quality.
In the Box Meyer-Optik Gorlitz Trioplan 50mm f/2.9 Lens for Pentax K Front and Rear Lens Caps Limited 5-Year Warranty Best SLR Lenses of 2017 Bjorn Petersen 12/04/2017 zvzzsxsucfbydxre Macro Lens Buying Guide Todd Vorenkamp 11/27/2018 Table of Contents
|
Upload User Manual
Have you got an user manual for the Meyer-Optik Gorlitz Trioplan 50mm f 2.9 Lens for Pentax K in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMeyer-Optik Gorlitz Trioplan 50mm f/2.9 Specs | Focal Length | 50mm | | Maximum Aperture | f/2.9 | | Minimum Aperture | f/22 | | Lens Mount | Pentax K | | Format Compatibility | Full-Frame | | Maximum Magnification | 0.25x | | Minimum Focus Distance | 9.84" / 25 cm | | Optical Design | 3 Elements in 3 Groups | | Diaphragm Blades | 12 | | Focus Type | Manual Focus | | Image Stabilization | None | | Filter Size | 35.5 mm (Front) | | Weight | 7 oz / 200 g | | | | Package Weight | 2.6 lb | | Box Dimensions (LxWxH) | 8.4 x 6.6 x 4.7" |
