User Manual for MG Electronics 2.1mm Barrel Plug To Screw Terminal Block Click to enlarge the picture
Contents of the user manual for the MG Electronics 2.1mm Barrel Plug To
- Product category: Cable Connectors MG Electronics
- Brand: MG Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MG Electronics Cable Connectors
|
User manual for the MG Electronics 2.1mm Barrel Plug To contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MG Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MG Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MG Electronics product will considerably shorten its lifespan!
|

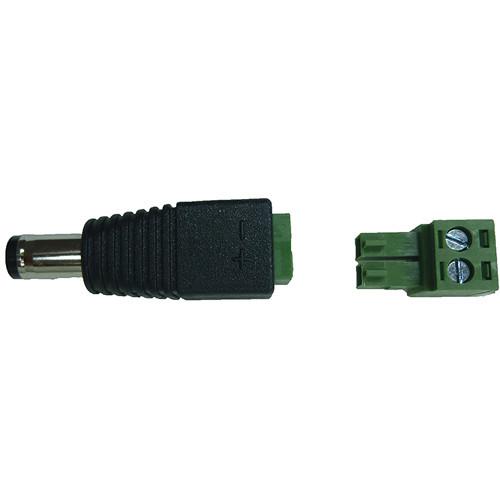

Product description The MG Electronics 2.1mm Barrell Plug To Screw Terminal Block is a power plug for DC devices with a center positive connection and a barrel length of 11 mm. The removable two-wire terminal block makes it easy to connect your wires and then insert the terminal block into the plug to power your device. The terminal block features set screws to secure the wire and make the electrical connection. With this method, you avoid having to make solder joints, which makes this a simple, quick, and re-usable connector.
The set screws are recessed in the open position, and tightening the set screws recesses them further into the terminal block. The plug is rated for 300 volts and 15 amps, and the block is suitable for use with wires from 12 to 28 gauge. The terminal block features markings for polarity, and it only inserts into the plug one way, preserving the polarity. - 2.1mm barrel plug with 11mm barrel length.
- Detachable screw terminal block with recessed set screws.
- The terminal block can only be inserted one way into the plug, maintaining the polarity at the set screws.
UPC: 759377380962 In the Box MG Electronics 2.1mm Barrel Plug To Screw Terminal Block Limited 90-Day Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MG Electronics 2.1mm Barrel Plug To Screw Terminal Block in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMG Electronics AC-7-1 Specs | Connector | 2 x set screws
1 x 2.1 mm barrel plug | | Wire Gauge | 12 to 28 | | Power Capability | 300V
15 amps | | Compliant Standards | RoHS | | | | Package Weight | 0.015 lb | | Box Dimensions (LxWxH) | 2.75 x 1.8 x 0.8" |
