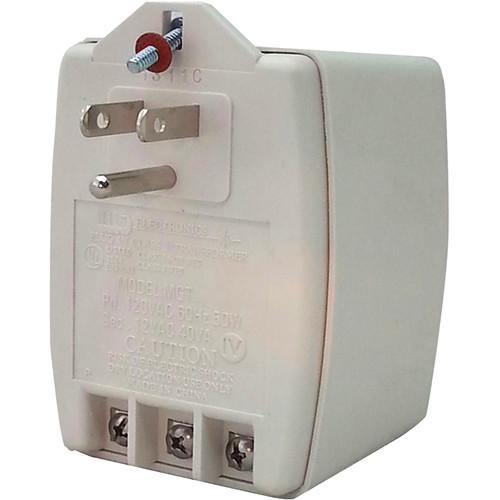

User Manual for MG Electronics 24 VAC 40VA Class II Power Supply with Screw Terminal Output and Auto-Resetting PTC Fuse Click to enlarge the picture
Contents of the user manual for the MG Electronics 24 VAC 40VA Class
- Product category: Power Supplies MG Electronics
- Brand: MG Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MG Electronics Power Supplies
|
User manual for the MG Electronics 24 VAC 40VA Class contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MG Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MG Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MG Electronics product will considerably shorten its lifespan!
|
Product description The 24 VAC 40VA Class II Power Supply with Screw Terminal Output and Auto-Resetting PTC Fuse from MG Electronics provides power for devices that require 24 VAC, 40VA. It features a three-prong grounded plug, three-screw terminal output, and an auto-resetting PTC fuse. - Three-prong grounded plug
- LED AC power input indicator
- AC blades can withstand 35 pounds of pulling force for one minute
UPC: 759377130543 In the Box MG Electronics 24 VAC 40VA Class II Power Supply with Screw Terminal Output and Auto-Resetting PTC Fuse Limited 90-Day Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MG Electronics 24 VAC 40VA Class II Power Supply with Screw Terminal Output and Auto-Resetting PTC Fuse in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMG Electronics MGT-2440P Specs | Input Voltage | 120 VAC, 60 Hz | | Output Voltage | 24 VAC ±5%, 40 VA | | No Load Voltage | 28 VAC maximum | | Current | Rate Current: 1600 mA
Exciting Current (Io):
120 mA maximum at 120 VAC, 60 Hz input without secondary load | | Insulation Test | 500 VDC, 100 MOhms minimum between input plug and output terminal and case | | Color | White | | Material | Noryl (SE100) | | Operating Temperature | 14 to 104°F / -10 to 40°C | | Storage Temperature | -4 to 158°F / -20 to 70°C | | Operating Humidity | 30 to 85% RH | | Certifications | UL, cUL | | Dimensions | 3.6 x 2.6 x 2.1" / 91 x 65 x 54 mm | | Weight | 1.6 lb / 735 g | | | | Package Weight | 1.575 lb | | Box Dimensions (LxWxH) | 4.2 x 3.45 x 2.8" |
