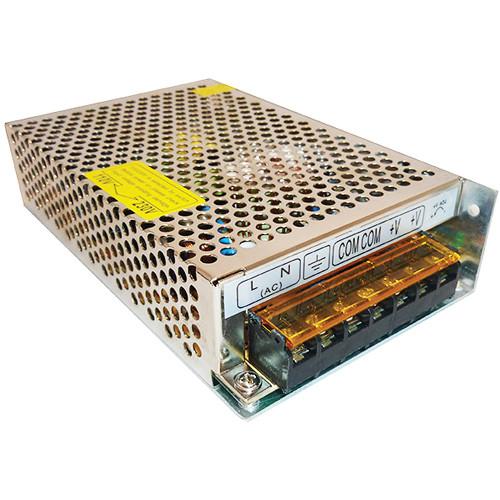

User Manual for MG Electronics MG-15012 Single Output Switching Power Supply Module Click to enlarge the picture
Contents of the user manual for the MG Electronics MG-15012 Single Output Switching
- Product category: Power Supplies MG Electronics
- Brand: MG Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MG Electronics Power Supplies
|
User manual for the MG Electronics MG-15012 Single Output Switching contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MG Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MG Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MG Electronics product will considerably shorten its lifespan!
|
Product description The MG Electronics MG-15012 Single Output Switching Power Supply Module (12.5 A) provides an output of 12 VDC at 12.5 A. This switching power supply module can be used as a power supply for 12 VDC surveillance cameras or other equipment with 12 VDC power requirements. - 12 VDC power output at 12.5 A of output current
- For 12 VDC surveillance cameras or other equipment with 12 VDC power requirements
UPC: 759377242390 In the Box MG Electronics MG-15012 Single Output Switching Power Supply Module (12.5 A) 90-Day Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MG Electronics MG-15012 Single Output Switching Power Supply Module in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMG Electronics MG-15012 Specs | Input | Range: 85 to 132 VAC / 170 to 264 VAC 47 to 63 Hz
Current: 115 V, 3.2 A / 230 V, 1.6 A | | Output | Range:12 VDC
Current: 0 to 12.5 A | | Wave & Noise | 180 MVpp | | DC Output | 150 W | | Efficiency | 82% | | Error Rate | ±1% | | AC Inrush Current | 115 V, 25 A / 230 V, 50 A | | Leakage Current | <3.5 mA / 240 VAC | | Overload Protection | 105 to 150% cut output auto recovery | | Time | Starting: 200 ms
Rising: 100 ms
Keeping: 20 ms | | Voltage | Withstand:
I/P-O/P (Input Power-Output Power):1.5 kVAC per min
I/P-FG (Input Power-Frame Ground): 1.5 VAC per min | | Working Temperature | 14 to 140°F (-10 to 60°C)
20 to 90% RH | | Certifications | UL, CE, & FCC | | Dimensions | 7.87 x 3.82 x 1.5" (200 x 97 x 38 mm) | | Weight | 1.4 lb (0.67 kg) | | | | Package Weight | 1.3 lb | | Box Dimensions (LxWxH) | 8.2 x 4.2 x 1.8" |
