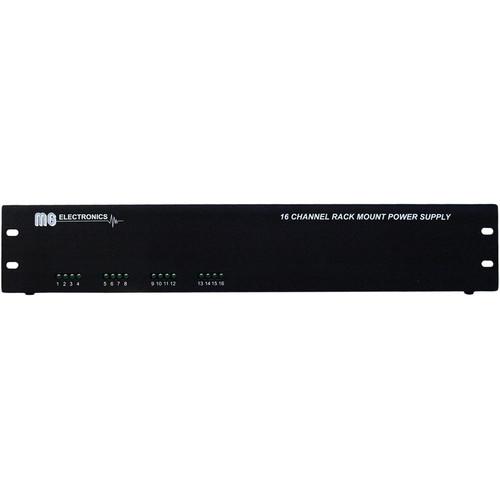

User Manual for MG Electronics RM16AC 16-Channel 24 28 VAC Rack Mount Power Supply Click to enlarge the picture
Contents of the user manual for the MG Electronics RM16AC 16-Channel 24 28
- Product category: Power Supplies MG Electronics
- Brand: MG Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MG Electronics Power Supplies
|
User manual for the MG Electronics RM16AC 16-Channel 24 28 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MG Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MG Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MG Electronics product will considerably shorten its lifespan!
|
Product description The MG Electronics RM16AC 16-Channel Rack Mount Power Supply fits standard 19" EIA rack mount fixtures. The 24/28 VAC selectable unit can power up to 16 individual devices and features removable connectors for quick and easy installation. It is suitable for professional surveillance applications. Note: The default setting is 24 VAC. To select between 24 and 28 VAC for longer wire runs, the unit must be opened by a qualified service technician and wired as per the instruction manual. - Fits standard 19" EIA rack mount fixtures
- 16-Channel 24/28 VAC output
- Accepts 120 VAC 50/60 Hz input
- Removable Faston connectors
- Individual LED power indicators
- Multilingual instruction sheet
- Suitable for professional surveillance applications
- Mounting hardware included
UPC: 759377380832 In the Box MG Electronics RM16AC 16-Channel 24/28 VAC Rack Mount Power Supply Mounting Hardware Limited 90-Day Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MG Electronics RM16AC 16-Channel 24 28 VAC Rack Mount Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMG Electronics RM-16-AC Specs | Compatible Rack Unit | Fits standard 19" EIA rack mount fixtures | | Input | 120 VAC 50/60 Hz | | Output Channels | 16 | | Output Voltage | 24/28 VAC Default setting is 24 VAC. To select between 24 and 28 VAC for longer wire runs, the unit must be opened by a qualified service technician and wired as per the instruction manual. | | Maximum Output | 13.75 A @ 24 VAC
11.75 A @ 28 VAC
Per Channel
0.734 A | | Circuit Protection | Fuse | | Certification | cUL US listed | | | | Package Weight | 22.0 lb | | Box Dimensions (LxWxH) | 24.0 x 12.5 x 6.25" |
