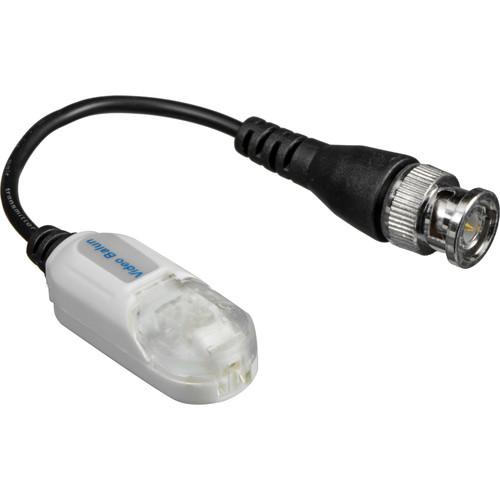

User Manual for MG Electronics Single Channel Passive Toolless Video Balun Click to enlarge the picture
Contents of the user manual for the MG Electronics Single Channel Passive Toolless
- Product category: Signal Extenders MG Electronics
- Brand: MG Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MG Electronics Signal Extenders
|
User manual for the MG Electronics Single Channel Passive Toolless contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MG Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MG Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MG Electronics product will considerably shorten its lifespan!
|
Product description Designed for easy installation, the Single Channel Passive Toolless Video Balun from MG Electronics can be directly connected to a device without needing to strip wires or attach connectors. The balun requires no power and is compatible with PAL, NTSC, and SECAM video formats. Capable of transmitting a signal up to 4900' when paired with an active UTP video receiver, and up to 1000' for full motion CCTV video, the balun is a compact solution for extending your available distance. In the Box MG Electronics Single Channel Passive Toolless Video Balun Limited 3-Month Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MG Electronics Single Channel Passive Toolless Video Balun in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMG Electronics MG50VB Specs | Video Formats | PAL, NTSC, SECAM | | Frequency Response | DC to 8 MHz | | Attenuation | 0.5 dB (typical) | | CMRR | 60 dB | | Impedance | BNC: 75 ohms
Terminal: 100 ohms | | Transmission Distance | Full motion CCTV video: Up to 1,082.7' / 330.0 m (when used with any passive transceiver)
With an Active UTP Video Receiver: Up to 4,921.3' / 1,500.0 m | | Material of Construction | ABS plastic | | Operating Temperature & Humidity | 14 to 158°F / -10 to 70°C, 0 to 95% humidity | | Storage Temperature | -22 to 158°F / -30 to 70°C | | Dimensions | 2.2 x 0.7 x 0.6" / 56.0 x 17.0 x 15.0 mm | | Weight | Not specified by manufacturer | | | | Package Weight | 0.05 lb | | Box Dimensions (LxWxH) | 4.0 x 3.8 x 0.9" |
