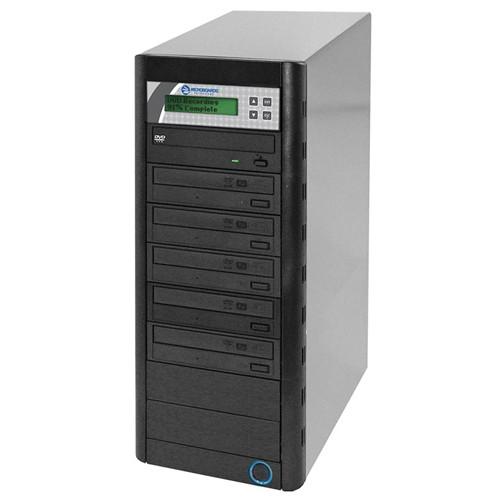

User Manual for Microboards QD-DVD-125 24x 48x Standalone 1:5 DVD CD Duplicator Click to enlarge the picture
Contents of the user manual for the Microboards QD-DVD-125 24x 48x Standalone 1:5
- Product category: Optical Media Duplicators & Printers Microboards
- Brand: Microboards
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Microboards Optical Media Duplicators & Printers
|
User manual for the Microboards QD-DVD-125 24x 48x Standalone 1:5 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Microboards product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Microboards user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Microboards product will considerably shorten its lifespan!
|
Product description The QD-DVD-125 24x/48x Standalone 1:5 DVD/CD Duplicator from Microboards is a DVD and CD duplicator that supports standalone operation. A USB 2.0 port is present on the unit, but only communicates with one of the device's DVD burners. The duplicator is perfect for any user requiring easy copying of audio, video or data DVDs or CDs. PrassiTech Zulu 2 disc mastering software is included.
No hard drive is required, since the duplication process is on an as-you-go basis. However, you do have the option of installing an optional 500GB drive for disc image storage. The LCD screen provides the user with the status of the recording process, minimizing the number of faulty discs. With user-friendly, one-button operation and a sleek design, this duplicator is perfect for any environment. - Standalone Operation
- The tower can act as a standalone burner. Simply insert the CD you wish to copy from in the top drive and burn up to 5 copies simultaneously with the press of a button.
- USB 2.0 Connection
- The tower also includes a USB 2.0 port for computer control. You'll only be able to burn to a single drive via this method. This allows you to create the master disc from a computer source and then duplicate from the master via standalone operation.
- 24x DVD, 48x CD Speed
- The burners record DVD-R discs at 24x speed and CD-R discs at 48x speed. This lets you burn a set of discs in a matter of minutes. This is great for anyone who has a large quantity of discs to duplicate.
- 500GB Hard Drive Option
- You have the option of installing a 500GB hard drive into the unit. This drive can be used to store frequently-used disc images.
UPC: 678621030449 In the Box Microboards QD-DVD-125 24x/48x Standalone 1:5 DVD/CD Duplicator USB Cable DVD-R Disc User Manual AC Power Cord Software CD-ROM 1-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Microboards QD-DVD-125 24x 48x Standalone 1:5 DVD CD Duplicator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMicroboards QD-DVD-125 Specs | Data Source | Standalone or USB 2.0 USB 2.0 can control a single burner only | Disk Capacity | 1x Read 5x Write | Drive Configurations | 24x DVD-R with 48x CD-R support | Disk Loading Method | Manual | Read Speed | CD: 48x DVD: 16x | Duplication (Write) Speed | CD-R: 48x DVD-R: 24x | Recordable Formats | CD-DA (Red Book), CD-ROM Modes 1 & 2, ISO 9660, Photo CD, CD-Extra, Mixed Mode, Video CD, Hybrid CD, HFS, CD+G (karaoke), DVD Video, DVD-ROM, DVD Dual Layer | Disc Types | CD-R, CD-RW, DVD-R, DVD+R, DVD-RW, DVD+RW, DVD-R DL, DVD+R DL | Printing | No | Interface | Standalone Operation or USB 2.0 connection to computer | Connectors | 1x USB 2.0 | | Compliant Standards | None | Power Requirements | AC: 100-240VAC, 50/60Hz | Environmental Requirements | Operating Temperature: 50-104°F (10-40°C) Humidity: 20-80% | Dimensions (WxHxD) | Not Specified by Manufacturer | Weight | 28 lb / 12.7 kg | | Package Weight | 32.3 lb | Box Dimensions (LxWxH) | 24.0 x 22.5 x 14.3" |
