User Manual for Micromega-Hifi MyAmp - Amplifier DAC with USB, Bluetooth, and Headphone Amp Click to enlarge the picture
Contents of the user manual for the Micromega-Hifi MyAmp - Amplifier DAC with
- Product category: AD/DA Converters Micromega-Hifi
- Brand: Micromega-Hifi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Micromega-Hifi AD/DA Converters
 |
User manual for the Micromega-Hifi MyAmp - Amplifier DAC with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Micromega-Hifi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Micromega-Hifi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Micromega-Hifi product will considerably shorten its lifespan!
|

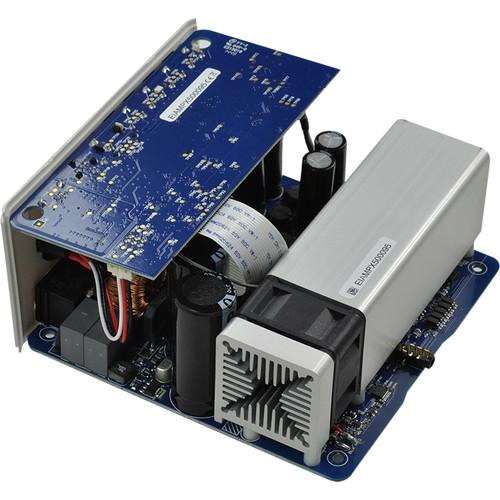

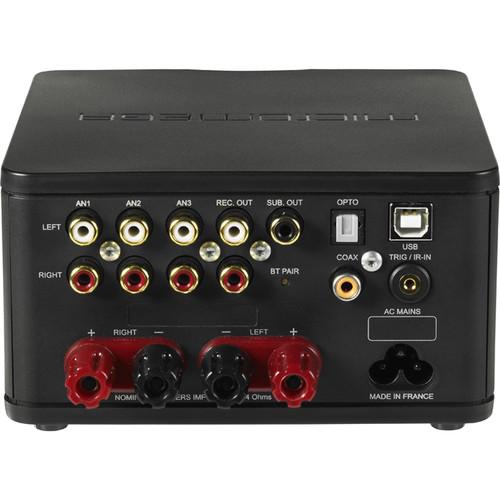

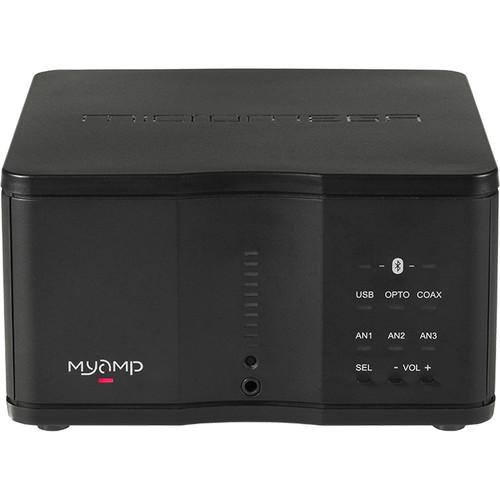

Product description The black MyAmp from Micromega-HiFi is an all-in-one amplifier with a built-in DAC, USB connection, Bluetooth connectivity, and an integrated headphone amplifier. The MyAmp is built around a class A/B amplifier which uses an advanced resonant mode power supply to deliver 2 x 30W RMS at 8 ohms or 2 x 60W RMS at 4 ohms of clean power with a wide dynamic range.The MyAmp features three analog inputs via stereo RCA and three high-resolution digital inputs via USB (24-bit/96 kHz) and two Opto/Coax S/PDIF (24-bit/192 kHz). A Bluetooth aptX module allows for the connection of up to 8 different Bluetooth 3.0 capable devices including smartphones, tablets, and computers. Outputs include two pairs of binding posts which are compatible with bananas, spades, and lugs. The 1/8" / 3.5mm headphone output is capable of driving most headphones, while a stereo RCA direct out is available for connecting to another device, such as an optional CD-Recorder. A single RCA sub output allows for the connection to a powered subwoofer.The unit features 256 x 0.5 dB volume steps with a LED bar-graph display and a clipping indicator. The included RC5 wireless remote offers control over input selections, Bluetooth, power, volume, and mute. The MyAmp is housed a textured ABS-plastic enclosure and ships with a C5 power cord. -
- Three Analog Inputs: 1 Mohm impedance to avoid loading on the source output stage
- Three Digital Inputs: USB 24/96 kHz and two Opto/COAX SPDIF 24/192 kHz
- Bluetooth aptX module
- Direct analog output
- SUB output
- Front panel Headphone output socket
- Tact switches to control input selection and volume
- 256 x 0.5dB steps volume control with led bar-graph display and clipping indicator
- RC5 remote control handset with direct access to inputs
- 5-12V trigger input and remote control codes copy
- Class AB power amplification stages featuring 2x 30W at 8 ohms and 2x 60W at 4 ohms
- Loudspeaker output binding posts for bananas, spades, and lugs
- Textured ABS casing
In the Box Micromega-Hifi MyAmp - Amplifier / DAC with USB, Bluetooth, and Headphone Amp (Black) C5 Power Cord Remote Control Handset CR2025 Lithium Battery Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Micromega-Hifi MyAmp - Amplifier DAC with USB, Bluetooth, and Headphone Amp in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMicromega-Hifi MICRMYAMPBL Specs | Analog Inputs | 3 x stereo RCA 250 mV / 1 Mohms
Headphone: Stereo 1/8" / 3.5 mm | | Digital Inputs | Coaxial SPDIF: > 0.2 V (p-p) / 75 ohms
Optical SPDIF: (Toslink)
USB: Class 1.0 | | Analog Output | Rec Out: Stereo RCA
Sub Out: 1 x RCA | | Bluetooth Module | aptX Module: Bluetooth 3.0 | | Sampling Frequencies | SPDIF: 32 to 192 kHz
USB: 44.1 to 96 kHz
Max Bluetooth: 48 kHz | | Resolution | USB / SPDIF / Bluetooth: 16 to 24-bits | | Pairing | Bluetooth Pairing Capacity: 8 | | Power Bandwidth | 10 Hz to 100 kHz ±0.5 dB | | Power Rating | 2 x 30 W at 8 ohms
2 x 60 W at 4 ohms
Recommended Load Impedance: 4 ohms | | THD + N | THD+ Noise (10 W / 1 kHz / 8 ohms): ≤ 0.003% | | IMD SMPTE | IMD SMPTE Distortion: ≤ 0.01% | | Signal to Noise Ratio | > 100 dB (A-weighted) | | Damping Factor | >100 up to 1 kHz | | Power | Mains Cord Type: C5
Mains Voltage: 85 to 150 VAC or 180 to 265 VAC
Mains Frequency: 47 to 63 Hz
Standby Power Consumption (85 to 265 VAC): <500 mW | | Temperature & Humidity | Working Temperature: 32 to 95°F / 0 to 35°C
Storage Temperature: -13 to 140°F / -25 to 60°C
Relative Humidity (Working): 20 to 80%
Relative Humidity (Storage): 10 to 90% (without condensation) | | Dimensions (L x W x H) | 5.5 x 6.5 x 3.0" / 14.0 x 16.5 x 7.5 cm | | Weight | 2.2 lb / 1.0 kg |
