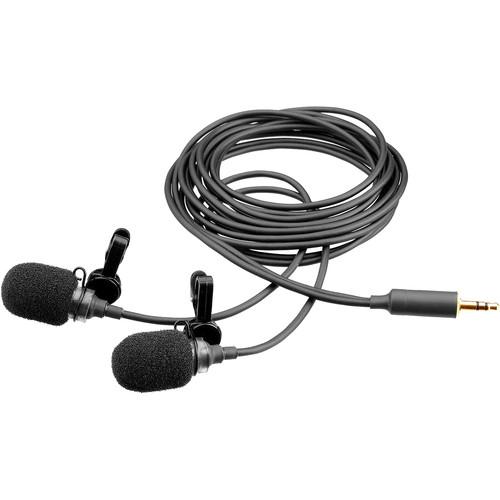

User Manual for Microphone Madness MCSM-4 Miniature Cardioid Stereo Lavalier Microphones Click to enlarge the picture
Contents of the user manual for the Microphone Madness MCSM-4 Miniature Cardioid Stereo
- Product category: Stereo & Specialty Microphones Microphone Madness
- Brand: Microphone Madness
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Microphone Madness Stereo & Specialty Microphones
|
User manual for the Microphone Madness MCSM-4 Miniature Cardioid Stereo contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Microphone Madness product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Microphone Madness user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Microphone Madness product will considerably shorten its lifespan!
|
Product description The MCSM-4 Miniature Cardioid Stereo Lavalier Microphones from Microphone Madness are lavalier microphones mounted inside two brass cylinders that have been enclosed in a durable rubber coating and terminate into a single 1/8" gold-plated mini-jack connector. They can be used to capture audio with recorders supplying a bias voltage of between 1.5 to 10 VDC (also known as plug-in power).Each microphone offers a cardioid polar pattern, effective in minimizing off-axis noise and ambience. Each microphone offers a naturally crisp sound, providing deep bass, smooth mid-range, and clean high-frequency response. The two unidirectional mics are combined at the stereo mini-jack to output a stereo signal for recording. The MCSM-4 Miniature Cardioid Stereo Lavalier Microphones are compatible with—but not limited to—the following recorders: Edirol R9, Kodak Zi8 HD pocket video camera, Olympus DS-40, Olympus LS-10, Tascam DR-01, Tascam DR-03, Tascam DR-07, Yamaha CX, Zoom H1, Zoom H2, and Zoom H4N. - Stereo Lavalier
- Dual cardioid lavaliers are featured and provide easy microphone placement for stereo capturing.
- Single 1/8" (3.5mm) Output
- Both elements feature shielded cables and terminate to a single stereo 1/8" output connector. The connector is compatible with microphone inputs that supply a bias voltage of 1.5 to 10 volts D.C. (also known as plug-in power).
- Cardioid Polar Pattern
- Both capsules provide cardioid polar patterns which are effective in minimizing off-axis audio and noise.
In the Box Microphone Madness MCSM-4 Miniature Cardioid Stereo Lavalier Microphones 2 x Rotational Holding Clips 2 x Foam Windscreens Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Microphone Madness MCSM-4 Miniature Cardioid Stereo Lavalier Microphones in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMicrophone Madness MCSM-4 Specs | | | Sound Field | Stereo | | Polar Pattern | Cardioid, Unidirectional | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | 60 dB A-Weighted | | Maximum SPL | 120 dB SPL Peak | | THD | 1% | | Sensitivity | -50 dB | | | | Output Connectors | 1 x 1/8" (3.5 mm) TRS | | Cable Length | 6' / 1.83 m | | Operating Voltage | 1.5 to 10 V | | | | Package Weight | 0.2 lb | | Box Dimensions (LxWxH) | 10.0 x 3.3 x 0.1" |
