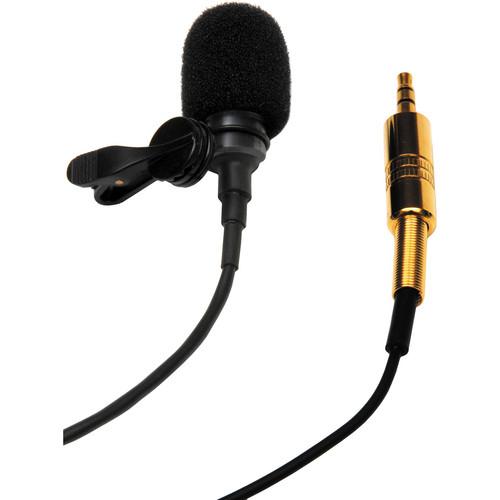

User Manual for Microphone Madness MM-LAPEL-3 Lapel Style Cardioid Uni-Directional Microphone Click to enlarge the picture
Contents of the user manual for the Microphone Madness MM-LAPEL-3 Lapel Style Cardioid
- Product category: Portable Recorder Accessories Microphone Madness
- Brand: Microphone Madness
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Microphone Madness Portable Recorder Accessories
|
User manual for the Microphone Madness MM-LAPEL-3 Lapel Style Cardioid contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Microphone Madness product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Microphone Madness user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Microphone Madness product will considerably shorten its lifespan!
|
Product description The MM-LAPEL-3 Lapel Style Omni-Directional Microphone from Microphone Madness comes with a microphone element that is mounted into a customized cylinder. The high-quality shielded microphone cable exits the bottom of the capsule and terminates into a 1/8" (3.5mm) gold-plated plug. The microphone comes with a Shure miniature wide mouth universal holding clip which is 360° rotating and detachable. A windscreen is also included to curb disturbance caused due to wind and dust. This microphone has a crisp sound, providing deep bass, smooth mid-range, and clean high-range with a frequency response of typically +/- 2 dB. It can be easily plugged into any Minidisc, Dat, or analog recorder that supplies a bias voltage of between 1.5 to 10 VDC. - Well suited but not limited to Edirol R9, Kodak Zi8 HD pocket video camera, Olympus DS-40, Olympus LS-10, Tascam DR-01, Tascam DR-03, Tascam DR-07, Yamaha CX, Zoom H1, Zoom H2 and Zoom H4N recorders
- Comes with SHURE holding clip which is 360° rotational/removable and windscreen
- Requires a bias voltage of 1.5 to 10 VDC (plug-in power) or a battery module 1
Please Note: Battery module is sold separately. close In the Box Microphone Madness MM-LAPEL-3 Lapel Style Cardioid Uni-Directional Microphone Miniature Wide Mouth Universal Holding Clip Windscreen Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Microphone Madness MM-LAPEL-3 Lapel Style Cardioid Uni-Directional Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMicrophone Madness MM-LAPEL-3 Specs | Frequency Response | 20 to 20,000 Hz | | Signal to Noise Ratio | > 60 dB, 1 kHz at 1 pa | | Open Circuit Sensitivity | -50 dB (5.6 mV) re 1 V at 1 pa | | Maximum Input Sound Level | 120 dB SPL (130 dB when used with a battery module), 1 kHz at 1% T.H.D. Battery module sold separately. | | Dimensions (Ø x L) | Cylinder: 0.37 x 1.00" (9.39 x 25.4 mm) | | Cable Length | 4.16' (1.26 m) | | | | Package Weight | 0.1 lb | | Box Dimensions (LxWxH) | 10.0 x 4.6 x 0.6" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 48 owners. Add your rating and experience with the product.
