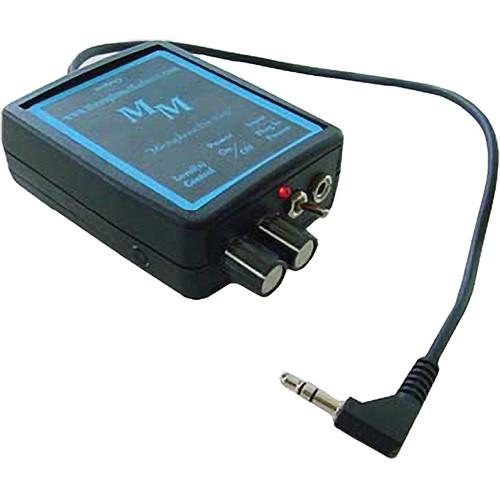

User Manual for Microphone Madness MM-PSMS-1 Pre-amplified Stereo Microphone System Click to enlarge the picture
Contents of the user manual for the Microphone Madness MM-PSMS-1 Pre-amplified Stereo Microphone
- Product category: Portable Recorder Accessories Microphone Madness
- Brand: Microphone Madness
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Microphone Madness Portable Recorder Accessories
|
User manual for the Microphone Madness MM-PSMS-1 Pre-amplified Stereo Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Microphone Madness product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Microphone Madness user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Microphone Madness product will considerably shorten its lifespan!
|
Product description The MM-PSMS-1 Pre-amplified Stereo Microphone System from Microphone Madness is a self contained, portable, pre-amplified, stereo microphone system that comes complete with omni-directional stereo microphones mounted internally on each side of the module. The system accepts any external mono or stereo microphone. Thanks to the pre-installed independent left & right levels control for optimum recording, the system delivers greater flexibility. The system is used to raise low or high impedance microphone signal level to line level. It is compatible with all line level inputs, including all Minidisc, Dat, Cassette recorders, Camcorders and MP3. Note: When external microphones are in use, internal microphones will automatically be shut off. - Built-in Omni-directional stereo microphones with external microphone jack
- High gain/low noise stereo preamplifier with microphone plug-in-power (9 VDC) and red power LED
- Raises low or high impedance microphone signal level to line level
- Operates on a standard included 9V battery, which lasts for more than 130 hours
- 3.00' (0.91m) of output cable
- Independent output level controls (left & right channel)
- Powers all electret base microphones as well as amplify the signal
- Compatible with all line level inputs, including all Minidisc, Dat, Cassette recorders, Camcorders and MP3
- No additional battery module needed
- Protection against polarity inversion
- Removable belt clip included
In the Box Microphone Madness MM-PSMS-1 Pre-amplified Stereo Microphone System 9VDC Battery Removable Belt Clip Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Microphone Madness MM-PSMS-1 Pre-amplified Stereo Microphone System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMicrophone Madness MM-PSMS-1 Specs | Frequency Response | 20 Hz to 20 kHz | | Distortion | 0.05% harmonic | | Signal to Noise Ratio | 58 dB, 1 kHz at 1 Pa | | Open Circuit Sensitivity | -42 dB (5.6 mV) re 1 V at 1 pa | | Dynamic Range | 90 dB, 1 kHz | | Maximum Input Sound Level | 120 dB maximum SPL | | Cable Length | 3.00' (0.91 m) | | Dimensions | 3.0 x 2.4 x 1.0" (76.2 x 60.9 x 25.4 mm) |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 19 owners. Add your rating and experience with the product.
