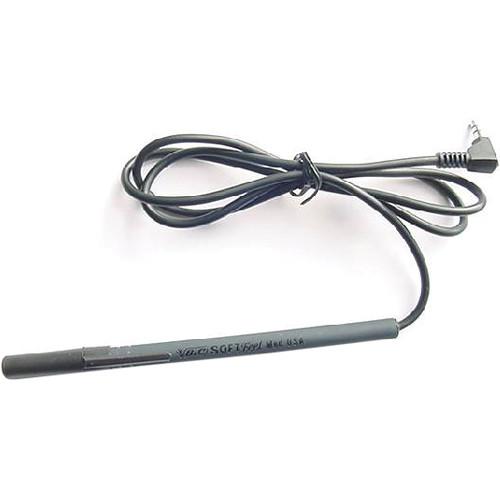

User Manual for Microphone Madness Omni-Directional Modified Bic Pen Microphone Click to enlarge the picture
Contents of the user manual for the Microphone Madness Omni-Directional Modified Bic Pen
- Product category: Portable Recorder Accessories Microphone Madness
- Brand: Microphone Madness
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Microphone Madness Portable Recorder Accessories
|
User manual for the Microphone Madness Omni-Directional Modified Bic Pen contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Microphone Madness product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Microphone Madness user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Microphone Madness product will considerably shorten its lifespan!
|
Product description The black Omni-Directional Modified Bic Pen Microphone from Microphone Madness incorporates a BIC pen, the outer casing of which is designed for optimal recording performance. Installed at the tip of the pen microphone is a high grade microphone element that is used in the VIPER Binaural Stereo Microphone. A 3' (0.9m) microphone cable with a 90° 3.5mm stereo mini plug exits the bottom of the pen housing, providing flexibility. The pen microphone is well suited for lectures (hands free), live music recording and more. This microphone has a naturally crisp sound, providing deep bass, smooth mid-range and clean high-range with a frequency response of typically +/- 2 dB. The pen microphone can be easily plugged into any Minidisc, Dat or analog recorder that supplies a bias voltage of between 1.5 to 10 VDC (also known as plug-in power) at the microphone input jack. - Requires a bias voltage of 1.5 to 10 VDC (also known as plug-in power) or a battery module (sold separately)
- Well suited for the following recorders but not limited to: Edirol R9, Kodak Zi8 HD pocket video camera, Olympus DS-40, Olympus LS-10, Tascam DR-01, Tascam DR-03, Tascam DR-07, Yamaha CX, Zoom H1, Zoom H2 and Zoom H4N
In the Box Microphone Madness Omni-Directional Modified Bic Pen Microphone (Black) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Microphone Madness Omni-Directional Modified Bic Pen Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMicrophone Madness MM-PM Specs | Frequency Response | 20 to 20,000 Hz | | Signal to Noise Ratio | 58 dB, 1 kHz at 1 pa | | Open Circuit Sensitivity | - 42 dB (5.6 mV) re 1 V at 1 pa | | Dynamic Range | 90 dB, 1 kHz | | Maximum Input Sound Level | 105 dB SPL (120 dB when used with a battery module), 1 kHz at 1% Battery module sold separately. | | Connector | Right angle 3.5 mm | | | | Package Weight | 0.1 lb | | Box Dimensions (LxWxH) | 6.7 x 5.0 x 0.5" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 92 owners. Add your rating and experience with the product.
