Product description

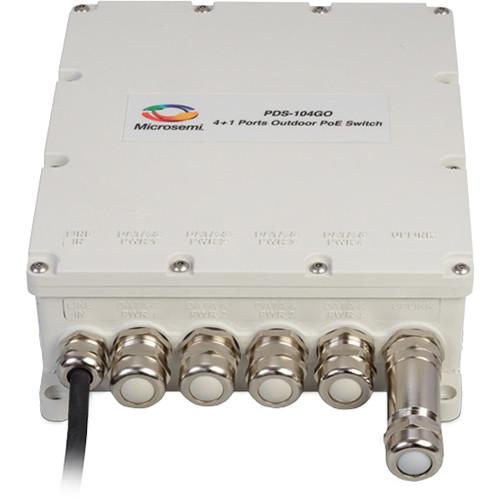

The 4+1 Outdoor Managed PoE Switch from Microsemi enables connection of 4 powered devices to the network such as an outdoor WLAN, outdoor IP Camera, and outdoor P2P radio. The switch offers SFP port for uplink in order to support optical interface or electrical interface. The switch is IP66-rated and can be installed in outdoor environments. There is no need to open the unit during installation, while its deployment is simple and straightforward.The switch delivers PoE power up to 60W per device. In addition, it enables remote monitoring and control of the devices’ status, including remote reset. It extends the reach between the switch and powered devices by an additional 328’, to a maximum of 656’, a major benefit in many applications. The switch also offers lightning protection to the switch itself and to the indoor network.
    General
    • 1 SFP data input, 4 PoE output ports
    • Remotely-managed SNMP and web
    • Extends network reach by additional 328’
    • IP66 outdoor rating
    • Extended temperature range 104 to 122°F (40 to 50°C)
    • IEEE802.3at compliant, 60W per port
    • Supports 10/100/1000 MB/s data rates
    • Includes integral surge protection
    • Plug & play installation
    System Network Management Capabilities
    • Web Interface views unit PoE & network status, unit configuration and unit production information
    • SNMP v2/v3 monitors unit over the network (MIB-II RFC1213) and monitors/configures unit PoE capabilities
    • Telnet views unit PoE & network status, unit configuration and production information.
    • Software update, enable/disable PoE functionality, ping remote network device for connectivity test available
    • SNMP Traps report various PoE events such as PoE PD insertion/removal
    • SysLog reports PoE events, invalid remote user access, initial DHCPv4/v6 address, and more
    Ethernet Switch Network Capabilities
    • 10M/100M/1000Mbit Half Duplex / Full Duplex Ethernet speed
    • 8K internal MAC address lookup engine
    • Auto MDIX
    • Jumbo frames
    PoE Capabilities
    • IEEE 802.3at delivers up to 60W per port view and statues
    • PoE Enable/Disable function enables/disables PoE ports power output (Ethernet data is always enabled)
    • Weekly schedule automatically activates/deactivates of PoE ports based on time of day
    • Remote device reset turning temporary device power off and back on resets attached PD device
    Configuration Options
    • Web connectivity via a web browser
    • SNMPv1/2c/3 via an SNMP management application on a remote computer
    • Telnet application on a remote computer
    • Security and user
    • Authentication Web, Telnet, SNMPv2 and SNMPv3
UPC: 844117002218 In the Box Microsemi 4+1 Outdoor Managed PoE Switch with AC
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Microsemi 4 1 Outdoor Managed PoE Switch with AC in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Microsemi PDS-104GO/AC/M-NA Specs

    Number of Ports 5
    Data Rates 10/100/1000 MB/s (half/full duplex)
    PoE Pin Assignment and Polarity:
    Ports 1 & 2: 1/2, 3/6, 4/5 and 7/8
    Ports 3 & 4: 1/2 and 3/6
    User Port 60 W per port, 150 W total
    Input Power Requirements Input Voltage: 100 to 240 VAC
    Input Current: 2.5 A
    Connector Shielded RJ-45, EIA 568A and 568B SFP Cage
    Environmental Operating Ambient Temperature: -40° to 122°F (-40 to 50°C) for 150 W
    Operating Humidity: Maximum 90%, Non-condensing
    Storage Temperature: -40 to 185°F (-40 to 85°C)
    Storage Humidity: Maximum 95%, Non-condensing
    Operating Altitude: Up to 6,560' (2000 m)
    Weather Rating: IP66, NEMA 4X
    Reliability MTBF: 200,000 hours @ 77°F (25°C)
    Thermal Rating 41 BTU/Hr (@ 240 VAC)
    Regulatory Compliance IEEE 802.3at (PoE), RoHS Compliant, 3WEEE Compliant, CE
    Electromagnetic Emissions & Immunity FCC Part 15, Class B
    EN 55022 Class B
    EN 55024, EN61000-4-5 Class 5 (6 kV CM)
    VCCI
    Surge Protection Meets Surge Protection as specified in
    GR-1089-CORE Issue 4
    ITU-T K.20 6 kV on AC lines
    Safety Approvals UL60950-1 & UL60950-22, GS Mark
    Approvals and Certifications Dust and water intrusion: IEC60529
    Level IP66; NEMA 250
    Dimensions 8.4 x 5.9 x 2.7" (24 x 17 X 7.2 cm)
    Weight 6.4 lb (2.9 kg)
