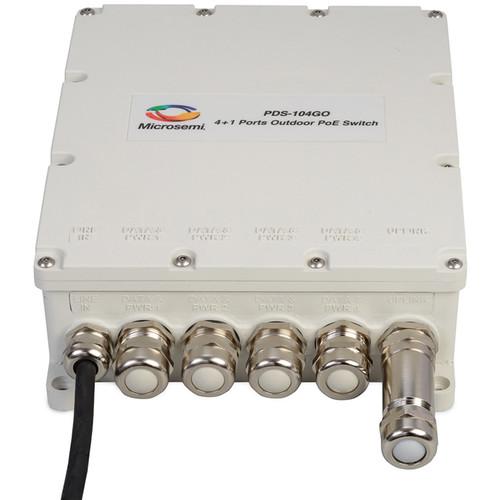

Product description The 4+1 Outdoor PoE Switch from Microsemi enables connection of 4 powered devices to the network such as an outdoor WLAN, outdoor IP Camera, and outdoor P2P radio. The switch offers SFP port for uplink in order to support optical interface or electrical interface. The switch is IP66-rated and can be installed in outdoor environments. There is no need to open the unit during installation, while its deployment is simple and straight forward.The switch delivers PoE power up to 60W per device. In addition, it enables remote monitoring and control of the devices’ status, including remote reset. It extends the reach between the switch and powered devices by an additional 328’, to a maximum of 656’, a major benefit in many applications. The switch also offers lightning protection to the switch itself and to the indoor network. -
- 1 SFP data input, 4 PoE output ports
- Remotely-managed SNMP and web
- Extends network reach by additional 328’
- IP66 outdoor rating
- Extended temperature range 104 to 122°F / 40 to 50°C
- IEEE802.3at compliant, 60W per port
- Supports 10/100/1000 MB/s data rates
- Includes integral surge protection
- Plug & play installation
In the Box Microsemi 4+1 Outdoor PoE Switch Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Microsemi 4 1 Outdoor PoE Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMicrosemi PDS-104GO Specs | Number of Ports | 5 | | Data Rates | 10/100/1000 MB/s (half/full duplex) | | PoE | Pin Assignment and Polarity:
Ports 1 & 2: 1/2, 3/6, 4/5 and 7/8
Ports 3 & 4: 1/2 and 3/6 | | User Port | 60 W per port, 150 W total | | Input Power Requirements | Input Voltage: 100 to 240 VAC
Input Current: 2.5 A | | Connector | Shielded RJ-45, EIA 568A and 568B SFP Cage | | Environmental | Operating Ambient Temperature: -40° to 122°F / -40 to 50°C for 150 W
Operating Humidity: Maximum 90%, Non-condensing
Storage Temperature: -40 to 185°F / -40 to 85°C
Storage Humidity: Maximum 95%, Non-condensing
Operating Altitude: Up to 6,560' / 2000 m
Weather Rating: IP66, NEMA 4X | | Reliability | MTBF: 200,000 hours @ 77°F / 25°C | | Thermal Rating | 41 BTU/Hr (@ 240 VAC) | | Regulatory Compliance | IEEE 802.3at (PoE), RoHS Compliant, 3WEEE Compliant, CE | | Electromagnetic Emissions & Immunity | FCC Part 15, Class B
EN 55022 Class B
EN 55024, EN61000-4-5 Class 5 (6 kV CM)
VCCI | | Surge Protection | Meets Surge Protection as specified in
GR-1089-CORE Issue 4
ITU-T K.20 6 kV on AC lines | | Safety Approvals | UL60950-1 & UL60950-22, GS Mark | | Approvals and Certifications | Dust and water intrusion: IEC60529
Level IP66; NEMA 250 | | Dimensions | 8.4 x 5.9 x 2.7" / 24 x 17 X 7.2 cm | | Weight | 6.4 lb / 2.9 kg |
