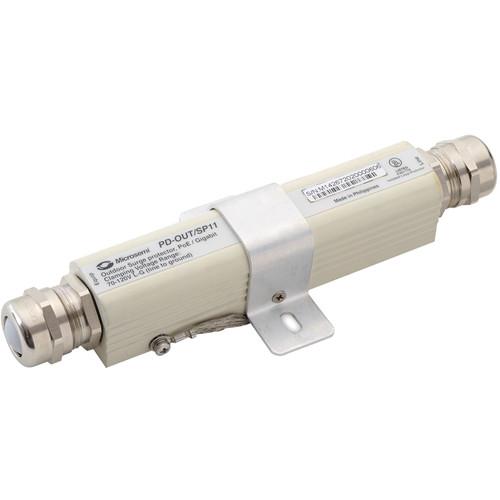

Product description The PD-OUT-SP11 from Microsemi is a surge protection device designed to protect indoor Ethernet networks from lightning that finds its way from the outdoor environment through to the Ethernet cable. The product is enclosed in a metal weatherproof enclosure, which meets the IP66 rating.
The surge protector is designed to be easily mounted and installed before the cable enters the building to protect the indoor network, or pole-mounted close to the outdoor device (WLAN AP, IP Camera, etc.) to protect it - Supports data rates of up to 1Gbps
- All eight lines protected including PoE
- Can be wall or pole mounted
- Surge Handling Capability: 10kV, 5kA to ground in
80/20us; 800V, 100A PoE - Regulatory Compliance: REACH, RoHS, WEEE, IEC60529 level IP66, NEMA 250, level 4x
- Surge Compliance: IEC61643-21, GR1089, ITU-T K.45
- Safety Approvals: UL 497B
UPC: 844117002041 In the Box Microsemi Outdoor PoE Surge Protector Limited 1-Year Warranty Brochure PDF 900.8kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Microsemi Outdoor PoE Surge Protector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMicrosemi PD-OUT/SP11 Specs | Dataline Protection | Ethernet | | Number of Ports | 1 | | Pass Through Data Rates | 10/100/1000 Mbps | | Surge Protection and Filtering | 10 kv, 5 kA to ground in 8/20 µs, 800 v, 100 A PoE | | DC Input | Input Power: 95 W maximum
Input Current: 2 A max | | Connectors | Shielded RJ-45 | | Environmental Conditions | Operating Ambient Temperature: -40º to 185ºF (-40 to 85ºC)
Operating Humidity: Maximum 95%, non-condensing
Storage Temperature: -40º to 185ºF (-40 to 85ºC)
Storage Humidity: Maximum 95%, non-condensing | | Reliability | MTBF: 400,000 hrs. @ 25ºC | | Regulatory Compliance | REACH, RoHS, WEEE, IEC60529 level, IP66, NEMA 250, level 4x | | Immunity to Surges | IEC61643-21, GR1089, ITU-T K.45 | | Safety Approvals | UL 497B | | Country of Origin | Philippines | | Dimensions (W x H x L) | 1.18 x 1.18 x 7.48" (30 x 30 mm x 190 mm) | | Weight | .6 lb (270 g) | | | | Package Weight | 0.9 lb | | Box Dimensions (LxWxH) | 9.449 x 4.016 x 1.811" |
