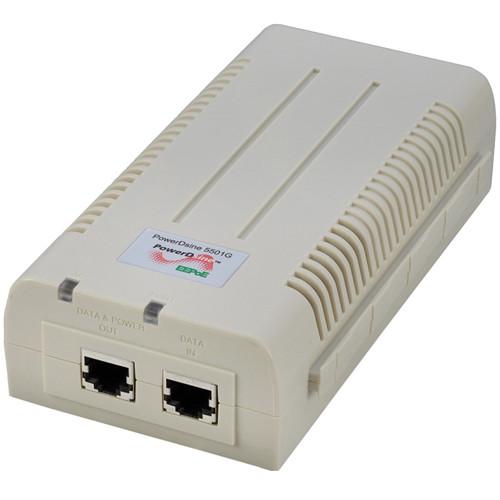

Product description The Microsemi PD-5501G 1-Port Midspan provides a 12 to 24 VDC input range and up to 30W of power over Ethernet to IEEE 802.11n and IEEE 802.3at access points, pan-tilt-zoom (PTZ), dome cameras, IP videophones, thin clients, and other Ethernet end-terminals.
The midspan is also backward compatible and safe to use with any 802.3af terminal such as VoIP phones, IP cameras, and wireless LAN access points. It offers green PoE by providing power over all 4 pairs, resulting in 50% lower line losses over Ethernet lines.
The PD-5501G midspan powers both existing 10/100Base-T devices and emerging wireless Gigabit devices such as WI-MAX and wireless IEEE 802.11n access points. Plug-and-play operation allows you to quickly and easily implement the midspan in an existing Ethernet infrastructure. - Up to 30W of power over 4 pairs
- 10 to 36 VDC input voltage
- Plug-and-play installation
UPC: 844117001938 In the Box Microsemi PD-5501G 1-Port 12 to 24 VDC Input Midspan Limited 1-Year Warranty Brochure PDF 621.5kbeweuascbfbszebwdvteerfbaezzzzdxwcsd Table of Contents
|
Upload User Manual
Have you got an user manual for the Microsemi PD-5501G 1-Port 12 to 24 VDC Input Midspan in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMicrosemi PD-5501G/12-24VDC Specs | Number of Ports | 1 | | Data Rates | Pass Through: 10/100/1000 Mb/s | | Power Over Ethernet | Pin Assignment and Polarity
Data Pairs: 1/2 (-) and 3/6 (+)
Spare Pairs: 7/8 (+), 4/5 (-)
Output Power Voltage: 54 to 57 VDC
User Port Power: 30 W maximum | | Input Power Requirement | DC Input Voltage: 10 to 36 VDC Requirements DC Input Current: 3.8 A @12 VDC | | Indicators | System Indicator: Main Power (Green)
Channel Power: Power delivered over 4 pairs (Green) | | Connectors | Shielded RJ-45, EIA 568A, and 568B | | Ambient Operating Temperature | 14 to 122°F (-10 to 50°C) | | Storage Temperature | -4 to 158°F (-20 to 70°C) | | Operating Humidity | Maximum 90%, non-condensing | | Storage Humidity | Maximum 95%, non-condensing | | Operating Altitude | -1000 to 10,000' (-305 to 3,048 m) | | Reliability | MTBF: 150,000 hours @ 77ºF (25ºC) | | Thermal Rating | 24 BTU/hour | | Regulatory Compliance | IEEE 802.3af (PoE), IEEE 802.3at(including 2-event), RoHS Compliant, WEEE Compliant, CE | | Electromagnetic Safety | FCC Part 15, Class B
EN 55022 Class B (Emissions)
EN 55024 (Immunity | | Safety Approvals | GS Mark Per IEC60950 | | Dimensions (W x H x L) | 3.5 x 1.7 x 6.5" (8.8 x 4.3 x 16.5 cm) | | Weight | 0.9 lb (0.4 kg) |
