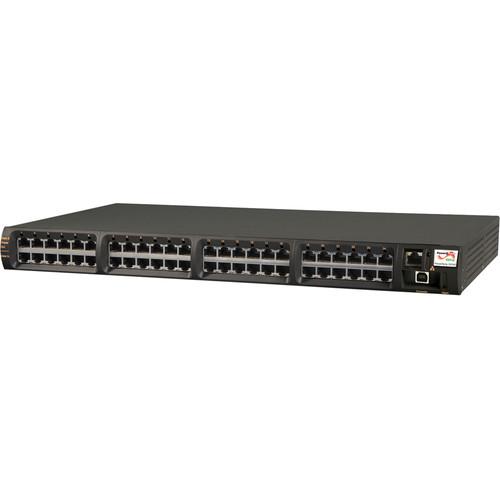

Product description The Microsemi PD-5524G 24-Port 450W Midspan provides up to 30W of power over Ethernet to IP cameras, access control systems, thin clients, and other Ethernet end terminals. It has the ability to deliver power over all 4 pairs of a CAT5 or better cable, dissipating 50% less power than PoE switches and 2-pair midspans, while complying with the IEEE802.3at-2009 standard. Plug-and-Play operation allows you to quickly and easily implement the midspan in an existing Ethernet infrastructure. - Powers all IEEE802.3af and IEEE802.3at devices
- High efficiency, dissipating 50% less power than 2-pair switches and Midspans
- PowerView Pro secure, remote SNMPv3 web-based management
- Supports both IPv4 and IPv6 addressing
- Plug-and-play installation
UPC: 844117001419 In the Box Microsemi PD-5524G 24-Port 450W Midspan Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Microsemi PD-5524G 24-Port 450W Midspan in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMicrosemi PD-5524G/ACDC/M Specs | Number of Ports | 24 | | Data Rates | Pass Through: 10/100/1000 Mb/s | | Power Over Ethernet | Pin Assignment and Polarity
Data Pairs: 1/2 (-) and 3/6 (+)
Spare Pairs: 4/5 (+), 7/8 (-)
Output Power Voltage: 55 VDC
User Port Power: 30 W guaranteed
Aggregate Power: 450 W | | Input Power Requirement | AC Input Voltage: 100 to 240 VAC
DC Input: RPS or another PD-5524G Midspan
AC Input Current: 5.5 A @ 110 VAC; 2.75 A @ 220 VAC
AC Frequency: 50 to 60 Hz | | Management | PowerView Pro included | | Indicators | System Indicator: AC Power (Green)
User Indicator: Channel Power (Green/Orange) | | Connectors | PoE ports and Management Port: Shielded RJ-45, EIA 568A, and 568B
Console Port: USB Connector Type B
DC Connector: DC Block Terminal
RPS Com Connector: HD-D-sub-15 | | Ambient Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -4 to 158°F (-20 to 70°C) | | Operating Humidity | 10 to 90%, non-condensing | | Storage Humidity | 5 to 95%, non-condensing | | Operating Altitude | -1000 to 10,000' (-305 to 3,048 m) | | Thermal Rating | 365 BTU/hour | | Regulatory Compliance | IEEE 802.3af (PoE, PoH Type 1), IEEE 802.3at (PoE+ including 2-event, PoH Type 2), RoHS Compliant, VCCI, CE, C-Tick | | Electromagnetic Safety | FCC Part 15, Class B, EN 55022 Class B (Emissions), EN 55024 (Immunity), VCCI | | Safety Approvals | UL/cUL Per EN 60950-1
GS Mark Per EN 60950-1 | | Dimensions | 17.3 x 10.8 x 1.7" (43.8 x 27.2 x 4.4 cm) or 1 U | | Weight | 14.3 lb (6.4 kg) |
