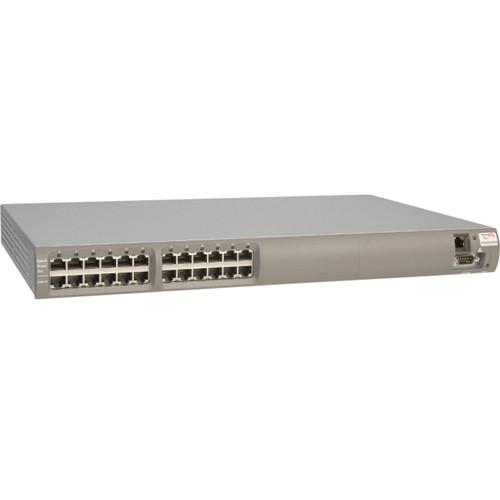

User Manual for Microsemi PD-6500G 12-Port 200W Midspan Click to enlarge the picture
Contents of the user manual for the Microsemi PD-6500G 12-Port 200W Midspan
- Product category: Power over Ethernet (PoE) Microsemi
- Brand: Microsemi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Microsemi Power over Ethernet (PoE)
|
User manual for the Microsemi PD-6500G 12-Port 200W Midspan contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Microsemi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Microsemi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Microsemi product will considerably shorten its lifespan!
|
Product description The Microsemi PD-6500G 12-Port 200W Midspan provides up to 15.4W of power over Ethernet to IP telephones, wireless LAN access points, security network cameras, and many other types of data terminals over standard Ethernet data cables, leaving the network infrastructure completely unaltered. Plug-and-Play operation allows you to quickly and easily implement the midspan in an existing Ethernet infrastructure. - Safe and reliable power over existing Ethernet infrastructure
- Powerview Pro remote, web-based SNMPv3 power management environment
- Cisco and legacy PoE support
- Plug-and-play installation
In the Box Microsemi PD-6500G 12-Port 200W Midspan Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Microsemi PD-6500G 12-Port 200W Midspan in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMicrosemi PD-6512G/AC/M Specs | Number of Ports | 12 | | Data Rates | Pass Through: 10/100/1000 Mb/s | | Power Over Ethernet | Pin Assignment and Polarity: 4/5 (+), 7/8 (-) | | Output Voltage | 52 VDC | | Output Power | User Port Power: 15.4 W
Aggregate Power: 200 W | | Input Power | AC Input Voltage: 90 to 240 VAC | | Input Requirements | AC Input Current: 4 A @ 110 VAC; 2 A @ 220 VAC
AC Frequency: 47 to 63 Hz | | Management | PowerView Pro included | | Indicators | System Indicator: AC Power (Green)
User Indicator: Channel Power (Green) | | Connectors | Shielded RJ-45, EIA 568A and 568B | | Ambient Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -4 to 158°F (-20 to 70°C) | | Operating Humidity | 10 to 90%, non-condensing | | Storage Humidity | 5 to 95%, non-condensing | | Operating Altitude | -1000 to 10000' (-305 to 3048 m) | | Reliability | MTBF: 100,000 hrs. @ 77°F (25°C) | | Thermal Rating | 170/320 BTU/hour @ 240 VAC | | Regulatory Compliance | IEEE 802.3af, RoHS Compliant, WEEE Compliant, CE | | Electromagnetic Safety | FCC Part 15, Class B, EN 55022 Class B (Emissions), EN 55024 (Immunity), VCCI | | Safety Approvals | UL/cUL Per IEC60950-1
GS Mark Per IEC60950-1 | | Dimensions | 17.3 x 10.8 x 1.7" (43.8 x 27.2 x 4.4 cm) or 1 U | | Weight | 8.8 lb (4.0 kg) |
