User Manual for Microsemi PD-9004G 4-Port 30W Midspan Click to enlarge the picture
Contents of the user manual for the Microsemi PD-9004G 4-Port 30W Midspan
- Product category: Power over Ethernet (PoE) Microsemi
- Brand: Microsemi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Microsemi Power over Ethernet (PoE)
|
User manual for the Microsemi PD-9004G 4-Port 30W Midspan contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Microsemi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Microsemi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Microsemi product will considerably shorten its lifespan!
|

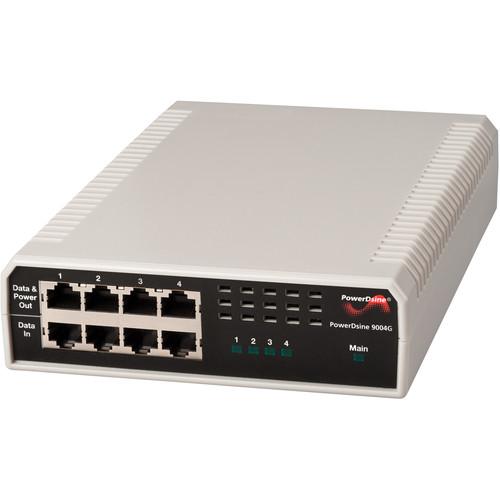

Product description The Microsemi PD-9004G 4-Port 30W Midspan is used for powering and controlling up to 4 IEEE 802.3at compliant devices. It supports products such as wireless LAN access points, security network cameras, and IP phones without any changes to the installed network infrastructure. - Allows powering up to 4 devices over existing Ethernet infrastructure via PoE
- Provides up to 30W per port for all ports
- Compliant with IEEE802.3at standards
- Supports 10/100/1000 Mb/s data rates
- 3 units can fit in 1U 19" rack
UPC: 844117001921 In the Box Microsemi PD-9004G 4-Port 30W Midspan Limited 1-Year Warranty Brochure PDF 747.4kbzeeewexs Table of Contents
|
Upload User Manual
Have you got an user manual for the Microsemi PD-9004G 4-Port 30W Midspan in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMicrosemi PD-9004G/AC Specs | Number of Ports | 4 | | Data Rates | Pass Through: 10/100/1000 Mb/s | | Power Over Ethernet | Pin Assignment and Polarity: 4/5 (+), 7/8 (-) | | Output Voltage | 55 VDC | | Output Power | User Port Power: 30 W | | Input Power | AC Input Voltage: 90 to 264 VAC | | Input Requirements | AC Input Current: 1.6 A @ 110 VAC and 0.8 A @ 240 VAC
AC Frequency: 50 to 60 Hz | | Indicators | System Indicator: AC Power (Green)
User Indicator: Channel Power (Green) | | Connectors | PoE Ports and Management port: Shielded RJ-45, EIA 568A and 568B
Console Port: USB Connector Type B
DC Connector: DC Block Terminal
RPS Com Connector: HD-D-sub-15 | | Ambient Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -4 to 158°F (-20 to 70°C) | | Operating Humidity | Maximum 90%, non-condensing | | Storage Humidity | 95%, non-condensing | | Operating Altitude | -1000 to 10000' (-305 to 3048 m) | | Thermal Rating | 70 BTU/hour @ 240 VAC | | Regulatory Compliance | IEEE 802.3af (PoE), RoHS Compliant, WEEE Compliant, CE | | Electromagnetic Safety | FCC Part 15, Class B, EN 55022 Class B (Emissions), EN 55024 (Immunity), VCCI | | Safety Approvals | UL/cUL Per EN 60950 and GS Mark Per EN 60950 | | Dimensions | 5.8 x 8.8 x 1.7" (14.8 x 22.4 x 4.3 cm) | | Weight | 1.4 lb (0.6 kg) | | | | Package Weight | 2.65 lb | | Box Dimensions (LxWxH) | 11.9 x 9.2 x 2.3" |
