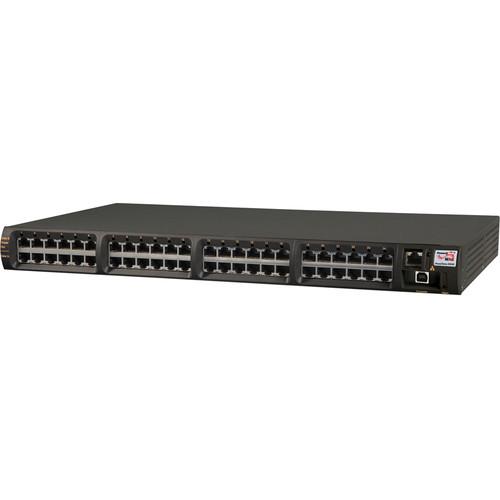

Product description With support for both the 802.3at and 802.3af PoE standards, the PD-9024G Power over Ethernet Midspan from Microsemi is capable of powering a variety of different PoE-compliant devices, including access points, PTZ cameras, dome cameras, IP videophones, thin clients, and other PoE devices. This midspan is designed to work with existing network infrastructure while adding power to the network, eliminating the need for standalone power adapters for power-hungry components. Installation is simple with plug-and-play compatibility. With both Cisco and legacy PoE support, this midspan will be compatible with a wide variety of pre-existing networks. -
- High power over 2-pairs–30W per port
- Power redundancy - Mutual midspan-to-midspan backup
- PowerView Pro - Cloud-based SNMPv3 power management platform lets you access and manage Ethernet-based devices from the convenience of your desk
- Safe & reliable power over existing Ethernet infrastructure
- Cisco and legacy PoE support
- Plug-and-play installation
- Guaranteed system up-time
UPC: 844117001112 In the Box Microsemi PD-9024G Power over Ethernet Midspan (24 Ports) Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Microsemi PD-9024G Power over Ethernet Midspan in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMicrosemi PD-9024G/ACDC/M/F Specs | Ports | 24 | | Pass Through Data Rates | 10/100/1000 Mbps | | Power Over Ethernet | Output
Pin Assignment and Polarity: 4/5 (+), 7/8 (-)
Output Power Voltage: 55 VDC
User Port Power: 36 Watts (typical)
Input Power Requirements
AC Input Voltage: 100 to 240 VAC
DC Input: 55 V (RPS or another 9000 midspan)
AC Input Current
450 W Units: 5.5 A @ 110 VAC; 2.75 A @ 220 VAC
1000 W Units: 12 A @ 110 VAC; 6 A @ 220 VAC
AC Frequency
50 to 60 Hz
| | Indicators | System Indicator
AC Power (Green)
User Indicator
Channel Power (Green)
| | Connectors | PoE Ports and Management Port
Shielded RJ-45, EIA 568A and 568B
Console Port
USB Type-B
DC Connector
DC block terminal
RPS Com Connector
HD-D-sub-15
| | Management | PowerView Pro standard | | Environmental | Operating Ambient Temperature
32 to 104ºF (0 to 40ºC)
Operating Humidity
10 to 90%, non-condensing
Storage Temperature
-4 to 158ºF (-20 to 70ºC)
Storage Humidity
5 to 95%, non-condensing
Operating Altitude
-1000 to 10,000 ft (-304.8 to 3048 m) | | Certification and Compliance | IEEE 802.3af (PoE, PoH Type 1)
RoHS Compliant
CE
FCC Part 15, Class B
EN 55022 Class B (Emissions)
EN 55024 (Immunity), VCCI
UL/cUL Per EN 60950-1
GS Mark Per EN 60950-1
| | Dimensions | 17.3 x 10.8 x 1.75" (43.8 x 27.2 x 4.4 cm) | | Rack Units | 1 RU | | Weight | 14.3 lb (6.5 kg) |
