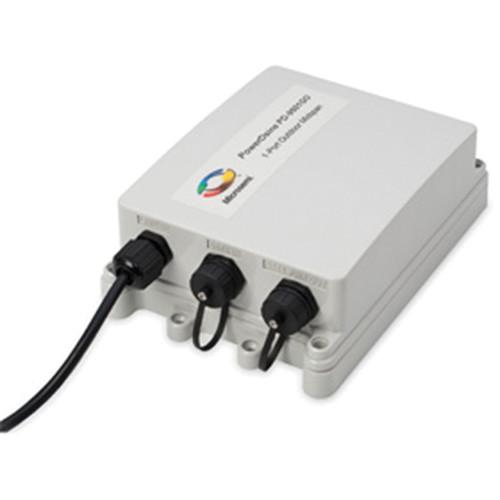

Product description The 60W PD-9501GO/12-24VDC 1-Port Outdoor PoE Midspan from Microsemi offers a fully IEEE 802.3at compliant solution for outdoor installations. It allows wireless LAN access points, security network cameras, and other IP terminals to receive power, along with data, over standard Ethernet cables, leaving network infrastructure completely unaltered. This midspan provides 60W of power and its IP66 rated housing ensures safe and reliable operation in outdoor environments. It also offers surge protection ensuring the indoor equipment is protected from power surges. - Extended temperature range from -40 to 131°F (-40 to 55°C)
- Fully IEEE802.3at standard compliant
- Supports both 802.3af and 802.3at standard devices
- 10 to 36 VDC input voltage
- Power provided using all 4 pairs
- Supports 10/100/1000 Mb/s data rates
- Plug-and-play installation (installer does not have to open the unit)
- Includes integral surge protection
UPC: 844117001983 In the Box Microsemi PD-9501GO/12-24VDC 1-Port Outdoor PoE Midspan (60W) Limited 1-Year Warranty Brochure PDF 894.3kbbqbuteddwyafrsbddwwexfzaczra Table of Contents
|
Upload User Manual
Have you got an user manual for the Microsemi PD-9501GO 12-24VDC 1-Port Outdoor PoE Midspan in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMicrosemi PD-9501GO/12-24VDC Specs Number of Ports | 1 | Data Rates | Pass Through: 10/100/1000 Mb/s | PoE Power Output | Pin Assignment and Polarity: 4/5 (+),7/8 (-), 3/6(+) Output Power Voltage: 55 VDC User Port Power: 60 W (guaranteed) | Input Power | Input Voltage: 10 to 36 VDC Input Current: 8.0 A | Connectors | Shielded, rugged RJ45 (with gasket), EIA 568A, and 568B | Ambient Operating Temperature | -40 to 122°F (-40 to 50°C) for 60 W -40 to 131°F (-40 to 55°C) for 30 W | Operating Humidity | Maximum 95% (non-condensing) | Storage Temperature | -40 to 185°F (-40 to 85°C) | Storage Humidity | Maximum 95% (non-condensing) | Operating Altitude | Up to 6,560' (2,000 m) | IP/NEMA Rating (Weather Rating) | EN60529 level IP66, NEMA 250 level 4x, ASTM B-117 corrosion reference | Reliability MTBF | 150,000 hours @ 77°F (25°C) | Thermal Rating | 40 BTU/Hr @ 240 VAC | Regulatory | IEEE 802.3af (PoE, PoH type 1), IEEE 802.3at (PoE+ including 2-event, PoH type 2), RoHS compliant, WEEE compliant, CE | Electromagnetic Emissions & Immunity | FCC part 15 class B, EN 55022 class B, EN 55024, EN61000-4-5 class 5 (6 kV CM), VCCI | Surge Protection | GR-1089-CORE issue 4, ITU-T K.20 6 kV | Safety Approvals | UL60950-1, UL60950-22, and GS Mark | Dimensions (W x H x L) | 8.4 x 5.9 x 2.8" (21.4 x 15.0 x 7.0 cm) | Weight | 1.7 lb (0.8 kg) | | Package Weight | 2.35 lb | Box Dimensions (LxWxH) | 14.1 x 9.1 x 3.5" |
