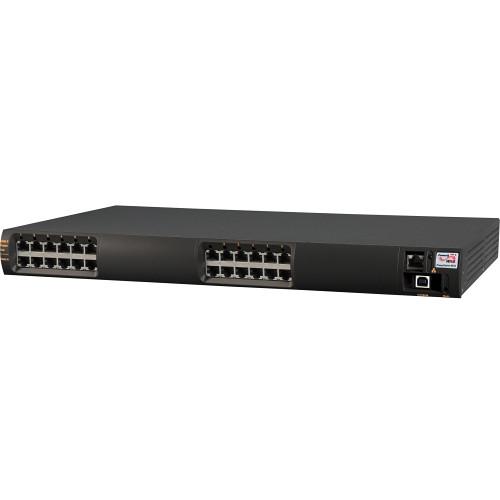

Product description The 1000W PD-9512G 12-Port-Port 4-Pair Gigabit EEPoE Midspan from Microsemi is designed to power network devices such as IP cameras, access control systems, thin clients and other Ethernet powered devices (PD) that require up to 51W of power. It delivers power over all 4 pairs of the CAT5 (or better) cable. This Energy Efficienc PoE midspan dissipates 50% less power than conventional PoE switches and 2-pair midspans, while fully complying with the IEEE802.3at-2009 standard. It reduces power losses by almost 3W per link for 25.5W devices. The midspan's plug-and-play design simplifies installation. - High power over 4 pairs (72W per port)
- IEEE 802.3at compliant with 2-event classification
- High efficiency, dissipating 50% less power than 2-pair switches and midspans
- PowerView Pro: Secure, remote SNMPv3 Web-based management software
- Supports both IPv4 and IPv6 addressing
- Cisco and legacy PoE support
- Plug-and-play design simplifies installation
UPC: 844117001334 In the Box Microsemi PD-9512G 12-Port 4-Pair Gigabit EEPoE Midspan with AC/DC Input (1000W) PowerView Pro Software Disc Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Microsemi PD-9512G 12-Port 4-Pair Gigabit EEPoE Midspan with AC DC Input in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMicrosemi PD-9512G/ACDC/M Specs | Number of Ports | 12 | | Pass Through | 10/100/1000 Mb/s | | Power Over Ethernet | Pin Assignment and Polarity:
Data Pairs 1/2(-) and 3/6 (+)
Spare Pairs 7/8 (-) and 4/5 (+)
Output Power Voltage: 54 to 57 VDC User Port Power: 72 W typical Aggregate Power: 1000 W | | Input Power Requirement | AC Input Voltage: 100 to 240 VAC
DC Input Voltage: 57 VDC (Redundant power supply or another 9500G series midspan)
AC/DC Units: Redundant power supply or another 9000 series midspan | | Input Current | 12 A @ 110 VAC; 6 A @ 220 VAC
AC Frequency: 50 to 60 Hz | | Management | PowerView Pro (software included) | | Indicators | System Indicator: AC power (green)
Channel Power Indicators:
Green: Power supplied over data and spare pairs
Yellow: Power supplied over data or spare pairs | | Connectors | PoE and management port: Shielded RJ-45, EIA 568A and 568B
Console Port: USB connector type B
DC Connector: DC block terminal
RPS Com Connector: HD-D-sub-15 | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Operating Humidity | 10 to 90%, non-condensing | | Storage Temperature | -4 to 158°F (-20 to 70°C) | | Storage Humidity | 5 to 95%, non-condensing | | Operating Altitude | -1000 to 10000' (-304.8 to 3048 m) | | Regulatory Compliance | IEEE 802.3af (PoE, PoH type1)
IEEE 802.3at (PoE+ including 2-event, PoH type 2)
RoHS compliant, VCCI, CE, C-Tick | | Electromagnetic Emissions & Immunity | FCC Part 15, class B
EN 55022 class B (emissions)
EN 55024 (immunity), VCCI | | Safety Approvals | UL/cUL per EN 60950-1
GS Mark per EN 60950-1 | | Dimensions | 17.3 x 10.8 x 1.8" (43.8 x 27.2 x 4.4 cm); Rack Height: 1U | | Weight | 14.3 lb (6.5 kg) |
