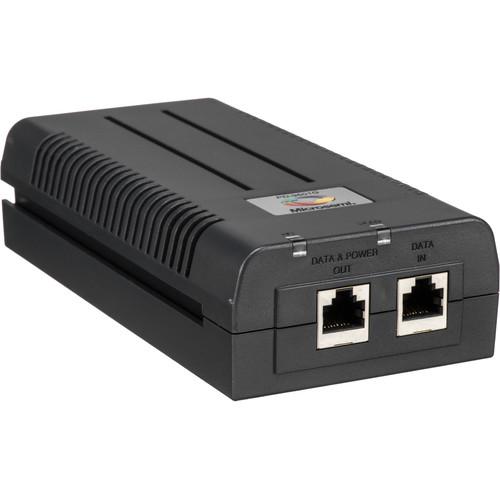

Product description With the PD-9601G 1-Port 95W Gigabit PoH Midspan from Microsemi, you can power a variety of devices such as wireless and cellular base stations, PTZ cameras, physical access controls with door locks, POS terminals, and more. Installation is simple thanks to plug-and-play connectivity and, with support for both 802.3af and 802.3at PoE network standards, this midspan is compatible with a variety of network needs. Once installed, users benefit from a single Gigabit Ethernet network port with support for both EIA 568 A and EIA 568 B network standards. - Offers up to 95W of power over 4-pairs
- PoH, IEEE802.3at and 802.3af compliant
- Supports plug-and-play installation
UPC: 844117001969 In the Box Microsemi PD-9601G 1-Port 95W Gigabit PoH Midspan Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Microsemi PD-9601G 1-Port 95W Gigabit PoH Midspan in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMicrosemi PD-9601G/AC Specs Number of Ports | 1 | Pass Through Data Rates | 10/100/1000 Mb/s | Output Power | Pin Assignment and Polarity Data Pairs 1/2 (-) and 3/6 (+) Spare Pairs 7/8 (-) and 4/5 (+) Output Power Voltage 54-57 VDC User Port Power 95 W guaranteed | Input Power Requirements | AC Input Voltage 100 to 240 VAC AC Input Current 1.8 A @ 100-240 VDC AC Frequency 50 to 60 Hz | Indicators | System Indicator AC Power (Green) Channel Power Indicators Green: Power delivered over 4 pairs Yellow: Power delivered over 2 pairs | Connectors | Shielded RJ-45, EIA 568 A and 568 B | Temperature & Humidity | Operating Ambient Temperature 14 to 113°F / -10 to 45°C Operating Humidity Maximum 90%, non-condensing Storage Temperature -4 to 158°F / -20 to 70°C Storage Humidity Maximum 95%, non-condensing Operating Altitude -1000 to 10,000 ft / -304.8 to 3048 m | Reliability | MTBF: 100,000 hours @ 77°F / 25°C | Thermal Rating | 80 BTU/hour | Regulatory | IEEE 802.3af (PoE, PoH Type 1) IEEE 802.3at PoE+, PoH twin Type 2, PoH twin Type 3 (95 W), RoHS Compliant, WEEE Compliant, CE | Certifications and Compliance | Electromagnetic Emission & Immunity FCC Part 15, Class B EN 55022 Class B (Emissions) EN 55024 (Immunity), VCCI Safety Approvals UL/cUL Per EN 60950-1 GS Mark Per EN 60950-1 | Dimensions | 3.46 x 1.68 x 6.53" / 87.9 x 43.0 x 166.0 mm | Weight | 0.881 lb / 400 g | | Package Weight | 1.685 lb | Box Dimensions (LxWxH) | 9.45 x 4.3 x 3.85" |
