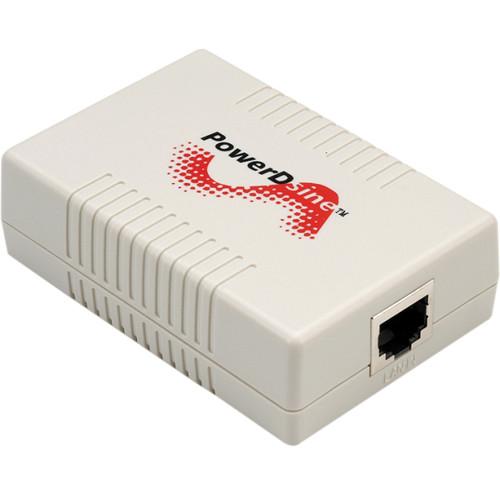

Product description The Microsemi PowerDsine PD-AS-601/5 Power Over Ethernet Active Splitter converts standard 48V to 5V to match terminal specifications. It is designed to deploy non-PoE devices using Power over Ethernet. It is compatible with all of Microsemi's Midspans, and can be used to power devices consuming up to 10W at 5V, through a traditional DC barrel connector. The PD-AS-601/5 comes with two round jacks, a 3.4x1.35mm and 5.5x2.5mm. UPC: 844117000818 In the Box Microsemi PD-AS-601/5 Power Over Ethernet Active Splitter (5V) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Microsemi PD-AS-601 5 Power Over Ethernet Active Splitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMicrosemi PD-AS-601/5 Specs | Connectors | 2 x RJ-45, shielded, EIA 568A and 568B
DC Jack O.D x I.D = 5.5 x 2.5 mm
DC Jack O.D x I.D = 5.5 x 3.3 x 1 mm
| | Ethernet Support | 10/100-Base-T | | Electrical | Pin Assignment & Polarity: 3/6 (+),1/2 (-) or 4/5 (+),7/8 (-) Voltage: 48 VDC
Input power: 13.5 W max
Output power: 10 W max
Output current: 2 A@5 V; 0.8 A@12 V
| | Indicators | Power Indicator: Green LED | | Reliability | MTBF: 100,000 hours @ 77°F (25°C) | | Compatibility | IP Cameras:- Axis
- Sony
- Panasonic
- Canon
- Bosch
- Philips
- JVC
| | Certificates | Emissions & Immunity:
FCC Part 15 Class A
EN55022 (CISPR 22) Class A
EN55024 (CISPR 24)
CE
RoHS
| | Input Ports | 1 x RJ-45 10/100Base-TX | | Output Ports | 1 x RJ-45 10/100Base-TX | | Environmental | Operating Temp.: 32 to 104°F (0 to 40°C)
Storage Temp.: -4 to 158°F (-20 to 70°C)
Operating Humidity: 10 to 90%, non-condensing
Storage Humidity: 5 to 95%, non-condensing
Thermal Rating: 11 BTU/Hr (@ 5/12 V)
| | Dimensions | 1.0 x 2.2 x 3.2" (24.7 x 55.0 x 80.8 mm) | | Weight | 3.53 oz (100.07 g) |
