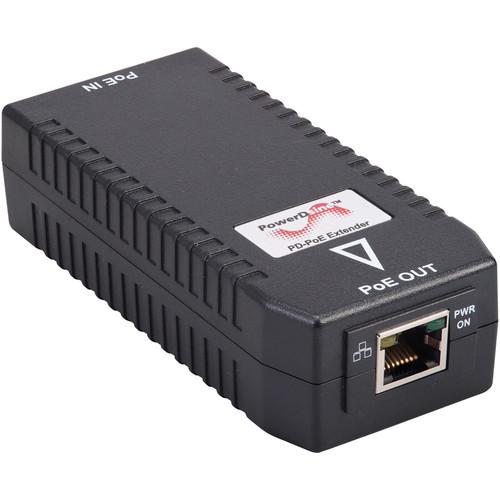

User Manual for Microsemi PD-PoE 1-Port High Power PoE Extender Click to enlarge the picture
Contents of the user manual for the Microsemi PD-PoE 1-Port High Power PoE
- Product category: Ethernet Extenders Microsemi
- Brand: Microsemi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Microsemi Ethernet Extenders
|
User manual for the Microsemi PD-PoE 1-Port High Power PoE contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Microsemi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Microsemi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Microsemi product will considerably shorten its lifespan!
|
Product description The PD-PoE 1-Port High Power PoE Extender from Microsemi is used to extend your Ethernet network range an additional 328' by acting as a pass-through device with data-repeating capabilities. The extender has both a PD and a PSE chip inside which makes it capable of reliably transmitting both data and power to network devices such as WLAN access points and network cameras. The transmission is possible for up to a distance of 656' while complying with IEEE PoE and data standards. Four Microsemi PoE extenders can be cascaded to reach up to 1640' from the closest datacenter or network, so you can easily install WLAN APs, IP cameras, and access controllers where you need them. It supports 10/100/1000 Mb/s data rates and delivers 802.3at power levels up to 25.5W. The PoE extender does not require local power since it is directly powered via the PoE input. -
- Extend PoE installation range by additional 328’ using standard CAT5 or better Ethernet cable
- Supports 10/100/1000 Mb/s data rates
- Provides 802.3af power levels when powered by any 802.3at source
- Provides 802.3at power levels when powered by PD-9500G Midspans
- Provides up to 25W of PoE @ 656’
- Four extenders can be cascaded to reach up to 1640’
- Local power is not required
- Plug and play installation — no configuration needed
UPC: 844117001310 In the Box Microsemi PD-PoE 1-Port High Power PoE Extender Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Microsemi PD-PoE 1-Port High Power PoE Extender in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMicrosemi PD-POE-EXTENDER Specs | Pass Through | 10/100/1000 Mb/s | | PoE | Pin Assignment and Polarity: 3/6 (+), 1/2 (-)
Output Power Voltage: 45 to 55 VDC | | Input Power Requirement | PoE, supports alternatives A and B
DC Input PoE Voltage: 46 to 57 VDC
Maximum Input Current: 0.7 A | | Indicators | System Indicator: DC power input/output (green)
Ethernet data input/output (orange) | | Total Available Power | @ 656' (200 m)
25.5 W (802.3at PD) using 4-pairs IEEE802.3at PSE (60 W) (e.g., PD-95xx Series)
12.95 W (802.3af PD) using IEEE802.3at PSE (30 W) (e.g., PD-90xx Series)
12.3 W (802.3af Class 2 PD) using IEEE802.3af PSE (15.4 W) (e.g., PD-35xx, PD-65xx Series) | | Connectors | Shielded RJ-45 female socket | | Reliability | MTBF: 150,000 hours @ 77°F (25°C) | | Thermal Rating | 17 BTU per hour @full load | | Regulatory Compliance | IEEE802.3at (PoE), RoHS compliant, WEEE compliant, CE | | Electromagnetic Emissions & Immunity | FCC part 15, class B; EN 55022 class B (emissions); EN 55024 (immunity), VCCI | | Safety Approvals | UL/cUL per EN 60950, GS mark per EN 60950 | | Environmental Conditions | Operating Ambient Temperature:
32 to 104°F (0 to 40°C) (1G rate)
32 to 122°F (0 to 50°C) (10/100M rate)
Operating Humidity:
Maximum 90%, non-condensing
Storage Temperature:
-4 to 158°F (-20 to 70°C)
Storage Humidity:
Maximum 95%, non-condensing | | Dimensions | 4.3 x 2.0 x 1.2" (11.0 x 5.0 x 3.0 cm) | | Weight | 3.5 oz (100 g) | | | | Package Weight | 0.27 lb | | Box Dimensions (LxWxH) | 5.1 x 2.3 x 1.5" |
