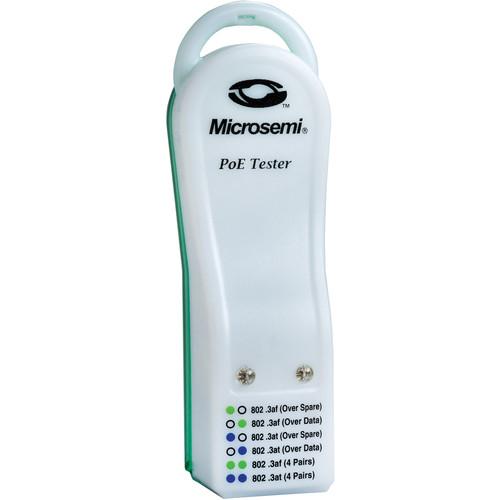

User Manual for Microsemi PoE AF AT Tester Click to enlarge the picture
Contents of the user manual for the Microsemi PoE AF AT Tester
- Product category: Network Accessories Microsemi
- Brand: Microsemi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Microsemi Network Accessories
|
User manual for the Microsemi PoE AF AT Tester contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Microsemi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Microsemi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Microsemi product will considerably shorten its lifespan!
|
Product description The PoE AF/AT Tester from Microsemi accepts an RJ45 connector and tests the cabling infrastructure for the presence of power from either IEEE802.3af or IEEE802.3at sources. It also identifies the existence and type of power sourcing equipment (PSE) from either endspan or midspan in your network. This tester works over Cat5 or better cable and two- or four-pair cable. - Tests RJ45 outlet and cabling for PoE
- Works over Cat5 or better
- Detects IEEE802.3af and IEEE802.3 endspans, midspans and switches
- Detects Cisco pre-standard inline switches
- Detects power over two- or four-pair cable
UPC: 844117000375 In the Box Microsemi PoE AF/AT Tester Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Microsemi PoE AF AT Tester in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMicrosemi PD-AFAT-TESTER Specs | Input | RJ45 | | Indicators | Green and blue LEDs | | Input Voltage | 37-57 VDC | | Ambient Operating Temperature | 32 to 104°F (0 to 40°C) | | Operating Humidity | Maximum 90% (non-condensing) | | Storage Temperature | -4 to 158°F (-20 to 70°C) | | Storage Humidity | Maximum 95% (non-condensing) | | Dimensions (H x W x L) | 0.87 x 0.94 x 3" (2.2 x 2.4 x 7.6 cm) | | Weight | 0.5 oz (15 g) | | | | Package Weight | 0.045 lb | | Box Dimensions (LxWxH) | 3.3 x 1.05 x 1.0" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 79 owners. Add your rating and experience with the product.
