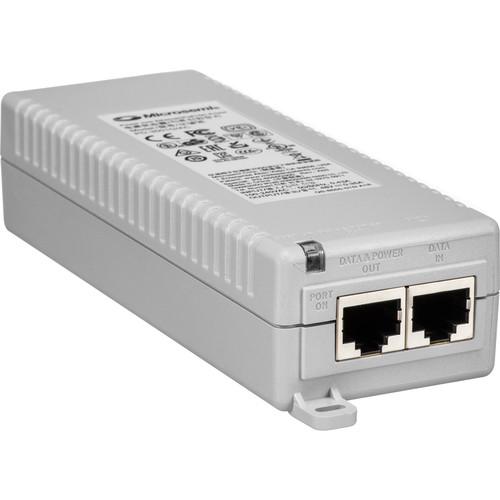

User Manual for Microsemi PowerDsine PD-3501G 1-Port 802.3af Gigabit Power Over Ethernet Midspan Click to enlarge the picture
Contents of the user manual for the Microsemi PowerDsine PD-3501G 1-Port 802.3af Gigabit
- Product category: Power over Ethernet (PoE) Microsemi
- Brand: Microsemi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Microsemi Power over Ethernet (PoE)
|
User manual for the Microsemi PowerDsine PD-3501G 1-Port 802.3af Gigabit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Microsemi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Microsemi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Microsemi product will considerably shorten its lifespan!
|
Product description Supporting up to 15.4 watts of power, the PowerDsine PD-3501G 1-Port Gigabit Power Over Ethernet Midspan from Microsemi is designed to power a variety of 802.3af PoE-compliant devices, such as VoIP equipment, access points, IP cameras, and more. Plug-and-play installation makes it easy to setup and configure this midspan without disturbing existing network components, and the midspan can even be stacked to help save space. - Safe & reliable power over existing Ethernet infrastructure
- Cisco and legacy PoE support (dongles required)
- Plug-and-play installation
UPC: 844117001389 In the Box Microsemi PowerDsine PD-3501G 1-Port 802.3af Gigabit Power Over Ethernet Midspan (15.4W) Limited 1-Year Manufacturer Warranty Brochure PDF 669.9kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Microsemi PowerDsine PD-3501G 1-Port 802.3af Gigabit Power Over Ethernet Midspan in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMicrosemi PD-3501G/AC Specs | Number of Ports | 1 | | Data Rates | 10/100/1000 Mb/s | | PoE | Pin Assignment and Polarity: 4/5 (+), 7/8 (-)
Output Power Voltage: 48 VDC
User Port Power: 15.4 W (guaranteed) | | Input Power | AC Input Voltage: 90 to 264 VAC
AC Input Current: 0.5 A @ 110 to 240 VAC
AC Frequency: 47 to 63 Hz | | Indicators | User Indicator: Channel power (green) | | Connectors | Shielded RJ45, EIA 568A, and 568B | | Reliability MTBF | 100,000 hours @ 77°F (25°C) | | Thermal Rating | 13 BTU per hour (@ 240 VAC) | | Regulatory | IEEE 802.3af (PoE), RoHS compliant, WEEE compliant, CE | | Electromagnetic Emissions & Immunity | FCC Part 15, class B; EN 55022 class B; EN 55024, VCCI | | Safety Approvals | UL/cUL per EN 60950-1; GS Mark Per IEC 60950-1 | | Environmental Conditions | Operating Ambient Temperature: 32 to 104°F (0 to 40°C)
Operating Humidity: Maximum 90% non-condensing
Storage Temperature: -4 to 158°F (-20 to 70°C)
Storage Humidity: Maximum 95% non-condensing
Operating Altitude: -1,000 to 10,000' (-304.8 to 3048 m) | | Dimensions (W x H x L) | 2.09 x 1.28 x 5.50" (5.30 x 3.25 x 14.0 cm) | | Weight | 7.05 oz (200.0 g) | | | | Package Weight | 0.9 lb | | Box Dimensions (LxWxH) | 8.3 x 4.6 x 2.2" |
