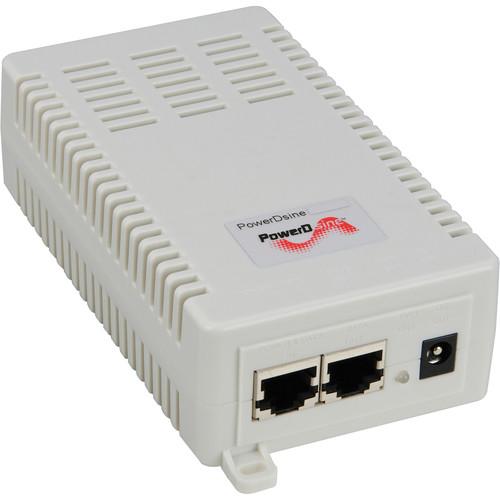

User Manual for Microsemi PowerDsine PD-AS-951 12-24 4-Pairs High PoE Active Splitter Click to enlarge the picture
Contents of the user manual for the Microsemi PowerDsine PD-AS-951 12-24 4-Pairs High
- Product category: Power over Ethernet (PoE) Microsemi
- Brand: Microsemi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Microsemi Power over Ethernet (PoE)
|
User manual for the Microsemi PowerDsine PD-AS-951 12-24 4-Pairs High contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Microsemi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Microsemi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Microsemi product will considerably shorten its lifespan!
|
Product description The Microsemi PowerDsine PD-AS-951/12-24 4-Pairs High PoE Active Splitter enables data terminals that were not originally designed to accept power from the Ethernet to be powered by PoE midspans. Using this high power splitter, devices that do not natively accept PoE power can be made PoE-ready without any modification of the terminals. Moreover, such devices may also accept lower power than standard PoE output (44V in IEEE802.3af / 50V in 802.3at). The unit physically splits the data and power streams arriving over a single cable into two separate cords (LAN & DC), which go directly to the data and power terminals of non-PoE-ready legacy devices. It also regulates the voltage to the 12/18V (user-selectable) level that is accepted by the DC terminal on the device. The PD-AS-951 high power splitter can power devices such as WiMAX CPEs, small WiMAX base-stations, 802.11ac access points, thin clients, PTZ (Pan/Tilt/Zoom) IP cameras, video phones, and more. - Enables fast and easy integration of Power over Ethernet technology into legacy equipment
- Power conversion from 48 to 12/24 VDC switchable output over 4-pairs cable
- Physically separates the combined data and power lines into two distinctive lines (DC power and LAN) for connection to the Ethernet device's terminals
- Saves installation time and allows the benefits of using one central source to power all the IP devices in the network
- Simplifies the modification of a device to make it PoE ready by eliminating the need to modify terminals
- Short circuit protection to ensure safety from erroneous connections
- Non-metallic case and internal floating power source protect the device from ground loop currents and allows two adjacent devices to share the same power source and be placed near each other
- Suitable for use with the PD-9500G family of midspans
- Can be mounted on walls or ceilings via mounting ears
UPC: 844117001198 In the Box Microsemi PowerDsine PD-AS-951/12-24 4-Pairs High PoE Active Splitter (12/24 VDC Switching Output) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Microsemi PowerDsine PD-AS-951 12-24 4-Pairs High PoE Active Splitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMicrosemi PD-AS-951/12-24 Specs | Connectors | 2 x RJ-45, shielded, EIA 568A and 568B
DC Jacks:
On Unit: O.D x I.D = 2.5 x 6.4 mm
Ext. Cable #1: O.D x I.D = 5.5 x 2.5 mm
Ext. Cable #2: O.D x I.D = 3.4 x 1.4 mm | | Data Rate | 10/100/1000 Mb/s | | Pin Assignments | 3/6 (+),1/2 (-) or 4/5 (+),7/8 (-) | | Input Voltage | 44 to 57 VDC | | Input Power | 70 W, maximum | | Output Voltage | 12/24 VDC switching | | Output Power | 54 W, maximum | | Output Current | 5 A @ 12 VDC; 2.5 A @ 24 VDC | | Indicators | Output Power Indicators: Green LED (4-pairs), yellow LED (2-pairs) | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -4 to 158°F (-20 to 70°C) | | Operating Humidity | 10 to 90%, non-condensing | | Storage Humidity | 5 to 95% non-condensing | | Electromagnetic Emissions & Immunity | FCC Part 15 Class A
EN55022 (CISPR 22), Class A
EN55024 (CISPR 24) | | Regulatory Compliance | CE | | Thermal Rating | 38 BTU/hour | | Reliability MTBF | 100,000 hours @ 77°F (25ºC) | | Compatible with | Microsemi PD-9500G family of high-power midspans | | Dimensions (H x W x D) | 1.49 x 5.12 x 2.87" (38 x 130 x 73 mm) | | Weight | 10.1 oz (285 g) | | | | Package Weight | 0.95 lb | | Box Dimensions (LxWxH) | 7.8 x 3.7 x 1.9" |
