Product description

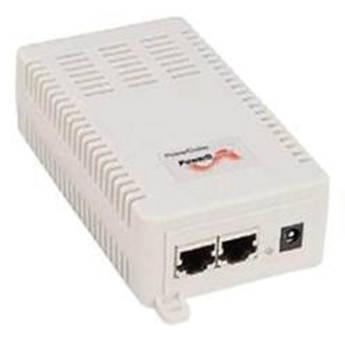

The Microsemi PowerDsine PD-AS-951/18 4-Pairs High PoE Active Splitter enables data terminals that were not originally designed to accept power from the Ethernet to be powered by PoE midspans. Using this high power splitter, devices that do not natively accept PoE power can be made PoE-ready without any modification of the terminals. Moreover, such devices may also accept lower power than standard PoE output (44V in IEEE802.3af / 50V in 802.3at). The unit physically splits the data and power streams arriving over a single cable into two separate cords (LAN & DC), which go directly to the data and power terminals of non-PoE-ready legacy devices. It also regulates the voltage to the 18V level that is accepted by the DC terminal on the device. The PD-AS-951 high power splitter can power devices such as WiMAX CPEs, small WiMAX base-stations, 802.11ac access points, thin clients, PTZ (Pan/Tilt/Zoom) IP cameras, video phones, and more.
  • Enables fast and easy integration of Power over Ethernet technology into legacy equipment
  • Power conversion from 48 to 18 VDC output over 4-pairs cable
  • Physically separates the combined data and power lines into two distinctive lines (DC power and LAN) for connection to the Ethernet device's terminals
  • Saves installation time and allows the benefits of using one central source to power all the IP devices in the network
  • Simplifies the modification of a device to make it PoE ready by eliminating the need to modify terminals
  • Short circuit protection to ensure safety from erroneous connections
  • Non-metallic case and internal floating power source protect the device from ground loop currents and allows two adjacent devices to share the same power source and be placed near each other
  • Suitable for use with the PD-9500G family of midspans
  • For indoor use
  • Can be mounted on walls or ceilings via mounting ears
  • RoHS conformant, Pb free
In the Box Microsemi PowerDsine PD-AS-951/18 4-Pairs High PoE Active Splitter (18 VDC Output)
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Microsemi PowerDsine PD-AS-951 18 4-Pairs High PoE Active Splitter in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Microsemi PD-AS-951/18 Specs

    LAN Interface RJ45, 10/100/1000Base-T
    DC Out Barrel Connector: 3.4 x 1.35 mm
    Internal Pole: Positive (+) VDC; External Pole: Negative (-) VDC
    Input Voltage 42 to 57 VDC
    Input Current 720 mA, maximum for each pair
    Output Voltage 18 VDC
    Output Current Peak: 3.3 A
    Continuous: 3 A
    Output Power Peak: 60 W maximum
    Continuous: 54 W maximum
    Operating Temperature 32 to 104°F (0 to 40°C)
    Storage Temperature -4 to 158°F (-20 to 70°C)
    Humidity 10 to 90%, non-condensing
    Certifications EMC (EN55024), RoHS
    Compatible with Microsemi PD-9500G family of high-power midspans
    Material Plastic
    Dimensions (H x W x D) 1.49 x 2.87 x 5.12" (38 x 73 x 130 mm) excluding mounting ears (10 mm)
    Weight 10.1 oz (285 g)
